Product Details
Brand Name: | ZHONGTUO | Place of Origin: | China | Type: | Core Drilling Rig |
Certification: | SGS | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Power Type: | Diesel | Usage: | Coal | Condition: | New |
Product Description

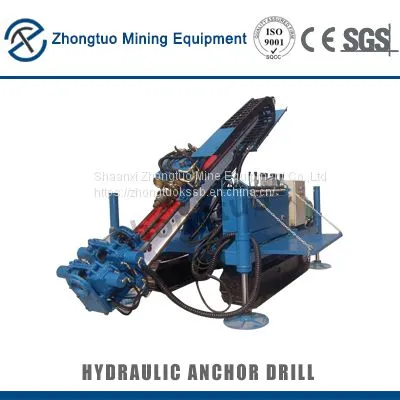

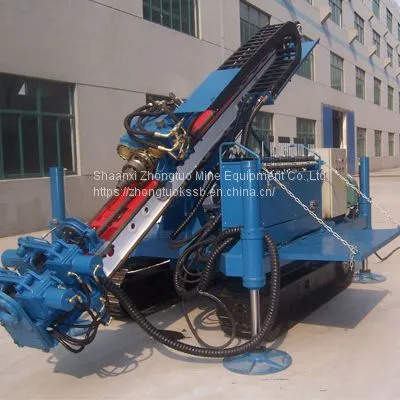

Description of crawler mounted anchor drilling:
1. Drilling rig is a kind of full hydraulic power head multifunctional crawler drilling rig. It can apply to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity for landslide prevention and rock collapse. Its drilling diameter is 150-250mm, and drilling depth 100-140m.
2. This multifunctional drilling rig is applicable to deep foundation anchoring support. By altering jet grouting module, the 135G anchor drilling rig can be used for jet grouting construction.
3. In addition, this anchor crawler drilling rig is stable, efficient , and able to drill complex layers and deal with accidents.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work..
5. The anchor drilling machine is an integral type, and is equipped with crawler chassis and holding shackle.
Quick Detail of Crawler Mounted Anchor Drilling Rig:
1. Hydraulic anchor drill is a kind of full hydraulic power head multifunctional crawler drilling rig. It can apply to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity for landslide prevention and rock collapse. Its drilling diameter is 150-250mm, and drilling depth 100-140m.
2. This multifunctional Small-sized drilling rig is applicable to deep foundation anchoring support. By altering jet grouting module, the 135G anchor drilling rig can be used for jet grouting construction.
3. The anchor drilling machine is an integral type, and is equipped with crawler chassis and holding shackle.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
Specifications of Crawler Mounted Anchor Drill:
Hole depth | 60-120m | |
Rod diameter | 110-250mm | |
Hole angle(°) | -1-90° | |
Output rotary speed of power head | 10,20,36,48,,75,100r/min | |
Stroke of power head | 1800mm | |
Output torque of power head | 5500N.m | |
Lifting force of power head | 65KN | |
Feeding force of power head | 33 kN | |
Power | Electric motor: | 37+1.5+0.25 |
Weight | 3000KG | |
Dimensions (L×W×H) | 3400×650×1500mm |
Applications:
1. Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
2. Jet grouting and dewatering.
3. This engineering drill rig can be used for drilling geothermal hole.
