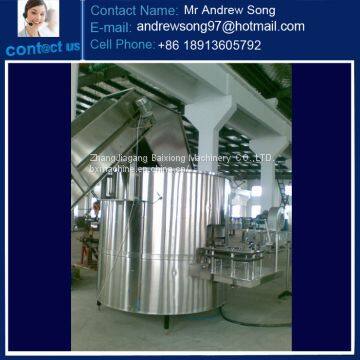

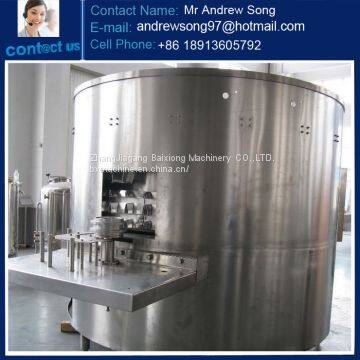

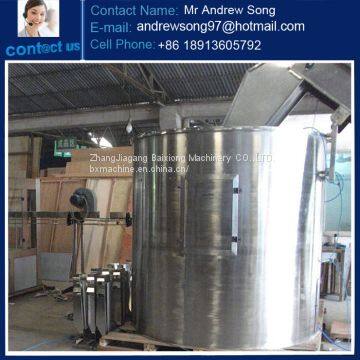

Full Automatic pet Bottle Unscrambler Machine/Sorter

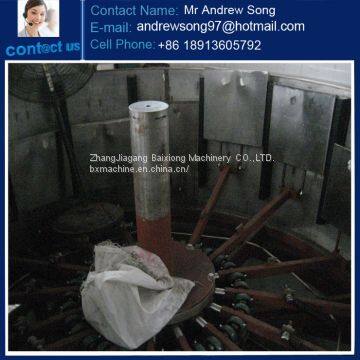

The machine is used in ordering disordered polyeter bottles, the disordered bottles are carried into the storing bottle Section of the ordering bottle machine, with the help of the pushing force of the rotating disk, the bottle are ordered into Bottle mouth-up-position and are carried into the next process with the air-transfering type conveying bottle system.
High speed operatin, easy to combine with all kinds of filler or filling prodution line.
Specifications:
1) Suitable for unscrambling disordered polyester bottles
2) Aligns bottles and discharges them by vacuum conveyor
3) PLC program controlled
4) Automatic.
5) High speed operation
6) Easy to combine with all kinds of fillers or filling production lines
Technical parameters:
| Model | LP-1 |
LP-2 | LP-3 |
Production capacity(bph) |
8000-12000 |
12000-18000 |
18000-30000 |
The pressure of gas source(Mpa) |
0.7 |
0.7 |
0.7 |
Gas Volume(m3/min) |
0.5 |
0.6 |
0.7 |
Power(kw) |
2.2 |
4.4 | 5.5 |
To adapt to bottle-type(mm) |
Bottle DriveΦ50-Φ90,Bottles of high -150-290 |
||
Dimensions(mm) |
Φ2500*2660*2000 |
Φ2650*3300*2200 |
Φ3710*4660*2390 |
Machine weight(kg) |
3500 |
4000 | 6000 |
