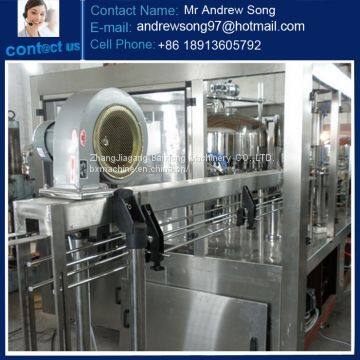

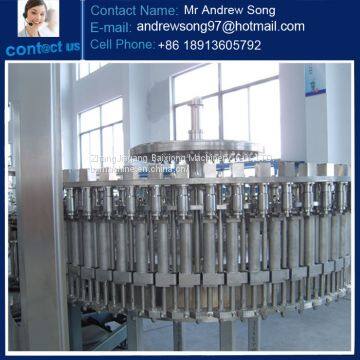

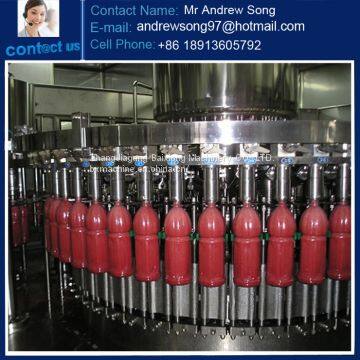

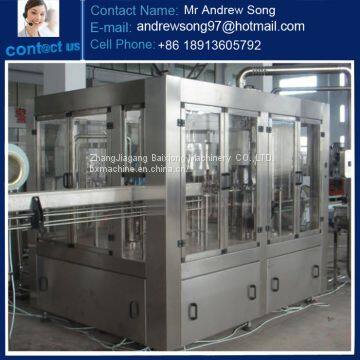

Help CenterFruit Juice Beverage Hot Filling 3-In-1 Monobloc Machine,filling Machine,beverage Filling Machine.bottling Machine
Related Products
-
Glass Bottle Juice Filling 3-In-1 Unit Machine,juice Filling Machine,tea Filling Machine,bottling MachineUS$ 15000 - 55000MOQ: 1 Piece -
Juice Beverage Packing Machine Producing LineUS$ 15000 - 55000MOQ: 1 Piece
-
Juice Making Machine Producing LineUS$ 15000 - 55000MOQ: 1 Piece
-
Glass Bottle Bottling Machine/Line For Juice DrinksUS$ 15000 - 55000MOQ: 1 Piece
-
Juice Filling Machine in Plastic Bottle in Zhangjiagang CityUS$ 15000 - 55000MOQ: 1 Piece
The series equipment is used for hot filling and sealing of green tea, black tea, wulong tea and fruit juice. The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.
This series machine is adopt block bottle-neck hanging work state design, and be adopt filling valve rise-drop design, It's be satisfy for 95 degree hereinafter hot filling technology demand. It's adopt person-machine interface touch-screen, PLC, transducer etc advanced control technology. It's osculant the drink material parts are adopt the SUS304 stainless steel, The machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element etc are adopt famous international manufactruer products.
| Model | RCGF16-12-6 | RCGF16-16-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 |
| production capacity(500ml bph) | 2000-3000 | 3000-4000 | 4000-5000 | 5000-8000 | 8000-10000 |
| filling precision | 1%(liquid level) |
||||
| polyester bottle standard(mm) | bottle diameter:50-100 height:150-310 |
||||
| suitable cap shape | plastic screw cap |
||||
| Gas consumption(M3/min) | 0.1 | 0.1 | 0.4 | 0.4 | 0.5 |
| Power(kw) | 2.2 | 2.2 | 3.75 | 5.6 | 6.2 |
| Weight(kg) | 2200 | 2800 | 3500 | 4500 | 6000 |
| dimensions(L*W*H)(mm) | 2350*1610*2250 | 2350*1750*2250 | 2480*1960*2250 | 3010*2180*2400 | 4000*2200*2500 |
