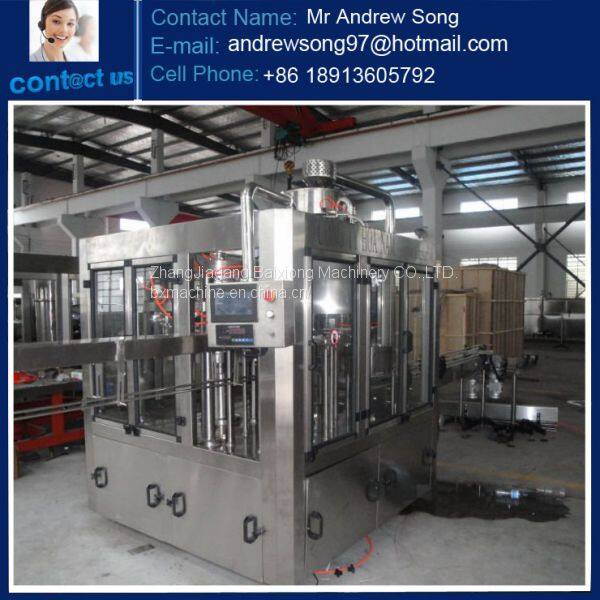

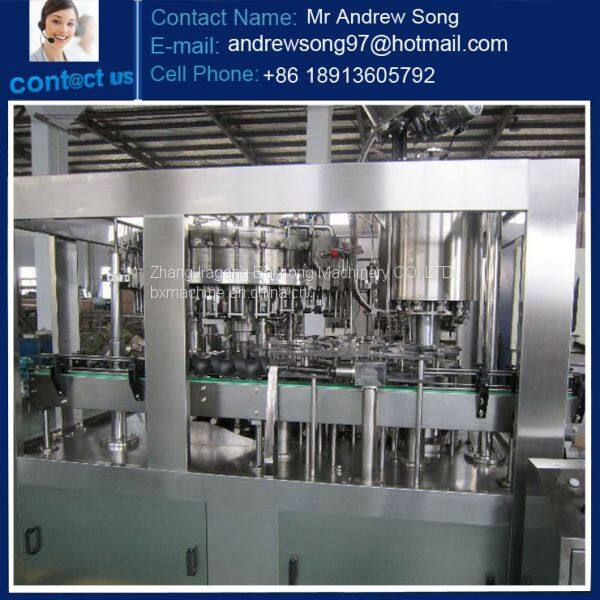

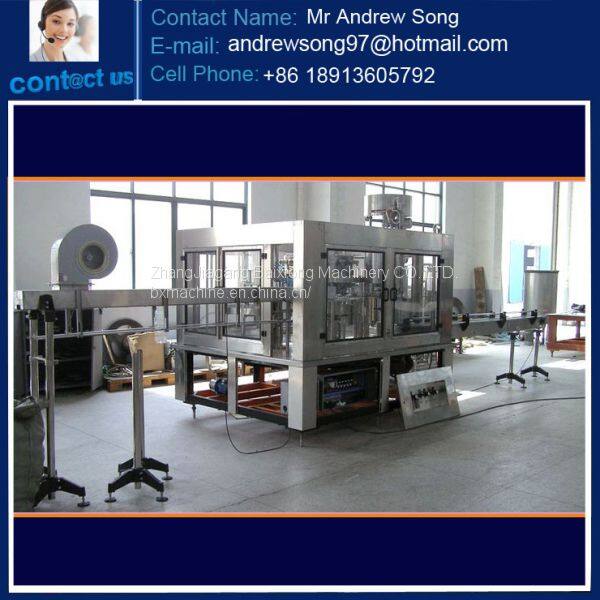

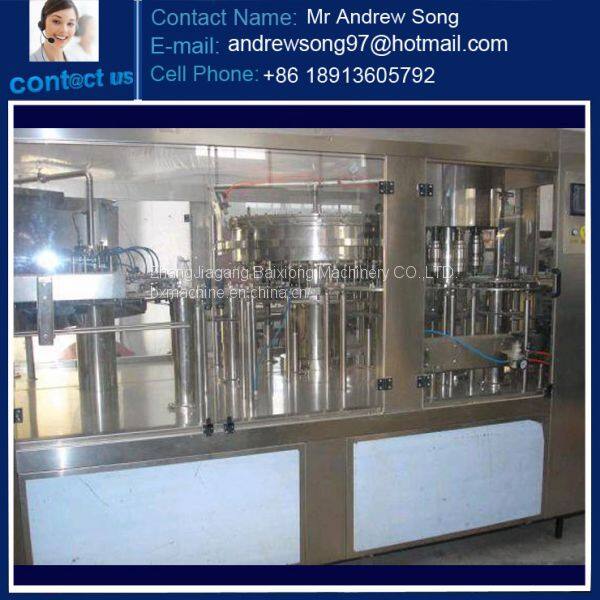

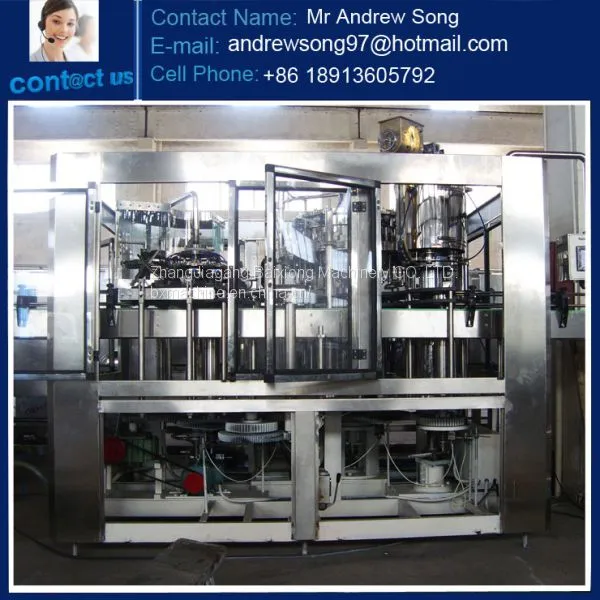

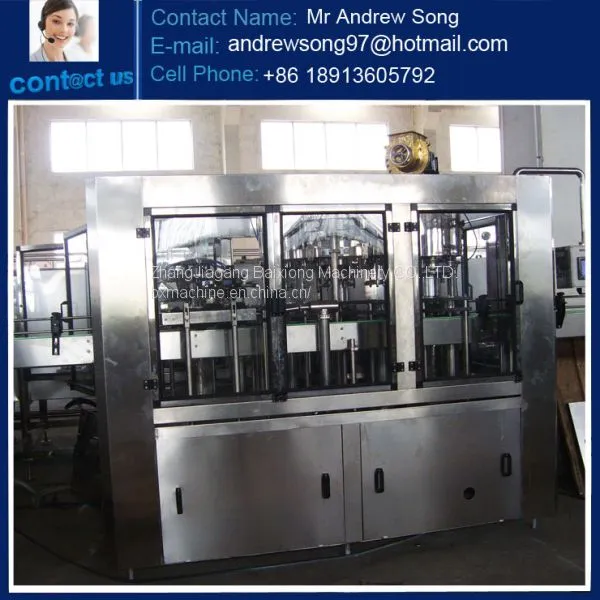

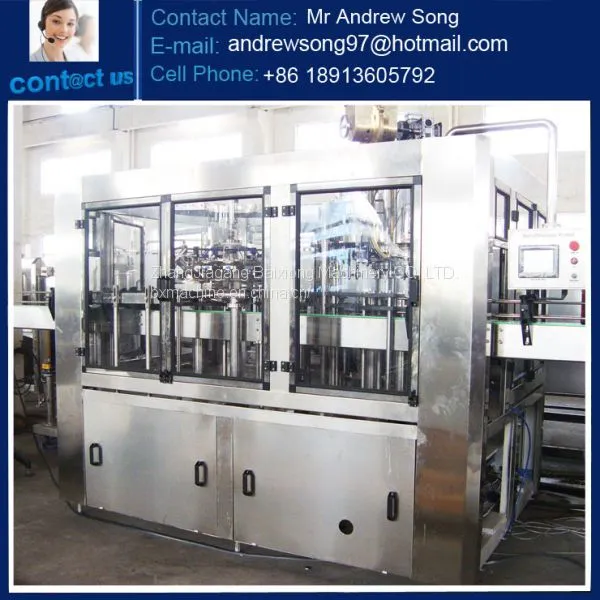

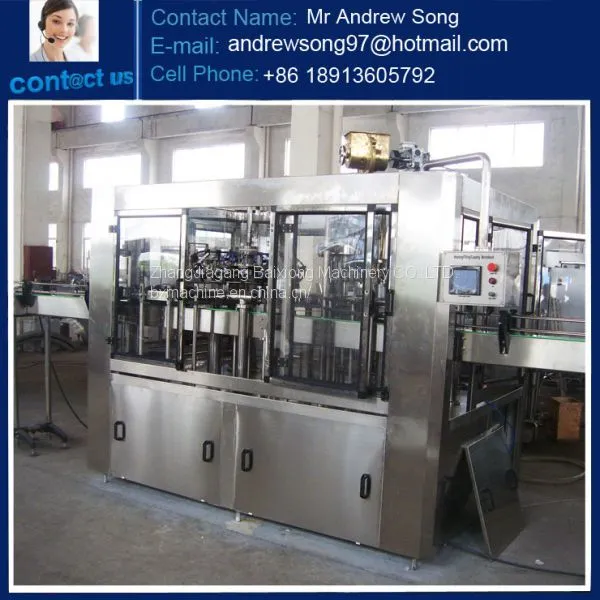

Complete Soda Water Processing Line For PET Bottle
Carbonated Soft Drink Filler --- Features
(1)This carbonated soft drink filler is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
(2) The carbonated soft drink filler is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 1200BPH to 12000BPH.
(3) The carbonated soft drink filler is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
(4) The machine adopts suspensory transmission gear, which can easily upkeep and be repaired.
(5) This carbonated soft drink filler's case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
(6) The carbonated soft drink filler uses frequency changer to control the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
(7) Human-machine interface touch-screen is adopted in the beverage filling machine. The liquid level in the tank can be controlled automatically. The filling and capping will stop automatically when there is not bottle.
(8) The carbonated soft drink filler has constant temperature circle system , temperature and circumfluence are controlled automatically.

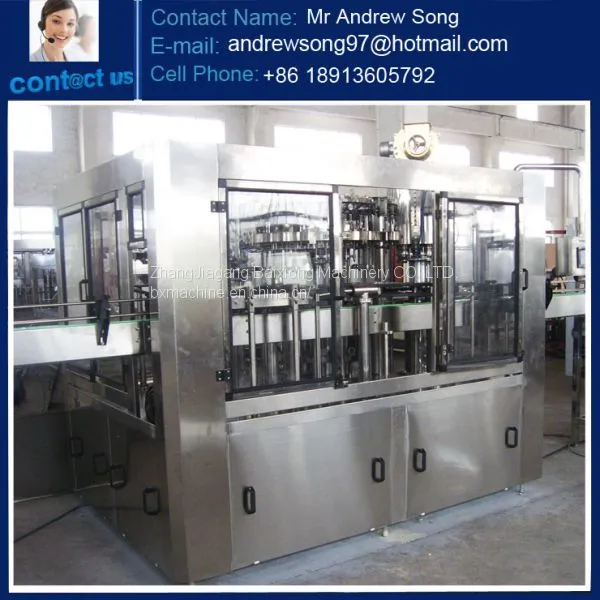

Complete Soda Water Processing Line For PET Bottle
Carbonated Soft Drink Filler --- Technical Parameters

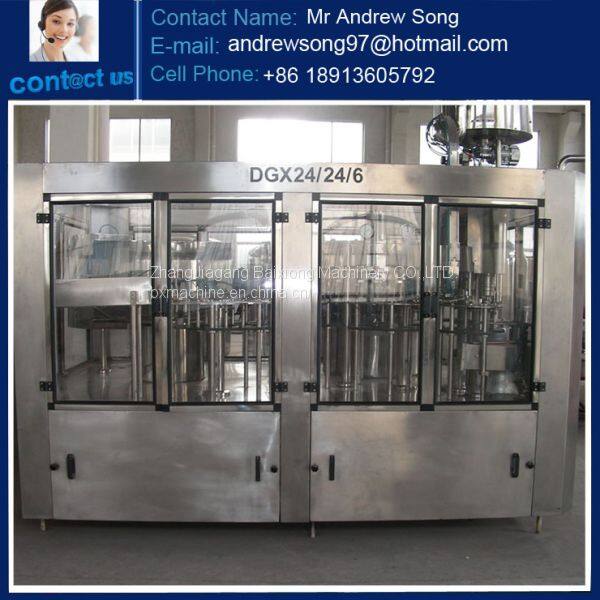

Model | CGFD8-8-3 | CGFD16-12-6 | CGFD18-18-6 | CGFD24-24-8 | CGFD32-32-10 | CGFD40-40-10 |
Washing No | 8 | 16 | 18 | 24 | 32 | 40 |
Filling No | 8 | 12 | 18 | 24 | 32 | 40 |
Capping No | 3 | 6 | 6 | 8 | 10 | 10 |
Production capacity(500ml b/h) | 1200-1500 | 2500 | 3500-4000 | 7000-7500 | 8000-10000 | 10000 |
Installed Capacity(kw) | 3 | 3.5 | 4 | 4.8 | 7.6 | 8.3 |
Overall size | 2250*1800*2400 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 |
