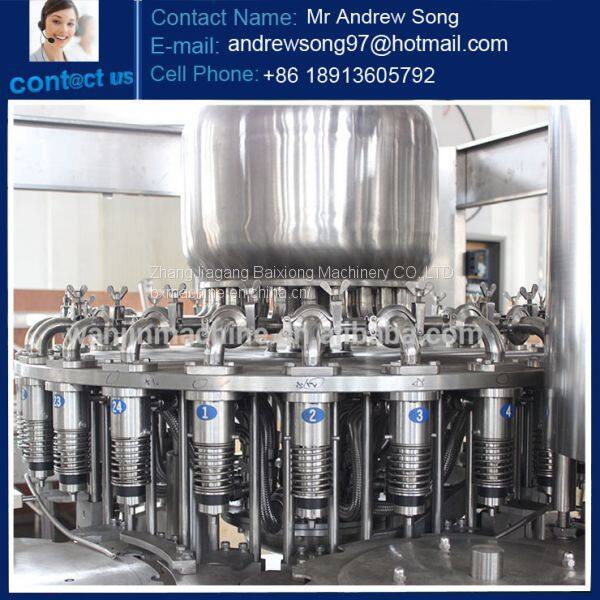

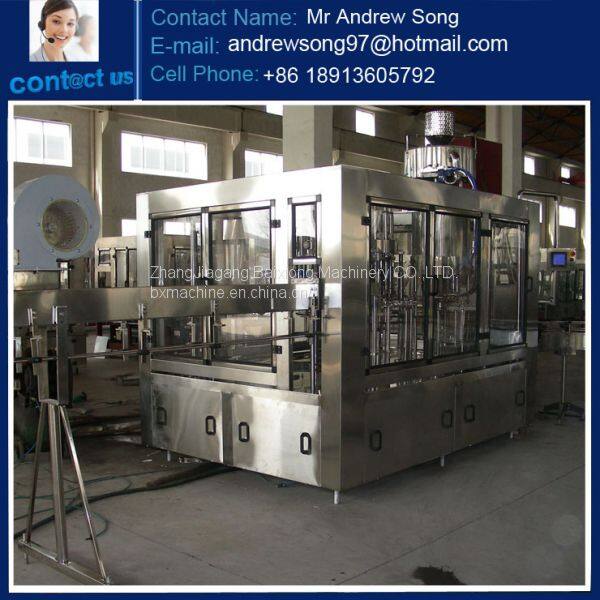

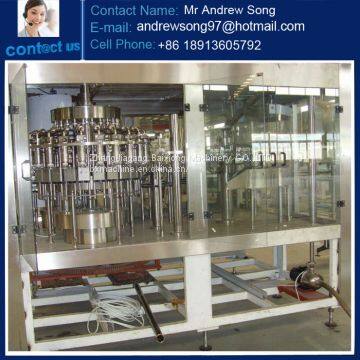

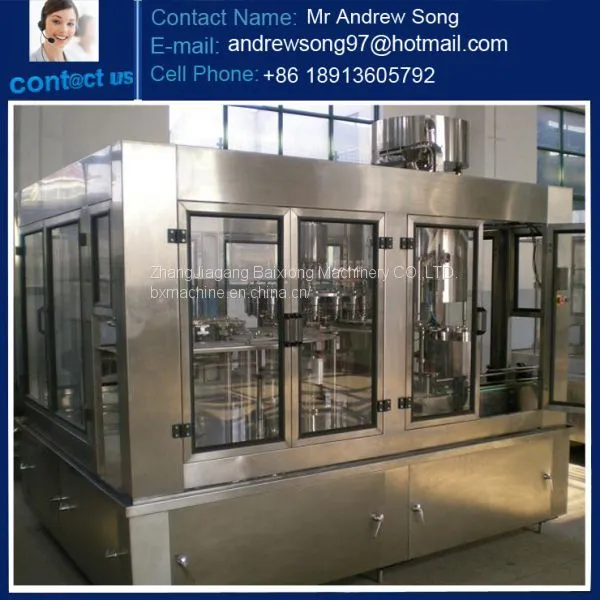

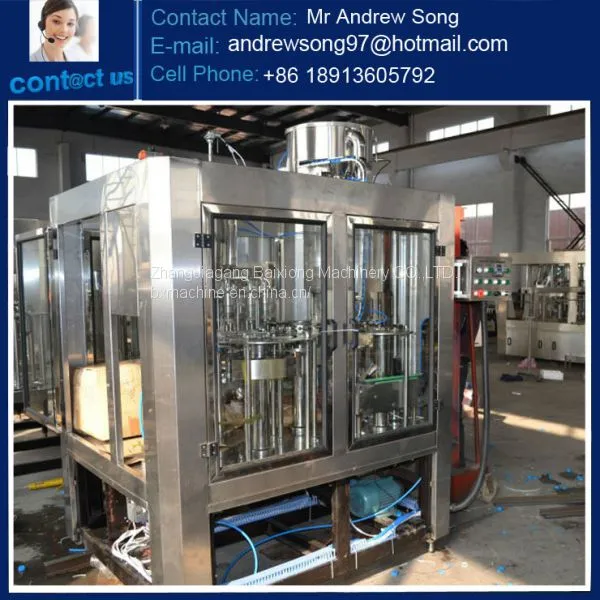

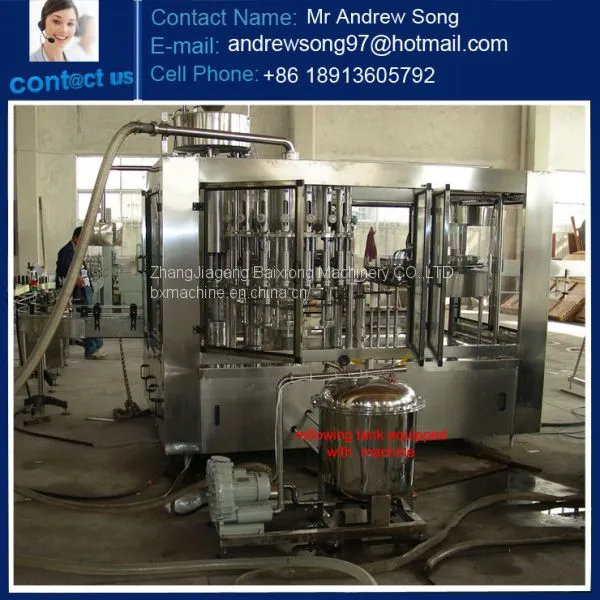

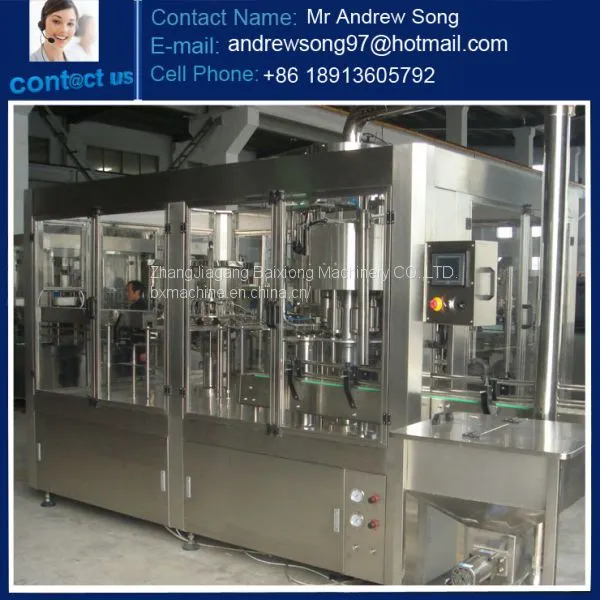

Juice Filling Machine -----introduction
1.The machine is mainly used for bottling juice ,such as apple juice ,mango juice,orange juice,and other fruit juice.It can also be used for bottling water ,such as pure water and mineral water.
2.The full automatic fruit juice filling machine include washing part ,filling part,and sealing part,all of the process is automatic.
3. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east.
4. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automaticly,
5. Transducer is uesd in bottle entering chains to adjust speed to make the operation of moving bottle steadily and reliably.
6. It is convenient to operate with higher auromation because everypart of the machine is inspected to run with photo electicity.
7.The machine can be produced acoording to your requiements,because we are professional beverage processing manufacture.
8. We can provide C.I.P. system
Main Models and technical parameters
Model | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-12 | RCGF40-40-12 | RCGF50-50-15 |
Production Capacity:500ml(B/h) | 5000 | 8000 | 12000 | 15000 | 18000 |
Suitable Bottle Types(mm): | Round or square square shaped bottle | ||||
PET Bottle Dimension: (mm) | Bottle diameter:50-110 Height :150-330mm | ||||
Suitable Cap Standard: | plastic screw Cap | ||||
Filling Pressure(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 |
Rinsing Precision:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
Installed Capacity:(L) | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Overall Size(mm)(L×W×H) | 2650x1900x2400 | 2900×2100×2400 | 4100×2400×2400 | 4550×2650×2400 | 5450x3210x2400 |
Total Weight: (kg) | 2800 | 3500 | 4200 | 5600 | 6500 |
