Help CenterCement Grinding Plant 1500TPD Clinker Grinding Station With Output of 500,000 Tons Per Year
Related Products
-
2,000,000 Tpa Cement Clinker Grinding Plant / Cement Milling StationNegotiableMOQ: 1 Set -
Cement Clinker Grinding Production Line With Capacity 1,000,000 Tpy PlantNegotiableMOQ: 1 Set
-
Rotary Kiln Process 1000 Tpd Limestone Calcination Production Line Quicklime PlantNegotiableMOQ: 1 Set
-
Rotary Kiln & Ball Mill Unit for 1500 ~ 6000 Tpd Cement Production LineNegotiableMOQ: 1 Set
-
Dry-Process 6.2*87m Rotary Kiln Cement Production Line With Daily Capacity 12,000 TPD Clinker Production PlantNegotiableMOQ: 1 Set

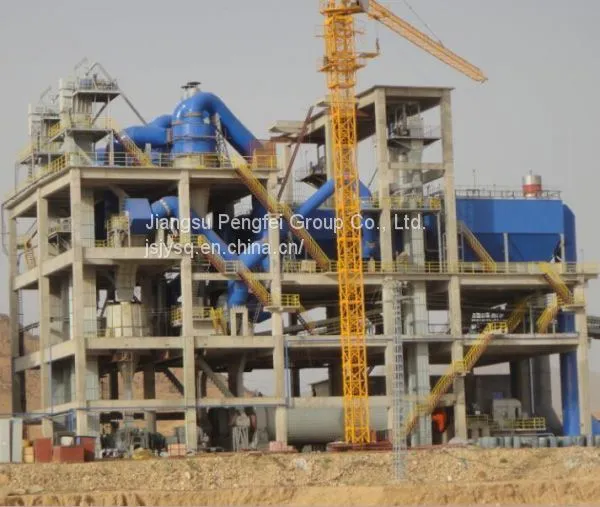

Jiangsu pengfei group undertakes the construction of 500,000tons per year cement grinding station, and Pengfei group was responsible for the process design, supplying the main equipments of grinding, separating, dust collecting, packing and other systems.
in the contract, it required that the specific surface area met 320 m2/kg, drying system for mixed materials is not separate, and drying and grinding integration mill was designed. this is the new challenge in product quality, production process or equipment structures.
Here in Jiangsu Pengfei Group Co., Ltd, one-stop service is available, including engineering design, construction, related equipment, assembly and debugging, technical service, and general contracting service. Besides, we have successfully finished many relevant engineering projects, like the construction of cement grinding plant with an annual output of 1-1.2 million tons, the building of cement grinding plant with 0.5-0.6 million tons' annual output, the construction of 0.2-0.3 million tons' annual output cement plant, and the building of plant with 0.1 million tons' annual output.
practice shows that the drying and grinding integration cement mill designed specially by jiangsu pengfei group entirely satisfied the requirements in the contract, so it successfully put into operation and acceptance, meanwhile received the good reputation from the owner.
process flow design of 1,000,000tons/year cement grinding plant:
1. designing of clinker grinding production line

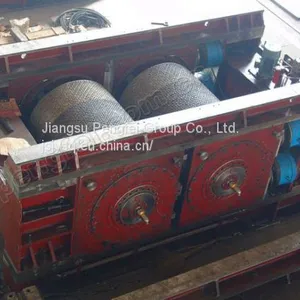

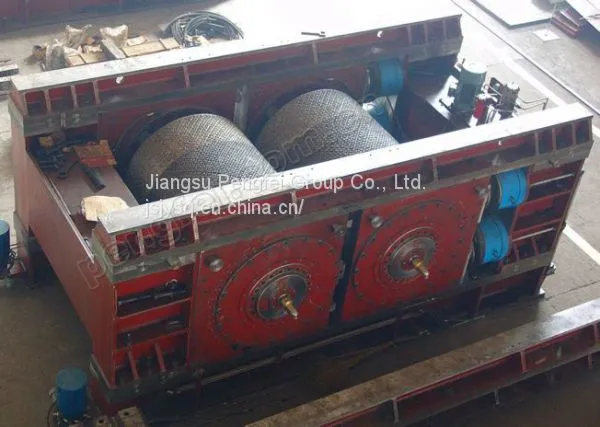

after gypsum, clinker and limestone are measured by the belt weigher, they will be mixed together in accordance with particular proportions, and then sent to the stable weighing warehouse. during this process, magnetic metals are removed by the iron remover from these materials. then mixed materials will be sent into the rolling machine to be crushed. after crushed, they will be sent to the powder separator, in which coarse powder will be sent back to the griding mill while the fine one will be sent to the elevator for finished products. finally, they will be sent to finished product storage. meanwhile, dusty gas from the grinding mill will be purified by the environmental protection equipment before discharged into the atmosphere.
2. design of slag grinding production line
gypsum, dry slag and pulverized coal are measured by the belt weigher before mixed together according to particular proportions. mixed materials will be sent to the mill for grinding, and during this process, iron remover is employed to remove magnetic metals in these materials. after grinded, fine powder will be sent to high-efficeint powder separator, while coarse powder will be sent back to the grinding mill. finished cement will be collected by the air tank pulse bag filter, while the fine powder will be sent to the storage for finished products through an elevator. dusty gases from the mill will be used as the first gas to enter into the powder concentrator, which is followed by fresh air. finally, dusty gas will be purified by the air tank pulse bag filter before discharged into the atmosphere.
3. design of mixing fine slag and powder clinker
besides the fineness of powder clinker and fine slag in the grinding production line, accurate measuring and even mixing also need to be paid much attention to. that's why we choose to use the screw measurer as the measuring device and the air slide as mixing device as well as conveying device.
As a professional manufacturer and supplier of cement clinker grinding plant in China, jiangsu pengfei group Co., Ltd can also provide you with various other machines, such as rotary kiln, lime rotary kiln, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. most of our products have passed the certification of ISO9000 and ce, and they have been quite popular among customers from as many as 60 countries and aeras such as Germany, Russia, Brazil, Egypt, Japan, bengal, Pakistan, India, Turkey, UAE, Vietnam, South Africa, Mozambique, ivory coast, columbia, Bolivia, etc.
If you need any type cement grinding plant, please don't hesitate to contact us.
