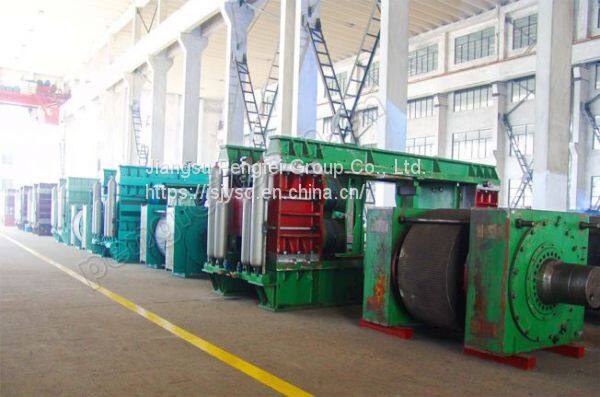

Description of Roller Press Machine:
Our rolling machine is a kind of new-type cement grinding equipment developed on the basis of advanced technology, and its grinding system has integrated the rolling, scattering, separating, drying and powder separating into one body. Besides, when used together with a ball mill, it can be used in various process flows, like pre-grinding, mixing, semi-finished grinding, finished grinding, and more.
Due to the change in its grinding principles, this rolling machine and its grinding system have more advantages, like 50-100% lower power consumption, and 100-300% higher productivity.
Features of Rolling Machine:
1. Heat overlaying weld has been employed to make the maintenance of wear-resisting layer more convenient. Meanwhile, the amount of microcracks is largely reduced, and the service life of roller surfaces is no less than 8000h. It is quite easy to maintain the roller surfaces.
2. Aeronautic hydraulic technique is used to make the hydraulic system more reliable and stable.
3. With the cooperation of its hydraulic system and automatic control system, it can do the work of load control of main driving motor, deviation control of space between rollers, automatic deviation adjustment, and fault diagnosis.
4. Its matched powder separator has scattering, grading and drying capacity, which makes low operation costs and high working efficiency possible.

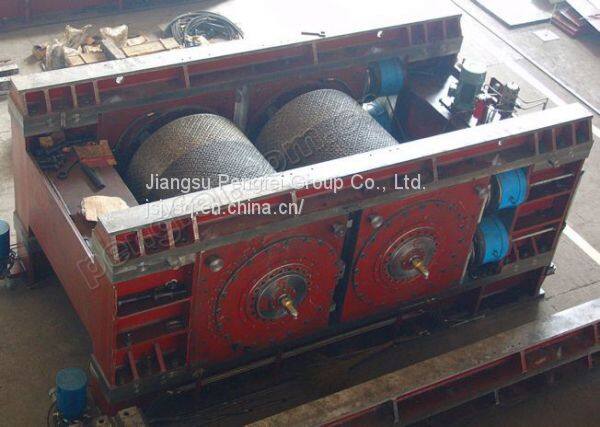

PFG120-45 Rolling Machine
Parameters of PFG120-45 Rolling Machine:
1. Name: PFG120-45 Rolling Machine
2. Material name: raw meal of cement, clinker and so on.
3. Total moisture content: ≤1-1.5%
4. Maximum feeding size: ≤70mm
5. Average feeding size: ≤25mm
6. Discharge size: more than 25% of processed materials are 0.08mm.
7. Productivity: 100-140t/h
8. Operation mode: continuous
9. Power supply mode: voltage: 380V; motor model: Y355L-8
10. Layout mode: 2×220KW power for indoor motor
11. Roller diameter: 1200mm
12. Roller width: 450mm
13. Linear velocity: 1.48m/s
14. Max. crushing capacity of rollers: 70KN/cm
As a professional manufacturer and supplier of cement plant in China, Jiangsu Pengfei Group Co., Ltd can also provide you with various other machines, such as rotary kiln, lime rotary kiln, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and aeras such as Germany, Russia, Brazil, Egypt, Japan, Bengal, Pakistan, India, Turkey, UAE, Vietnam, South Africa, Mozambique, Ivory Coast, Columbia, Bolivia, etc.
If you need cement equipments, please don't hesitate to contact us.
