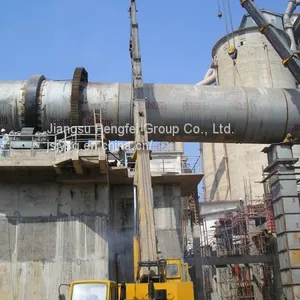

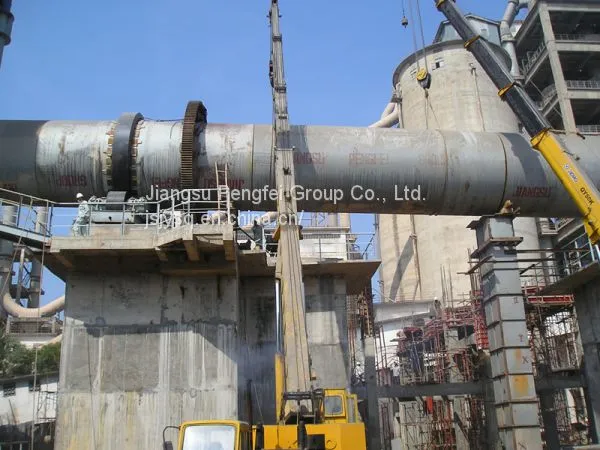

Help CenterDry-Process 6.2*87m Rotary Kiln Cement Production Line With Daily Capacity 12,000 TPD Clinker Production Plant
Related Products
-
Cement Tube Mill + Roller Press Machine for 3000 Tpd Clinker Production Line FactoryNegotiableMOQ: 1 Set -
OPC Portland Cement Clinker Grinding Mill Plant With VRM & Roller PressNegotiableMOQ: 1 Set
-
Roller Press Machine for 1000-6000 Tpd Clinker Grinding Plant and Cement Packing UnitNegotiableMOQ: 1 Set
-
Calcium Carbonate Superfine Grinding Mill / Sand Ball Grinding MillUS$ 200000 - 2000000MOQ: 1 Set
-
Clinker Manufacfturing Plant and Cement Grinding Project With VRM Vertical Roller Mill TechnologyNegotiableMOQ: 1 Set

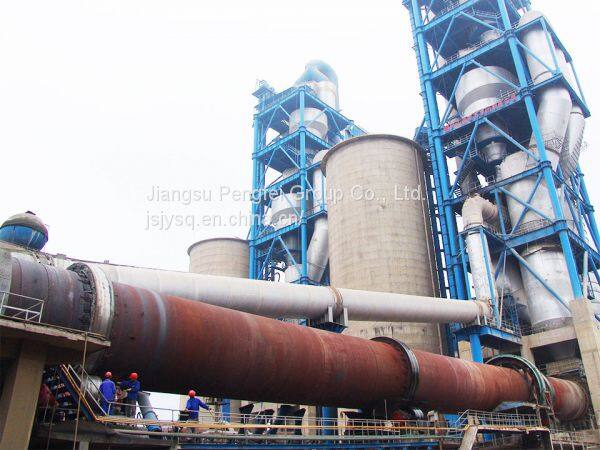

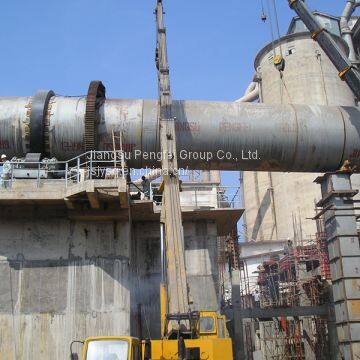

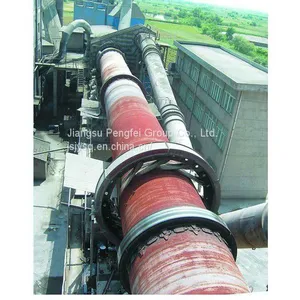

Technical Performance of Ф6.2×87m Rotary Kiln:
Specification: Ф6.2×87m
Output: 12000t/d dry process cement production line
Inclination: 3.5%
Amount of supports: 3
Rotating speed: main driving: 0.45~4.5r/min; auxiliary driving: 8.5r/h
Sealing mode: sheet steel for sealing kiln head and end
Cooling of kiln head: air cooling
Cooling of Ⅰ, Ⅱ thrust roller belts: air cooling
Driving mode: bilateral driving; main driving motor: 1050×2 KW.
Main Components ofФ6.2×87m Rotary Kiln:
1. Cooling tube for kiln head
2. Air cooler for Ⅰand Ⅱ thrust roller belt
3. 3 supporting devices
4. Cast alloy steel supporting rollers are designed with solid construction, and some parameters of them are in the following.
External diameter |
Width |
Amount |
Weight (kg) |
Total weight (kg) |
Ф2400 |
1150 |
2 |
32800 |
65600 |
Ф2700 |
1300 |
2 |
45600 |
91200 |
Ф2400 |
1150 |
2 |
32800 |
65600 |
5. Cone thrust rollers are made of cast alloy steel, and they have undergone normalizing treatment. The weight of double thrust roller is 5250kg.
Pengfei Group is one of the professional ф6.2×87m rotary kiln manufacturers and suppliers in China. Our factory can offer you low price but quality, newest and advanced products made in China. We are one of the most famous such brands. Welcome to buy our customized, durable and easy-maintainable ф6.2×87m rotary kiln and also welcome to check the quotation with us.
Usage: Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials. Ball Mill Working principle: This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of ф6.2×87m rotary kiln in China. Besidesф6.2×87m rotary kiln, we also provide customers worldwide with metallurgy rotary kiln, lateritic nickel rotary kiln, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our ф6.2×87m rotary kiln, please contact us freely.
