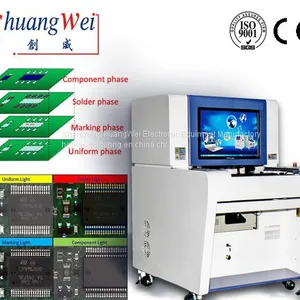

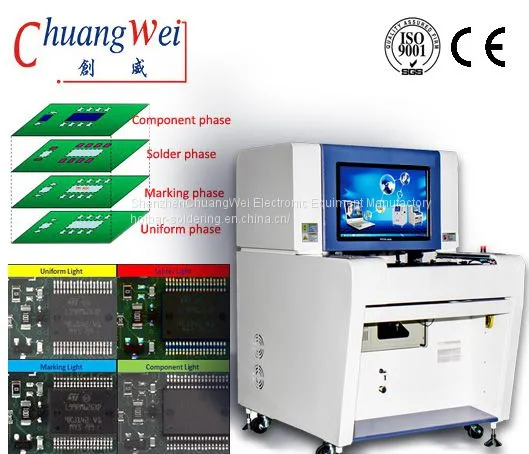

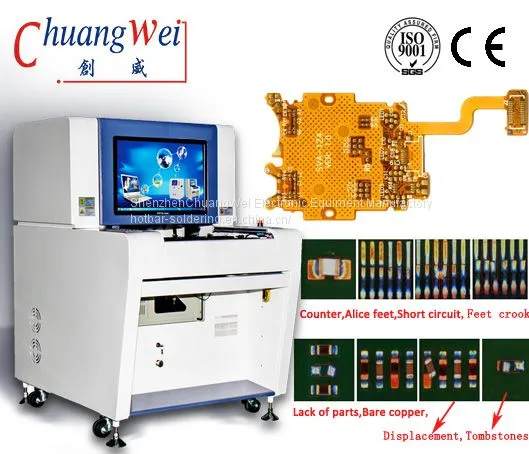

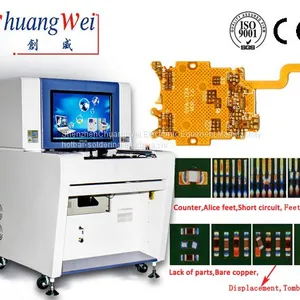

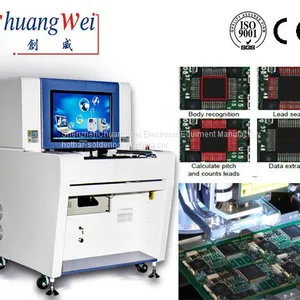

Automatic SMT Offline AOI Optical Inspection Machine,CW-486 Description:
Easy to operate and multiple-function AOI
Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality,
check component defects before reflow soldering, check PCBA quality after reflow soldering,
and DIP after wave soldering
1.Super high-pixels photography system ensures lowest lowest inspection judgment
Simple Weigh-win imaging Difference Model technology (WIDM) can lessen the study time while programming;
Unique inspection shift of 2 sides of board (components top and bottom),auto software origin emendation;
Applied for mark point emendation for duplicated boards &bar code database and PCB bad mark recognition;
Creative OCR (Optical Character Recognition) function extends the area of AOI algorithm improves the judgment of misplacement;
Share data among AOI internal network.
2.Intelligent color analysis technology
Using color extract and Analysis Technology (CPAT) can extract the object shape more correctly and gain highly precision of the inspection;
The application of multiple-marks and multiple-boards can be more adapted the demands of the production tests and give you many scene applications.
3.Bar code Reading
More simplified weight debugging function, so that programming without learning or less learning;
Original positive and negative automatic identification, as well as automatic origin correction, opened a new era of off-line AOI automation;
4.Components free combination
Many algorithms applications and combination with enhance the pass rate reduce the rate of misjudging greatly;
The components can combined freely make the template replace more easy and programming more quickly.
5.Dimensions of the machine
Automatic SMT Offline AOI Optical Inspection Machine,CW-486 Technical Parameters:
|
Category |
Item |
Specification |
|
Recognition System |
Inspection |
using multiple algorithms synthetically such as WIDM,Color Image contrast technology,Color extracting technology,similarity,binarization algorithm,OCR/OCV,shot test and so on. |
|
Camera |
High-speed color camera: Resolution 12 um |
||
Lamp-house |
Ring RGB LED lamp-house |
||
|
Image Processing Speed |
0201 Chip |
||
Per-image time |
|||
Inspection items |
Paste Printing defects |
Misaligned, overflow, insufficient, pasting open, stain |
|
Component defects |
Missing,misaligned,skewed,tombstone, billboard,overturned,reversed polarity,wrong, damaged |
||
Solder defects |
Overflow, insufficient, short solder, stain |
||
Anti static measures |
Anti static electric outlet, anti static wreath |
||
Mechanism System |
PCB Size |
25*25mm - 330*480mm,can make bigger size according to clients’ demands |
|
PCB Thickness |
0.5mm-2.5mm |
||
PCB Warp Tolerance |
|||
Component Clearance |
Top≤25mm，Bottom≤50mm |
||
Minimum Space Parts |
0201 Chip |
||
X Y Platform |
Driver |
AC Server |
|
Orientation |
|||
|
Soft System |
Operation system |
Microsoft Windows XP Professional |
|
Controlling & Recognizing |
Characteristics |
Comprehensive application of various algorithms; Components standards set specific and targeted, low false positive; support the camera bar code recognition, automatic jump shield test |
|
Operation |
Graphic programming,take along with chip library and get a inspection frame according with chip shape,accurate position,micron adjust, and easy programming |
||
Mark |
Mark Numbers |
2marks can be chosen,panelize multiple-mark function |
|
Recognizing Speed |
0.5 S/PCS |
||
Controlling |
Computer |
Industrial computer CPU:Intel dual-core,MEMORY:2G,HARDDISK:500G |
|
Display |
19 inch TFT(Option 22inch TFT) |
||
others |
Machine Dimensions |
860mm*960mm*1250mm |
|
Weight |
450Kg |
||
Power Supply |
AC220V±10%, single phase 5A 50/60HZ, power consumption 600W, along with a unbreak power supply of UPS |
||
