Pneumatic Stencil Cleaning Machine Stencil Cleaner For SMT Process,CW-750
Pneumatic Stencil Cleaning Machine Stencil Cleaner For SMT Process,CW-750 Product Features:
1. With different solutions, solvents, can be washed solder paste steel mesh, red plastic steel mesh, resin network, copper mesh.
2. SUS304 All stainless steel body, beautiful, wear-resistant, corrosion-resistant, in line with environmental requirements and standards.
3. All pipes, angle seat valves and other control components are used SUS304 material.
4. Pneumatic operation, no electricity, there is no fire and other security risks.
5. High-density isobaric rotary cleaning nozzle: clean and strong and will not damage the steel mesh tension.
6. three-stage filtration system, low exhaust and S-type exhaust pipe design, solvent recycling.
7. Large filter drum, replace the filter is more convenient; large flow, cleaning ability.
8. Optimized rotating mechanism, spray bar rotation more smoothly and no wear.
9. one-button operation and automatic drainage function, the operation is very simple.
10. Global high-quality parts, to ensure high quality, stable performance, long service life.
11. Modular control and quick-release design, maintenance more convenient.

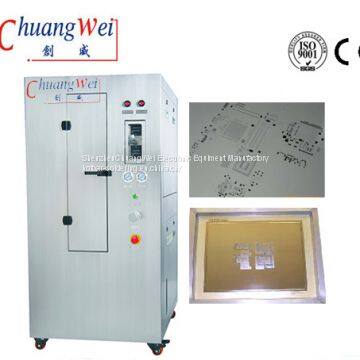

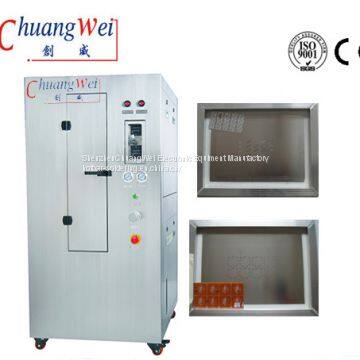

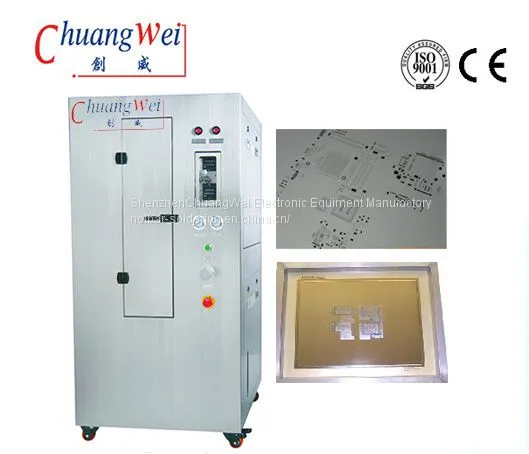

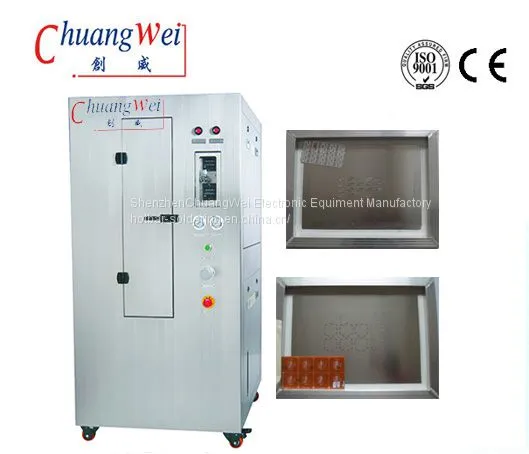

Pneumatic Stencil Cleaning Machine Stencil Cleaner For SMT Process,CW-750 Product Samples:
Pneumatic Stencil Cleaning Machine Stencil Cleaner For SMT Process,CW-750 Specification:
Name |
Technical Parameters |
Applicable steel |
750*750*10mm and the below dimensions |
The maximum volume of the tank |
41L |
Best liquid usage |
25~35L |
Cleaning method |
360 degree rotary liquid spray cleaning and compressed air drying |
Cleaning time |
2~5 mins(paste) |
Drying time |
3~5 mins |
Extremal air supply |
0.5~0.6(Map) |
Air consumption |
200~600L/Min |
Outlet size |
D124*30mm maximum gravitational speed 3m/sec |
|
Filtration system(level tree) Net weight |
First/second filter/filter bag:1mm*20um(filter impurities and labels) |
Three filter elements:1um(fitter solder paste and rosin particles) | |
Net weight |
300KG |
Dimension |
800*950*1650mm |
Pneumatic Stencil Cleaning Machine Stencil Cleaner For SMT Process,CW-750 Customer Feedback:
Pneumatic Stencil Cleaning Machine Stencil Cleaner For SMT Process,CW-750 CE Approval:
Pneumatic Stencil Cleaning Machine Stencil Cleaner For SMT Process,CW-750 Visiting of Clients:
Pneumatic Stencil Cleaning Machine Stencil Cleaner For SMT Process,CW-750 Our Advantages:
