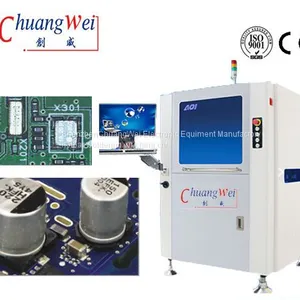

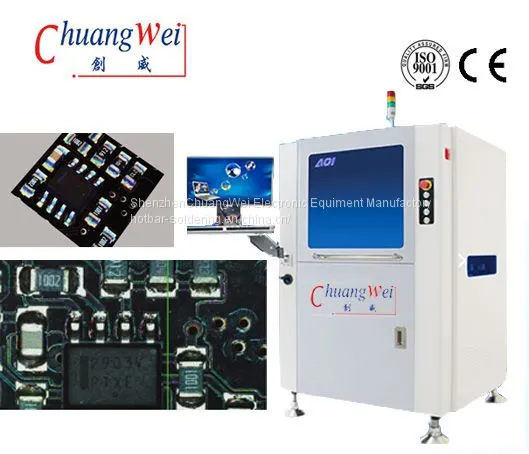

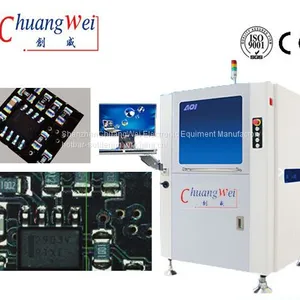

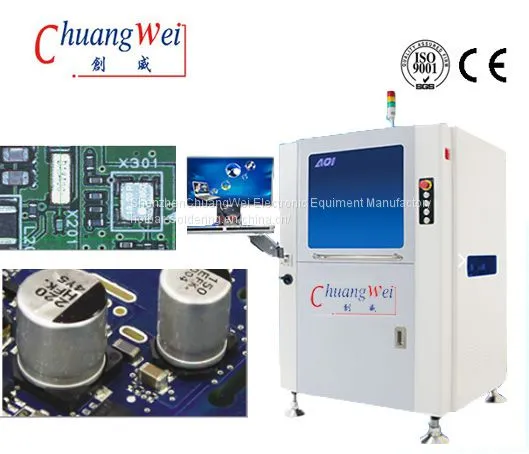

Automatic Optical Inspection Machine,PCB AOI Machine,CW-S810:
PCB AOI Machine,PCB Inspection Machine,CW-S810 Feature:
Vector analysis algorithm, integrated variety of software algorithms to achieve the best inspection capability
The entire PCB match capability can detec extra parts at any location
Germany imported 5.0 MP industry cameras
The mew light source design, effectively eliminated the NG parts
Offline programming
Import control system to ensure high-precision equipment operation
The equipment can communicate directly with the NG buffer device and other equipment through the communicate protocol
Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator
2. Various vector image algorithms to get the best inspection capability
The vector image algorithms include logic operation ,distance of luminance boundary, chip tracing,OCR/OCB Luminance/color template matching, color distance, color distance, color extraction (RGB&HSV),VALUE-range of luminance offset of luminance, the minimum variation span of luminace,etc……More than 30 Kinds of the most advanced algorithms

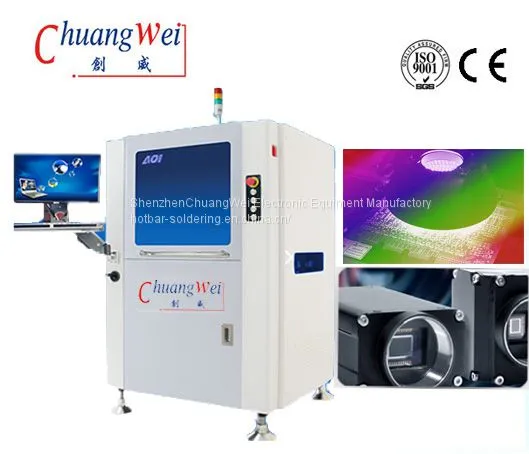

3. Germany imported 5.0 MP Industry cameras
Wight a high-color reproduction, collocation a high-resolution telecentric lens, high NG identification, provide high-definition image output the AOI
4. Control system
All major components are used internationally renowned brands, in the premise of ensuring the stability and accuracy of the movement equipment with high service life and low failure rate.
5. The entire PCB match capability can detect extra part at any location
The entire PCB match function

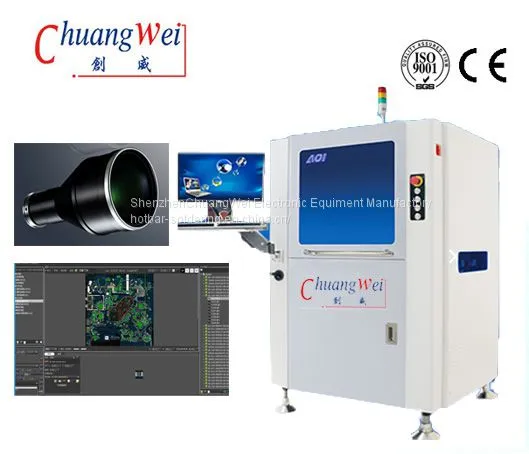

High frame rate industrial cameras with telecentric lens
High-speed dynamic image acquisition can acquire hundreds of images per second, combined with the software entire board matching algorithm, can be used detect extra parts,foreigh matter, scratches and other information on the PCB
6. Multi machines one operator, intelligent communication
Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator
PCB AOI Machine,PCB Inspection Machine,CW-S810 Specification:
Category |
Item |
CW-S810 |
Recognition system |
Inspection |
The vector image algorithms include logic operation, distance of luminance boundary, chip tracing,OCR/OCV luminance/color template matching, color distance, color extraction (RGB&HSV)Value-range of luminance, offset of luminance, the minimum variation span of luminace,etc….more than 30 kinds of the most advanced algorithms |
Camera |
Distal high speed CCD 5m pixel camera,20um(12um,15um,10um for option) |
|
Lens |
High-resolution telecentric Lens |
|
Lamp-house |
Rings RGB led lamp-house |
|
FOV |
40.95*40.95mm(20um)30.68*30.68(15um) |
|
0201 Chip |
||
Per-image Time |
||
Paste Printing Time |
Missing,shift,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged |
|
Component Defects |
Overflow,insufficient,short solder,stain |
|
Solder Defected |
Overflow,insufficient,short solder, solder void |
|
Wave Soldering Inspect |
01005&0.3mm pitch()15um |
|
Mechanism System |
PCB Conveyor |
Left to right ,PCB fixing:bottom-up,PCB warp correction ,Automatic PCB loading and unloading ,Adjustable clearance,Conforming SMEMA standard,Orbit clearance: 900±20mm |
PCB size |
50×70mm-400×330mm |
|
PCB thickness |
0.5mm – 3.0mm |
|
PCB warp Tolerance |
||
Component Clearance |
TOP≤25mm， BOT≤25mm |
|
Driver |
AC server, camera moves in the directions of X/Y |
|
Moving Speed |
500mm/s |
|
Soft System |
Operation System |
Microsoft Windows 7 X64 |
Operation |
Graphic programming,Chinese,English |
|
Programming |
Support office programming and debugging |
|
Computer |
Industrial Computer, Intel four-core 17 CPU,Memory:16G,Hard disk:1TB |
|
Display |
21 inch TFT |
|
Network |
Multi machine control |
The operator can control multi same machines in the control time |
Network |
NG adaptable, check and correct PCBA defects at repair station |
|
Communication port |
SMEMA,RS232,RJ45 |
|
Other |
Air Supply |
0.5MPA.40CM3/min |
Machine Dimensions |
100*96*160cm |
|
Weight |
70KG |
|
Power Supply |
AC220V,10%,Single phase 5A 50/60HZ,POWER CONSUMPTION 1000W WITH ups inside |
|
Working Environment |
Temperature 10-40℃,humidity 30-802%RH |
