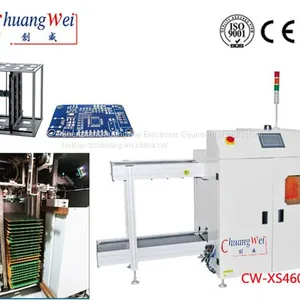

DE stacker/Push-Up stacker,Vacuum Bare Board loader,CW-XS460 Features:
※PLC control system, working is stably and reliably,
※Easy to operate touch screen control interface,
※Enclosed design ensure the highest security level,
※ Top safety cover can be opened, the handling of the machine easy to maintain the hardware,
※ Agility sucker design, position adjustable,
※ The solid balance device of adjusting the width (Hand control screw adjustment),
※ Small machine footprint,
※Machine always fault monitoring,
※Optional pass working mode,
※ SMEMA port is compatible.
PCB Loader,Pcba Loading with PLC System,Technical Parameter:
Function |
This equipment is used for the operation of bare PCB loading in the line |
PCB loading time |
Approx 6 seconds |
Magazine change-over time |
Approx 30 seconds |
Power supply |
100-230V AC (customized ), single phase, MAX 300V/A |
Air pressure |
4-6 bar, MAX 30L/minute |
Transport height |
900±20mm (or customized) |
Transport direction |
Left to right / right to left(optional) |
PCB thickness |
Min 0.6mm |
Magazine number |
transport up: 1pcs, transport down: 2pcs,(or customized) |
Step pitches select |
Step pitches select |
PCB Loader,Pcba Loading with PLC System,Specification:
Model |
CW-XS460 |
PCB size (L×W)～(L×W) |
(50x50)～(530x460) |
Machine size (L×W×H) |
2600×1480×1200 |
Magazine size (L×W×H) |
535×530×570 |
weight |
285kg |
