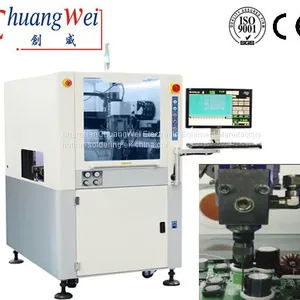

Conformal Coating Machine - Used SMT / PCB Equipment Marketplace,CWCC-3L Technical parameters:
Model |
CWCC-3L |
External Size L*W *H |
1010*1360*1675mm(L*W*H) |
Weight |
500KG |
Control Mode |
IPC+control card |
Software |
CW software+Windows |
Programming |
Teaching box |
Axis |
X,Y,Z |
Drive |
Servo motor +ball screw |
Max. move speed |
800mm/s |
Coating scope |
L580*W580mm |
Max .PCB height |
up 90 down 90mm |
Rotation angle |
±180º |
Positioning accuracy |
0.02mm |
Repeat accuracy |
0.02mm |
Conveyor quantity |
1 |
Width adjusting mode |
auto |
Width adjust speed |
250mm/min |
Conveyor height |
900±20mm |
Conveyor speed |
2-5mm/min |
Conveyor direction |
L-R(R-L optional) |
PCB edge space |
≧5mm |
Conveyor motor power |
DC24V 69W |
Communication port |
SMEMA port |
Nozzle quantity |
2 sets |
Nozzle type |
pin type spray nozzle,film nozzle |
Tilt angle |
0~35º |
Single coating width |
2-30mm(According to the selected value) |
Material volume |
5L |
Draft capacity |
15 m3 /min |
Power supply |
AC220V 50/60Hz |
Total power |
2.2KW |
Pressure |
0.4Mpa |
Programming panel |
Standard |
Material Detection |
Standard |
Camera location |
Standard |
Clamp device |
Standard |
Bar code |
Standard |
UPS |
Standard |
Waste recycling |
Standard |
3 Axis Conformal Coating Machine,CWCC-3L Features:
1.Motion controller use computer+,WINDOWS operating system, failure alarming menu;
2.Available by manual teaching programming which is easy and quick;
3.Integral steel moving platform, to ensure the smooth running;
4.X, Y, Z three-axis motion;
5.Servo motor+ball screw drive;
6.Run precision of 0.02mm,automatically eliminate difference;
7.Nozzles automatic cleaning device;
8.Special aluminum alloy rail and stainless steel conveyor chain;
9.Independent material container;
10.Equip with gas collection, exhausting devices;
11.SMEMA port to connect with other devices.
Selective Conformal Coating System | Dispensing Equipment Nozzle option and funcion:
|
|
]
Tilt for coating |
|
Can equipped with 2 sets of nozzle. |
Tilt for dispensing |
|
Big area coating |

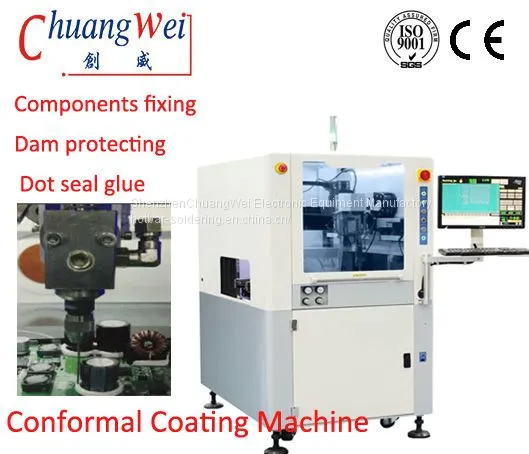

Components fixing, Dam protecting,Dot seal glue |
|
Automatic purging when waiting |
Automatic sol bent after purging |
PCB Coating Machine - Printed Circuit Board Coating Machine Applications:
PCBA surface coating, dam process, coating solder mask, DIP components fixing.
