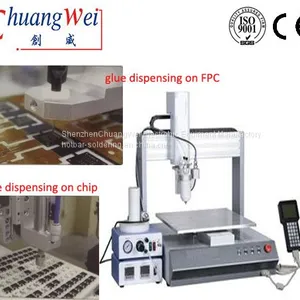

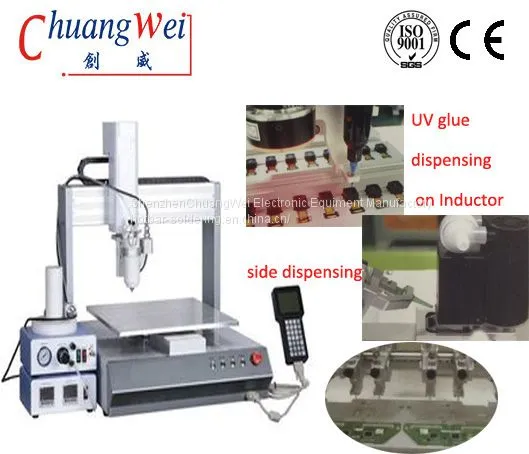

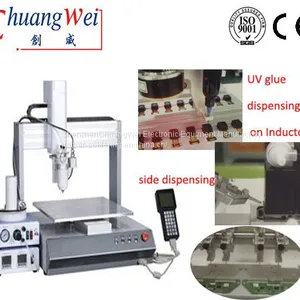

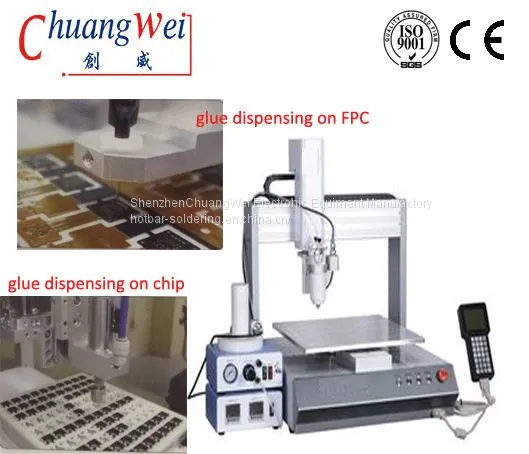

CW-7000N Series Automatic Dispensing Robots Robotic Dispensing Systems：
Working Temperature: |
0~40°C |
Working Relative Humidity: |
20~90% No Condensation |
Repeat ability: |
+/- 0.01mm / Axis |
Interpolation Function:: |
3 Axis |
I/O Signals Port: |
8 Inputs / 8 Outputs |
Trade Term:: |
EXW |
Glue Dispenser-Glue Dispensing Systems Description:
Multiple-axis system and on line dispensing arm which provides a highly reliable operation and good repeat ability.
Multiple-axis system which can simple programming for point, stripes, arc, composite curve, and different
patterns.
This machine can set up quickly and easy to operate, can save more more time for other projects so
that help to increase production.
Customizable Glue Dispenser Machine for Pcba Specifications：
Item |
CW-7200N |
CW-7300N |
CW-7400N |
CW-7500N |
CW-7300S |
CW-7400S |
CW-7500S |
|||
|
Working Ares: X/Y/Z mm |
200/200/50 |
300/300/100 |
400/400/100 |
400/400/100 |
300/300/100 |
400/400/100 |
500/500/100 |
|||
Max Load Y/Z Axis |
5kg / 3kg |
11kg / 6kg |
15kg / 8kg |
|||||||
Speed X&Y/Z |
500/350 mm/s |
800/500 mm/s |
500/350 mm/s |
|||||||
Repetitive Positioning Accuracy |
+/- 0.02mm/Axis |
+/- 0.01mm / Axis |
+/- 0.01mm / Axis |
|||||||
Program Capacity |
At least 100 groups, 4000 points / Group |
|||||||||
Date Storage Type |
CF Card |
|||||||||
Byte |
32 Bit |
|||||||||
Program Display |
LCD |
|||||||||
Motor System |
2phase stepping motor |
3phase stepping motor |
Servo Motor |
|||||||
|
Transmission Mode |
Synchronous Belt |
X/Y Synchronous Belt, Z ball screw |
Precision Ball Screw |
|||||||
|
Interpolation Function |
3 Axis |
|||||||||
|
Programming Mode |
Teach Pendant |
|||||||||
I/O Signals Port |
8 Inputs / 8 Outputs |
|||||||||
|
External Control Interface |
RS232 |
|||||||||
Power Supply |
AC 100~230V 300W |
|||||||||
|
Working Temperature |
0~40°C |
|||||||||
Working Relative Humidity |
20~90% no condensation |
|||||||||
Dimensions: mm |
385/380/500 |
485/505/610 |
585/610/610 |
685/700/670 |
485/505/610 |
585/610/610 |
685/700/670 |
|||
Robot Weight |
23kg |
34kg |
41kg |
52kg |
50kg |
55kg |
70kg |
|||
China Desktop Glue Dispensing Robot for Underfill Process Features:
Easy to program;
Reduce the process time so that to help increase production;
Fully integrated positioning and dispensing function;
The perfect integration of dispensing and positioning function.
Application to:
The application in filling, adhesive, moulding and sealing which need to inject adhesive and sealant.
