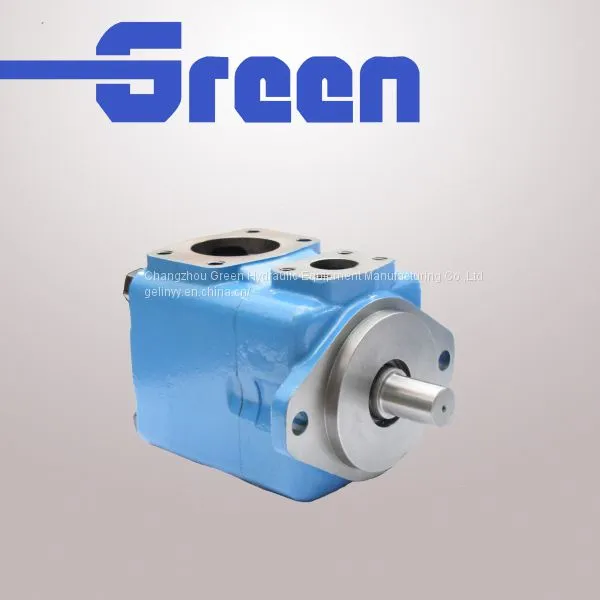

Help CenterVickers VQ Series Hydraulic Vane Pump Single Pump
Related Products
-
Vickers VQ Series Hydraulic Vane Pump Double PumpUS$ 300 - 600MOQ: 1 Set -
Vickers 2520VQSV10 Hydraulic Vane Pump Triple PumpUS$ 300 - 600MOQ: 1 Set
-
Eaton Vickers VQT Series Hydraulic Pump Rotary Vane PumpUS$ 300 - 600MOQ: 1 Set
-
Vickers 25M 35M 45M 50M Hydraulic Vane MotorUS$ 300 - 600MOQ: 1 Set
-
Vickers V10 V20 V2010 V2020 Hydraulic Power Steering PumpUS$ 300 - 600MOQ: 1 Set
VQ Series Pump
The high-pressure and high-performance Intra-vane pumps for Mobile Equipment.
Features:
1. To adopt balanced hydraulic for the structure of Intra-vane and ten-Vane design, higher pressure, top to 21MPa.
2. To adopt floating structure for side plate, it will do a compensation for end-face clearance by automatic, so that even the pump under high pressure it can maintain a high volumetric efficiency.
3. The side plate is made of dual-metal material, it proved the seizure resistance, and so that the life of pump will be longer.
Eaton vickers vane pump 20VQ 25VQ 35VQ 45VQ single pump
Eaton vickers vane pump 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ double pump.
(F3-) |
25VQ |
19 |
A |
(F) |
-1 |
A |
30 |
-(LH) |
Note |
Series |
Displacement |
Port connections |
Installation type |
Shaft type |
Outlet Positions |
Design number |
Rotation |
|
No-marking: Petroleum series oil Emulsification fluid Water glycol-fluid
F3:Phoshate ester fluid |
20VQ |
2,3,4,5,6,7,8, 9,10,11,12,14 |
A-SAE 4-bolt flange |
No-marking Flange Mounting
F-Foot Mountion |
1-Str key 11-Spline |
(Viewed from shaft end of pump) A-Opposite inlet B-90°CCW from inlet C-Inline with inlet D-90°CW from inlet |
30 |
(Viewed form shaft end of pump)
Right hand for clockwise
Left hand for counter clockwise
|
25VQ |
10,12,14,15, 17,19,21,25 |
1-Str key 86-HD Str key 11-Spline |
20 |
|||||
35VQ |
21,25,30,32, 35,38,45 |
|||||||
45VQ |
42,45,50,57, 60,66,75 |
Series |
Flow code (USgpm) |
Geometric displacement ml/r |
Max.operating pressure Mpa |
Max.speed r/min |
Min. Speed r/min |
20VQ |
2 |
7(0.43) |
21 |
2700 |
600 |
3 |
10(0.61) |
||||
4 |
13(0.79) |
||||
5 |
16.5(1.01) |
||||
6 |
19(1.16) |
||||
7 |
22(1.40) |
||||
8 |
27(1.67) |
||||
9 |
30(1.85) |
||||
10 |
31.5(1.92) |
||||
11 |
35(2.14) |
||||
12 |
40(2.44) |
16 |
|||
14 |
45(2.78) |
14 |
|||
25VQ |
10 |
32(1.95) |
21 |
2700 |
600 |
12 |
38(2.32) |
||||
14 |
43.5(2.65) |
||||
15 |
47(2.89) |
2500 |
|||
17 |
54(3.30) |
||||
19 |
60(3.66) |
||||
21 |
67(4.13) |
||||
25 |
79.2(4.83) |
||||
35VQ |
21 |
67(4.13) |
21 |
2500 |
600 |
25 |
81(4.94) |
||||
30 |
95(5.80) |
||||
32 |
101(6.16) |
||||
35 |
109(6.65) |
2400 |
|||
38 |
119(7.26) |
||||
45 |
143(8.72) |
14 |
|||
45VQ |
42 |
134(8.17) |
17.5 |
2400 |
600 |
45 |
143(8.72) |
2200 |
|||
50 |
159(9.70) |
||||
57 |
181(11.05) |
||||
60 |
189(11.53) |
||||
66 |
210(12.81) |
||||
75 |
237(14.46) |
14 |
