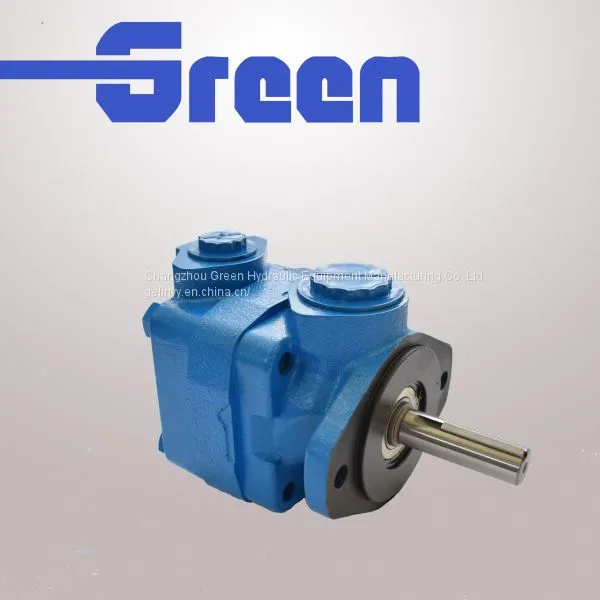

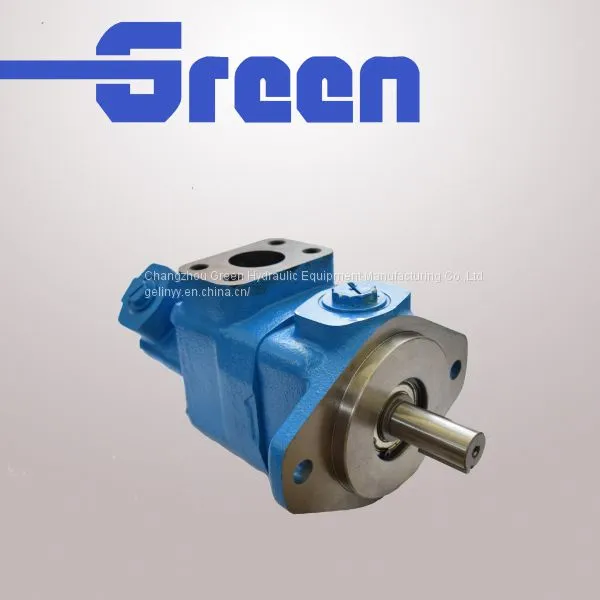

vickers V10 V20 V2010 V2020 hydraulic power steering pump

F3 - V 10 - 1 P 5 S - 1 C 20 L

  1      2     3      4  5  6   7     8  9   10   11

 1.     Special Seals

Omit if not required.

 2.       Vane pump

 3.     Series

10 or 20

 4.     Mounting

1 – 2-bolt flange, 3.25” pilot (standard)

6 – 2-bolt flange, 4.00” pilot (optional)

 5.       Inlet port connections

P – 1” NPT thread (V10 only)

1 1/4” NPT thread (V20 only)

S – 1.3125-12 straight thread (V10 only)

1.625-12 straight thread (V20 only)

6.     Ring size

(Delivery at 1200 r/min and 100 psi)

V10 series

1      – 1 USgpm

2      – 2 USgpm

3      – 3 USgpm

4      – 4 USgpm

5      – 5 USgpm

6      – 6 USgpm

7      – 7 USgpm

V20 series

6      – 6 USgpm

7      – 7 USgpm

8      – 8 USgpm

9      – 9 USgpm

11   –11 USgpm

12   – 12 USgpm

13   – 13 USgpm

 7.  Outlet port connections

P – 1/2” NPT thd. (V10 only)

R – 1.1875–12 St. thd. (V20 only)

S – .750–16 St. thd. (V10 only)

1.0625–12 St. thd. (V20 only)

8.  Shafts

1 – Straight keyed

11 – Splined

38 – 11 Tooth – 3/4” OD.

62 – Splined (V20 only)

 9.  Position of outlet port

(Viewed from cover end of pump)

A – Opposite inlet port

B – 90° CCW from inlet

C – In line with inlet

D – 90° CW from inlet

 10.   Design

11 – V20 series

20 – V10 series

Subject to change.

 11.   Shaft rotation

(Viewed from shaft end of pump)

 L – Left hand (counterclockwise).

Omit for right hand.

Specifications

Based on using petroleum oil at 49°C (120°F), viscosity 32 cSt at 38°C (150 SUS at 100°F), and 0 psi inlet pressure
