Hans GS Laser Cutting Machine Price, Metal Sheet Laser Cutting Machine Price
- 10 Set / Sets per Month
- WUHAN
- T/T L/C Cash
- 20 days
- REBOUND CNC plasma cutting machinery with bevel head 30mm
- REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
- Best price cnc detachable plasma cutting machinery for gas-plasma cutting
- helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
- pump inside air detachable plasma cutting machinery sliding work bench
- solenoid valve for detachable plasma cutting machinery lokermann high safety level
Product Details
Brand Name: | HANS GS | Place of Origin: | China | Model Number: | HANS GS-LFD3015 |
Certification: | SASO,CE,ISO | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12 months |
Weight: | 9800 | Dimension(L*W*H): | 4270mm x2280mm x 1750mm | Voltage: | 380V |
Rated Power: | 500 to 4000W | Condition: | New |
Product Description

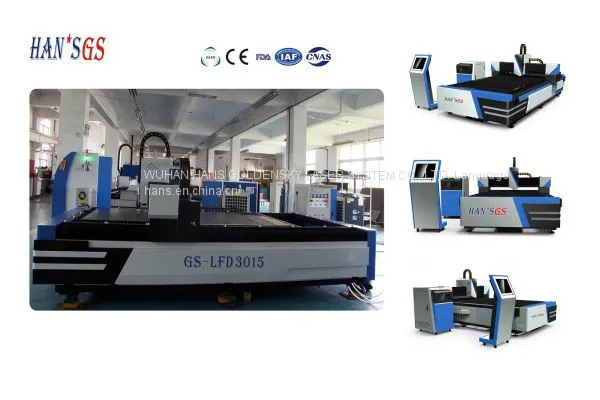

Hans GS Laser Cutting Machine Price, Metal Sheet Laser Cutting Machine Price
Model | GS-LFD3015 |
Laser source medium | Fiber |
Laser power | 500W~3000W |
Cutting range(L*W) | 3000mm × 1500mm |
Z axle stroke | 100 mm |
Max positioning speed | 120m/min |
Max height of feeding material | more than 120mm |
Cooling form | water cooling |
Laser wavelength | 1070nm |
Min. cutting gap | ≤0.1mm |
Positioning accuracy of X, Y and Z axles | ±0.03 mm |
Repeated positioning accuracy of X, Y and Z axles | ±0.01 mm |
Drive model | Imported servo motor |
Power requirement | 380V,50/60Hz |
Working temperature | 5ºC-45ºC |
Continuous working time | 24 Hours |
Outer dimension | 4270mm x2280mm x 1750mm |
Total protection level of power supply | IP54 |
It's the best-selling products of our company,The technology of the machine is mature and stable, the design of smooth and generous, high cost performance.
Fiber Laser cutting machine is widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.
HANS GS Laser Cutting Machine advantages
(1) Cutting knife is narrow and parallel on both sides, also perpendicular to surface, dimensional accuracy of cutting pieces can be up to + / - 0.05 mm.
(2) Cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing.
(3) Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good , slitting rectangular cross-section shapes appear to be regular.
We provide you Laser cutter quotations,3D Robot Laser cutter price, Metal Sheet Laser Cutter,Metal Tube Laser Cutter price. We have 20 years of experience in laser equipment production,The main products are laser cutting machine, laser welding equipment, laser perforating equipment, laser cladding equipment.
Please let me know the following informations:
1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Laser Source Power&Cutting ability
Laser Source Power/Cutting ability | CS(mm) | SS(mm) | Alumium(mm) | Brass(mm) | |
500W | Max cutting thickness | 8 | 4 | 2 | 2 |
Max processing thickness | 5 | 3 | |||
700W | Max cutting thickness | 10 | 6 | 3 | 3 |
Max processing thickness | 6 | 5 | |||
1000W | Max cutting thickness | 14 | 8 | 4 | 4 |
Max processing thickness | 8 | 6 | |||
1500W | Max cutting thickness | 16 | 10 | 6 | 5 |
Max processing thickness | 12 | 8 | |||
2000W | Max cutting thickness | 20 | 12 | 8 | 6 |
Max processing thickness | 16 | 10 | |||
2500W | Max cutting thickness | 22 | 12 | 10 | 8 |
Max processing thickness | 20 | 10 | |||
3000W | Max cutting thickness | 25 | 14 | 12 | 8 |
Max processing thickness | 22 | 12 |
We provide you 500W to 3000W Fiber Laser Cutting Machine FOB/CIF/C&F/EXW PRICE.CNC Fiber Laser Cutting Machine For metal cutting.

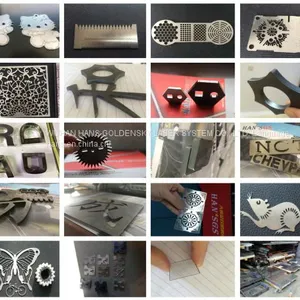

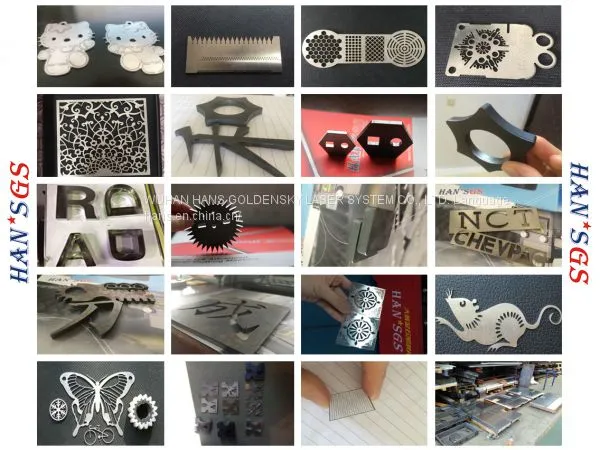

Cutting Simples
We are honored to offer you samples.It is used to cut Metal,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel,galvanize plate, pickled plate, copper plate, aluminum plate, etc.
Our Company
WUHAN HANS GOLDENSKY LASER SYSTEM CO., LTD. is a subsidiary of Han's Laser, located in East Lake High-tech Development Zone, "China Optical Valley",Wuhan. It's subsidiary company of HAN'S Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Packing & Delivery & Service
Welcome come to our factory.
