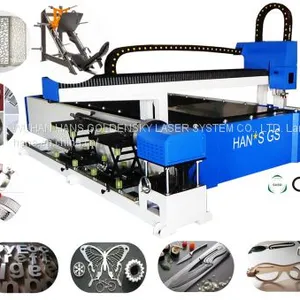

Help Center1500W Steel Pipe Laser Cutting Machine For Mechanism Parts , Kitchenware
Related Products
-
CNC Fiber Laser Cutting Machine For Metal HANS GS 500W Laser Metal CutterUS$ 30000 - 120000MOQ: 1 Set -
1MM to 5MM Stainless Steel Laser Cutting MachineUS$ 30000 - 120000MOQ: 1 Set
-
1KW Professional Fiber Laser Cutting Machine For Metal With CEUS$ 30000 - 120000MOQ: 1 Set
-
Brass / Aluminium Laser Cutting Machine , CNC Fiber Laser Cutting MachineUS$ 30000 - 120000MOQ: 1 Set
-
5MM Sheet Metal Laser Cutting Machine , High Precision ss Laser Cutting MachineUS$ 30000 - 120000MOQ: 1 Set

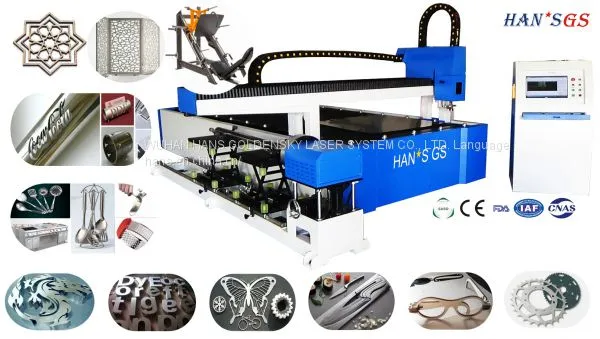

1500W steel pipe Laser Cutting Machine for mechanism parts, kitchenware
Application industry of laser cutter

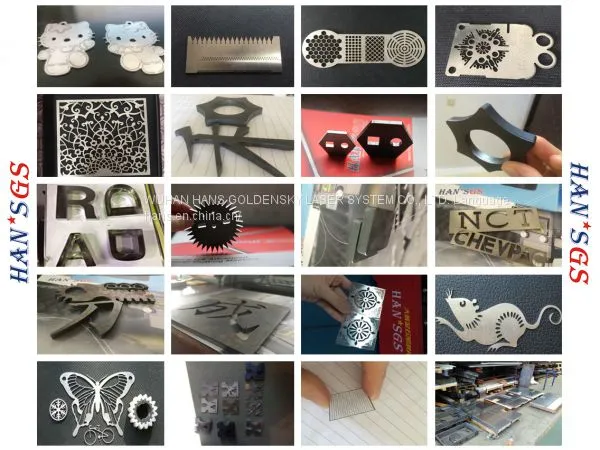

Widely used for metal-sheet processing,advertising trademark, advertising character, high/low voltage electrical cabinet, mechanism parts, kitchenware, cars, mechanical, metal craftwork, saw blade, electronic parts, eye-glasses, spring, circuit board, kettle,medical microelectronics, hardware, knives tool, measurement, instrument,etc.
Specifications
Model |
GS-LFD3015 |
Laser source medium |
Fiber |
Laser power |
500W~1500W |
Cutting range(L*W) |
3000mm × 1500mm |
Z axle stroke |
100 mm |
Max cutting speed |
36m/min |
Max positioning speed |
120m/min |
Wok platform size/Max height of feeding material |
4250x2500mm/more than 120mm |
Cooling form |
water cooling |
Laser wavelength |
1070nm |
Min. cutting gap |
≤0.1mm |
Positioning accuracy of X, Y and Z axles |
±0.03 mm |
Repeated positioning accuracy of X, Y and Z axles |
±0.01 mm |
Thickness of cutting material |
0.2-14mm |
Drive model |
Imported servo motor |
Power requirement |
380V,50/60Hz |
Working temperature |
5℃-45℃ |
Continuous working time |
24 Hours |
Machine weight |
About 6750Kgs |
Outer dimension |
4270mm x2280mm x 1750mm |
Total protection level of power supply |
IP54 |
Product
Automatic focus follow up system
1,Support functions of oscilloscope, survey the electric capacity and height in real-time
2,Board touching alarm and board leakage alarm to prevent the cutting head in accident.
3,Edge inspection and automatic cutting, leapfrog cutting, hole punching separately, the lifting height can be adjustable according to customer
4,Positioning with just one key operation, fast and convenient
High Strength Whole Welding Cutting Bed
1. Our gantry-type flying optical path structure working table has been annealed to relieve internal stress strictly, thus significantly improves the rigidity and stability of the CNC laser cutter.
2. The working table have been handled with high temperature annealing and large CNC gantry milling machine precision processing, can maintain long-term stability and shock resistance, and ensure the precision of the CNC laser cutter.
3. One piece casting aerometal girder with light weight has good dynamic performance. Machining after tempering ensures the integrity, rigidity and stability of the girder.
