2KW CNC sheet metal laser cutting machine | Fiber Laser Cutting Machine Price
Precision and Wear Resistance Screw Drive System
1. Smooth rolling, small friction coefficient, no empty rollingeven in micro feeding, realize nanometer located accuracy.
2. The frictional resistance of rolling is small, and the structure is simple, low abrasion of friction contact surface, thus realize the long time walking accuracy.
3. Optimal design of geometric mechanics structure, steel balls of 45° array, could not only bear the power of warp, anti-warp and cross directions at the same time, but also assure the walking accuracy.
Specifications
Model |
GS-LFDS4020 |
Laser source medium |
Fiber |
Cutting range(L*W) |
4000 mm × 2000 mm |
Z axle stroke |
120 mm |
Max. positioning speed |
120 m/min |
X, Y axle Max. accelerate speed |
1.2 G |
Cooling form |
water cooling |
Laser wavelength |
1070nm |
|
1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional) |
Min. cutting gap |
≤ 0.1 mm |
Positioning accuracy of X, Y and Z axles |
± 0.03 mm |
Repeated positioning accuracy of X, Y and Z axles |
± 0.02 mm |
Thickness of cutting material (according to material) |
0.2-25mm |
Drive model |
Imported servo motor |
Power requirement |
380V,50/60Hz |
Working temperature |
5℃-45℃ |
Continuous working time |
24 Hours |
Machine weight |
About 11570Kgs |
Total protection level of power supply |
IP54 |
Functions of GS-LFDS4020 laser cutter
1. Equipped with exhaust device, have good exhausting effect and little pollution.
2. Small occupied area, high system integration, convenient to operate and maintenance,24 hours continuous working.
3. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.
Applications
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings,
automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators,
household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and
other manufacturing industries.

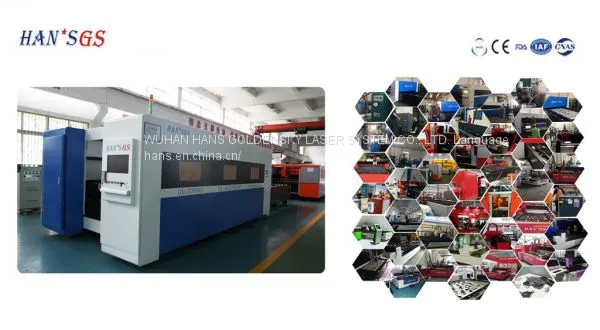

Our company
Cutting Sample
