Stainless Steel Twill Weave Wire Mesh Cloth

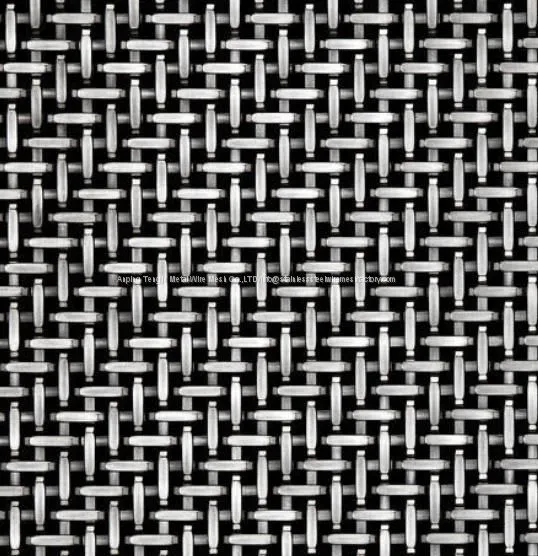

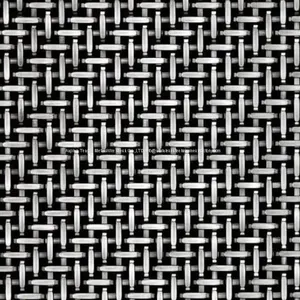

In the Twilled Woven Wire Mesh, the wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric.
Crossed twilled wire mesh are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.
Wire Materials:
Stainless Steel Wire: AISI 304, 304L, 316, 316L, 310, 314, 410, 430.
Twilled woven wire mesh in carbon steel, galvanized steel, aluminum alloy, brass, phosphor bronze and other metals is also supplied.
SS 304 Twill Weave Wire Mesh
Weave |
MESH |
WIRE DIA. |
WIDTH OF OPENING |
% OF |
WEIGH PER 100 SQ’ |
|
INCHES |
MICRON |
|||||
TWILL |
60 X 60 |
.0110 |
.0057 |
145 |
11.7 |
43.3 |
TWILL |
60 X 60 |
.0100 |
.0067 |
170 |
16.2 |
38.3 |
TWILL |
80 X 80 |
.0070 |
.0055 |
140 |
19.4 |
27.7 |
TWILL |
270 X 270 |
.0016 |
.0021 |
53 |
32.2 |
4.8 |
TWILL |
325 X 325 |
.0014 |
.0017 |
43 |
30.0 |
4.3 |
TWILL |
400 X 400 |
.0011 |
.0014 |
36 |
31.4 |
3.4 |
TWILL |
500 X 500 |
.0010 |
.0010 |
25 |
25.0 |
* |
TWILL |
635 X 635 |
.0008 |
.0008 |
20 |
25.0 |
* |
SS 316 Twill Weave Wire Mesh
Mesh |
Wire Dia.(MM) |
Opening (MM) |
Material (AISI) |
250 |
0.040 |
0.063 |
316 |
300 |
0.040 |
0.044 |
316 |
325 |
0.035 |
0.043 |
316L |
350 |
0.030 |
0.042 |
316L |
400 |
0.030 |
0.033 |
316L |
450 |
0.028 |
0.028 |
316L |
500 |
0.025 |
0.026 |
316L |
