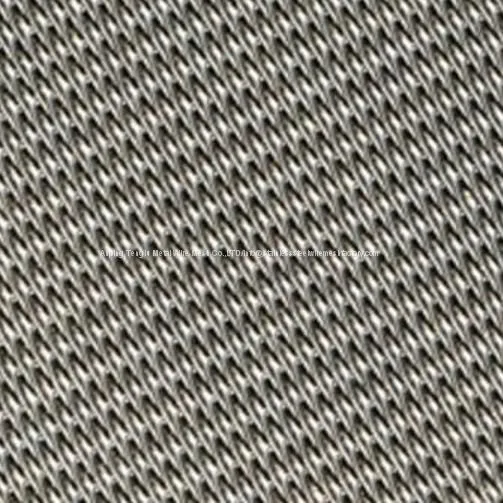

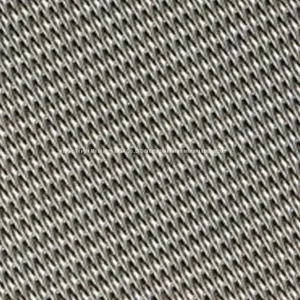

Plain Dutch Stainless Steel Wire Mesh
•Product Description:
With special aperture, plain dutch weave stainless steel wire mesh has higher filtration rate than square weave mesh. Plain dutch weave mesh is mainly used as filter cloth in fine filtration industries.
For plain dutch weave wire mesh,warp wire diameter is larger than weft wire , and each warp wire passes alternately over and under each weft wire, as in normal plain weave. The wires are very closed to each other that not have a straight-through, filtration occurs at the point where warp and weft join.
Plain dutch weave:10X64mesh to 80X700mesh;
•Materials:
Stainless steel 200 series : Grade 201, Grade 202
Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321
Stainless steel 400 series : Grade 410, Grade 420, Grade 430
•Benefits:
“Zero” open weave mesh
Every weft wire tight with each other
High precision and flow rate
Great hardness and tensile strength
•Application:
In the filtration and separation industries, for manufacturing filter discs, drum filters, leaf filters and cartridge filters.
•Specification:
Mesh/Inch |
Wire Diameter |
Aperture |
||
Vertical |
Horizontal |
Vertical |
Horizontal |
Microns |
12mesh |
64mesh |
0.62mm |
0.42mm |
270-290um |
14mesh |
80mesh |
0.50mm |
0.30mm |
220-240um |
24mesh |
110mesh |
0.38mm |
0.25mm |
115-125um |
30mesh |
160mesh |
0.23mm |
0.18mm |
95-100um |
40mesh |
200mesh |
0.18mm |
0.14mm |
70-75um |
50mesh |
250mesh |
0.14mm |
0.11mm |
60-63um |
