Twilled Weave Stainless Steel Wire Mesh
•Product Description:

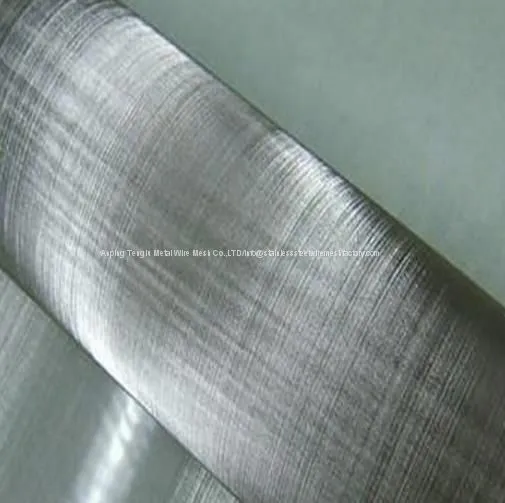

Twilled weave stainless steel wire mesh/cloth is producing square openings, it can be made from larger diameter wire than plain weave wire mesh. twilled weave is the most commonly wire mesh used in the filtration and separation industries.
For twilled weave,wire diameters of warp and weft are the same size, and each warp wire passes alternately over two and then under two weft wire, and each weft wire passes over/under two warp wire.
•Benefits:
Square hole or rectangular hole
High screening precision
Small opening size > 0.025 mm
Flexible, strength, and durability
Good corrosion-resistance
Low hardness and easy to clean
•Materials:
Stainless steel 200 series : Grade 201, Grade 202
Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321
Stainless steel 400 series : Grade 410, Grade 420, Grade 430
•Application:
In the water, oil & gas industries, for the raw material of filter element.
In the petrochemical & chemical industries, for test sieve and structured packing.
•Packaging :Wooden box
•Our Service:
Materials certification
Customized size
•Specifications:
Stainless Steel Wire Mesh Specification(Twill Weave) | |||
Mesh |
Wire Dia.(mm) |
Opening (mm) |
Material (AISI) |
250 |
0.040 |
0.063 |
316 |
300 |
0.040 |
0.044 |
316 |
325 |
0.035 |
0.043 |
316L |
350 |
0.030 |
0.042 |
316L |
400 |
0.030 |
0.033 |
316L |
450 |
0.028 |
0.028 |
316L |
500 |
0.025 |
0.026 |
316L |
