Home > Construction & Decoration > Wire Mesh > Stainless Steel Wire Mesh > 904L Stainless Steel Wire Mesh

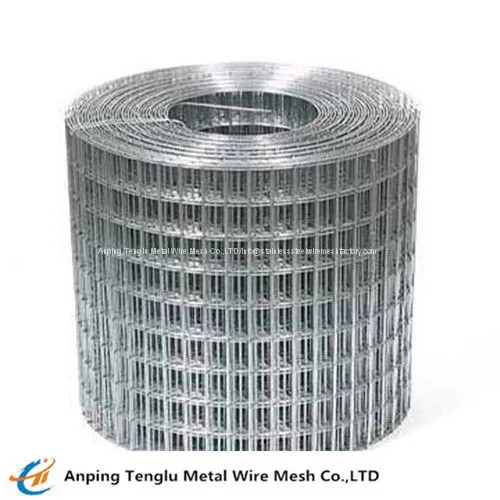

904L Stainless Steel Wire Mesh

US$ 1 - 100 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Technique:

Woven

Contact Supplier Request Quote Chat Now

Anping Qianpu Wire Mesh Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Technique Woven

Anping Tenglu Metal Wire Mesh Co.,LTD

904L Stainless Steel Wire Mesh

•Product Description:

904L super austenitic stainless steel mesh belongs to low carbon, high nickel and molybdenum austenitic stainless acid-resistant steel. This stainless steel mesh has superior corrosion resistance. In the non-oxidizing acid such as sulfuric acid, acetic acid, formic acid, phosphoric acid, it is with good corrosion resistance. In a neutral medium chlorine ion environment, has very good pitting resistance, at the same time has good resistance to crevice corrosion and stress corrosion. It can be used in various concentration of sulfuric acid under 70℃. Under normal conditions, the resistance to corrosion of acetic or mixed formic acid and acetic of any concentration and any temperature are also very good.

•Materials:904L (UNS: NO8904, EN: 1.4539, 00Cr20Ni25Mo4.5Cu)

•Feature:

Corrosion resistance

Anti-acid and alkali

Good filter performance

Long using life

•Application:

Petroleum, petrochemical equipment, such as the reactor of petrochemical equipment.

Sulfuric acid storage and transportation equipment, such as heat exchangers;

Power plant flue gas desulfurization device, main parts are: absorption tower body, the flue, door plank, internal parts, spray system, etc;

Scrubber and fan in the organic acid processing system;

Water treatment plant, water heat exchanger, papermaking equipment, sulfuric acid, nitric acid equipment, acid, pharmaceutical industry and other chemical equipment, pressure vessel, food equipment;

Pharmaceutical factory: centrifuge, reactor, etc.

•Packaging :Wooden box

•Our Service:

Materials certification

Customized size

•Specifications:

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	Cu
904L	Min	-	-	-	-	-	19.0	4.0	23.0	1.0
	Max	0.020	2.00	1.00	0.045	0.035	23.0	5.0	28.0	2.0

No	Mesh	Wire Diameter mm	Gauge	% Open Area	Wt/Sqm kgs	Aperture Microns
1	8	0.588	24	67.94	1.228	2617
2	8	0.457	26	73.28	0.824	2718
3	8	0.4	27	76.39	0.631	2775
4	8	0.376	28	77.72	0.558	2799
5	10	0.558	24	60.89	1.535	1982
6	10	0.457	26	67.25	1.03	2083
7	10	0.376	28	72.59	0.697	2164
8	12	0.558	24	54.23	1.842	1559
9	12	0.457	26	61.48	1.236	1660
10	12	0.4	27	65.78	0.947	1717
11	12	0.376	28	67.63	0.836	1741
12	12	0.315	30	72.45	0.587	1802
13	12	0.3	30.5	73.66	0.532	1817
14	14	0.558	24	47.95	2.149	1256
15	14	0.457	26	55.97	1.441	1357
16	14	0.4	27	60.77	1.104	1414
17	16	0.457	26	50.71	1.647	1131
18	16	0.4	27	55.96	1.262	1188
19	16	0.376	28	58.24	1.115	1212
20	16	0.315	30	64.25	0.783	1273
21	16	0.3	30.5	65.78	0.71	1288
22	18	0.457	26	45.72	1.853	954
23	18	0.376	28	53.81	1.255	1035
24	20	0.457	26	40.98	2.059	813
25	20	0.376	28	49.55	1.394	894
26	20	0.315	30	56.55	0.978	955
27	20	0.3	30.5	58.34	0.887	970
28	20	0.274	32	61.51	0.74	996
29	20	0.264	32.5	62.75	0.687	1006
30	24	0.315	30	49.33	1.174	743
31	24	0.3	30.5	51.34	1.065	758
32	24	0.274	32	54.92	0.888	784
33	24	0.264	32.5	56.33	0.825	794
34	24	0.193	36	66.85	0.441	865
35	28	0.315	30	42.61	1.37	592
36	28	0.3	30.5	44.8	1.242	607
37	28	0.274	32	48.71	1.036	633
38	28	0.264	32.5	50.26	0.962	643
39	30	0.315	30	39.43	1.468	532
40	30	0.3	30.5	41.69	1.331	547
41	30	0.274	32	45.75	1.11	573
42	30	0.264	32.5	47.36	1.031	583
43	30	0.234	34	52.36	0.81	613
44	40	0.274	32	32.32	1.48	361
45	40	0.264	32.5	34.14	1.374	371
46	40	0.254	33	36	1.272	381
47	40	0.234	34	39.88	1.08	401
48	40	0.193	36	48.45	0.735	442
49	40	0.173	37	52.93	0.59	462
50	40	0.152	38	57.86	0.456	483
51	50	0.193	36	38.45	0.918	315
52	50	0.152	38	49.11	0.57	356
53	60	0.193	36	29.6	1.102	230
54	60	0.173	37	34.97	0.885	250
55	60	0.152	38	41.08	0.683	271
56	80	0.122	40	37.91	0.587	196
57	80	0.102	42	46.07	0.41	216
58	100	0.112	41	31.25	0.618	142
59	100	0.102	42	35.81	0.513	152
60	100	0.091	43	41.18	0.408	163
61	100	0.081	44	46.39	0.323	173
62	120	0.091	43	32.5	0.49	121
63	120	0.081	44	38.11	0.388	131
64	150	0.07	45	34.41	0.362	99
65	150	0.063	45.5	39.43	0.294	106
66	170	0.063	45.5	33.45	0.333	86
67	170	0.05	47	44.27	0.21	99
68	200	0.05	47	36.76	0.247	77
