Product Name |
Wet Type Overflow Ball Mill ( Ball mill ) |
Minimum Output Size |
0.045mm (325 mesh) |
Capacity |
Up to 160t/h |
Working Power |
15 - 1250 kw |
Saving Energy |
20% - 30% |
Application |
For Grinding Metal ore & Non-metallic ore (Cu-Pb-Zn/Silver/Hematite/Magnetite/Antimony/Chrome/Nickel/Tin...) |
Delivery Time |
15-30 days |
Shipping Port |
Qingdao, China |
Products Features |
high efficiency, huge processing capacity, smooth operation |
Service |
Engineer service in customer's country |
Past Exported Countries |
India/ Ethiopia/ Sudan/ Iran /Brazil / Russia/ Zimbabwe/ Tanzania/ Indonesia |
Structure:

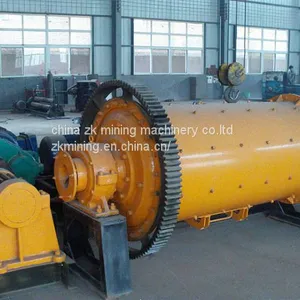

Overflow ball mill is is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.
OUR ADVANTAGE
1. The motor power matched the overflow ball mill can be reduces by 18%-25%, energy saving should be more than 20%.
2. The customers don’t need change the main bearing frequently so that can save a lot of maintenance costs and work time.
3. The main bearing adopts grease lubrication, which can be protected from heavy metal pollution.
4. The whole processing is smooth and reliable.
Specifications:
Type |
Rotation speed(r/min) |
Rod weight(t) |
Mater-in grade(mm) |
Mater-out grade(mm) |
Capacity(t/h) |
Power (kw) |
Dimensions(mm) |
Weight(kg) |
MB0918 |
29.0-31.3 |
2.3 |
0.16-5 |
1.6-6 |
22 |
5900x2356x2015 |
6200 |
|
MB0924 |
29.0-35.4 |
3.1 |
0.16-5 |
2.9-10 |
30 |
5250x2480x2127 |
6600 |
|
MB1224 |
27.0-34.0 |
6.5 |
0.16-5 |
5.0-13 |
55 |
5829x2867x2540 |
13500 |
|
MB1530 |
26.5-29.5 |
11.5 |
0.16-5 |
6.0-25 |
95 |
7635x3329x2749 |
18170 |
|
MB1830 |
21.6-22.8 |
17.5 |
0.16-5 |
4.8-28 |
155 |
8007x3873x3023 |
35000 |
|
MB2130 |
19.0-21.0 |
23.5 |
0.16-5 |
12.6-30 |
155 |
9000x2800x3800 |
43000 |
|
MB2136 |
19.0-21.0 |
23.2 |
0.16-5 |
15.1-45 |
210 |
9600x2800x3800 |
58000 |
|
MB2736 |
17.2-18.5 |
47.0 |
0.16-5 |
25.0-75 |
400 |
10870x6100x4950 |
71500 |
|
MB2740 |
17.2-18.5 |
51.0 |
0.16-5 |
27.7-90 |
420 |
11500x6100x4950 |
73600 |
