Mining Ore Screen Linear Apron Vibrating Grizzly Feeder

Mining Ore Screen Linear Apron Vibrating Grizzly Feeder thumbnail-1
Mining Ore Screen Linear Apron Vibrating Grizzly Feeder thumbnail-2
Mining Ore Screen Linear Apron Vibrating Grizzly Feeder thumbnail-3
Mining Ore Screen Linear Apron Vibrating Grizzly Feeder photo-1
Mining Ore Screen Linear Apron Vibrating Grizzly Feeder photo-2

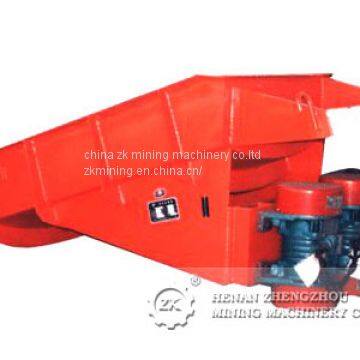

Mining Ore Screen Linear Apron Vibrating Grizzly Feeder photo-3
US$ 7000 - 15000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZK
Place of Origin:
China
Certification:
ISO,CE
Contact Supplier Request Quote Chat Now
Henan Nongyi
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,tianjin,qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZK
Place of Origin China
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1year
Weight 1-5T
Power Type Diesel
Application Ore,Sand,Coal
Condition New
Power(W) 1.5-60

Hot Sale Mining Ore Screen Linear Apron Vibrating Grizzly Feeder

Electromagnetic vibrating feeder can convey the granular, block materials evenly and continuously. Vibrating grizzly feeder contains plate type feeder and type structure feeder. Steel plate feeder transports the material uniformly. Grate type feeder both have the function of conveying and sieving.Vibrating feeder is widely used in the screening equipment of metallurgy, crushing, mineral processing, coal, chemical industry, building materials,  abrasive and other industries.

The vibrating feeder is composed of feeding tank, exciter, spring support and transmission device. The vibrating resource is exciter, which is consist of two eccentric shafts and gear pair. And the working principle of exciter is that drive shaft is driven by a motor through a triangle belt, and the upper gear of the driving shaft is meshed with the passive shaft to rotate, then two eccentric shafts rotate reversely at the same time to shake the tank. So vibrating feeder can achieve the goal of convey material continuously.

Advantage

i. Easy to install and maintenance and low cost.

ii.Low noise can improve working condition.

iii.The feeding is even and the exciting force can be adjusted.

iv.Because of the strong vibration of the screen box, the phenomenon of material clogging is reduced.



Model

Screen

layer

deck size

(m³)

Vibration

frequency

(r/min)

Double-

Amplitude(mm)

Capacity

(m³/h)

Motor  power(kw)

2YK1224

2

2.88

970

6-8

20-120

5.5

YK1235

1

4.2

970

6-8

20-150

5.5

2YK1235

2

4.2

970

6-8

20-150

7.5

3YK1235

3

4.2

970

6-8

20-150

7.5

4YK1235

4

4.2

970

6-8

20-150

11

YK1545

1

6.75

970

6-8

20-150

11

2YK1545

2

6.75

970

6-8

20-150

15

3YK1545

3

6.75

970

6-8

20-150

15

4YK1545

4

6.75

970

6-8

20-150

18.5

YK1548

1

7.2

970

6-8

20-150

11

2YK1548

2

7.2

970

6-8

20-150

15

3YK1548

3

7.2

970

6-8

20-150

15

4YK1548

4

7.2

970

6-8

20-150

18.5

YK1860

1

10.8

970

6-8

32-350

15

2YK1860

2

10.8

970

6-8

32-350

18.5

3YK1860

3

10.8

970

6-8

32-350

18.5

4YK1860

4

10.8

970

6-8

32-350

22

YK2160

1

12.6

970

6-8

66-720

18.5

2YK2160

2

12.6

970

6-8

66-720

22

3YK2160

3

12.6

970

6-8

66-720

30

4YK2160

4

12.6

970

6-8

66-720

30

YK2460

1

14.4

970

6-8

75-750

18.5

2YK2460

2

14.4

970

6-8

75-750

30

3YK2460

3

14.4

970

6-8

75-750

30

4YK2460

4

14.4

970

6-8

75-750

30

2YK2475

2

18

970

6-8

120-900

30

3YK2475

3

18

970

6-8

120-900

37

4YK2475

4

18

970

6-8

120-900

45

YK3060

1

18

970

6-8

200-900

30

2YK3060

2

18

970

6-8

200-900

37

3YK3060

3

18

970

6-8

200-900

45

4YK3060

4

18

970

6-8

200-900

45


Product Tags: Apron Vibrating Grizzly Feeder , Linear Vibrating Feeder , Screen Vibrating
