Pull String Displacement Sensor

Negotiable MOQ: 30 Units (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Place of Origin:

China

Xian Chuangjin Electronic Technology Co.,LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name CJ

Place of Origin China

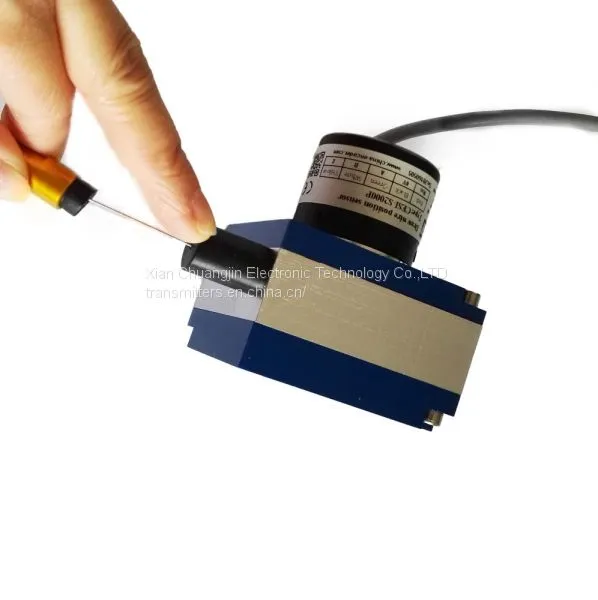

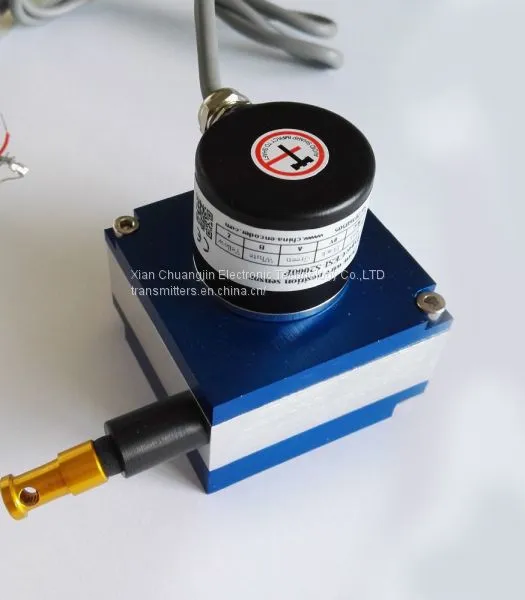

Pull String Displacement Sensor
Description
Draw-wire Position Sensor is a highly efficient linear displacement measuring device, with ingenious design principle, through scientific combination of the special steel cable and angle measurement components (potentiometer or encoder), it make linear displacement motion of an object convert into electric signal that measurable and linearly proportional, thereby achieve accurate displacement measurement data output.

Application
Linear guide system, the direct determination of the guide element, such as: the length limit, gantry cranes, level measurement
Hydraulic system, with the piston-oriented systems or hydraulic cylinder, the displacement sensor deflection of these devices to collect data
Scalable systems, such as presses, lifts, bending machine, bending machine
Chains, cranes and cable winch to adjust, such as forklifts, stage equipment, lifts and cranes device.

Technical Parameters
Sensing method	Potentiometer
Stoke Range	400mm,800mm,1000mm,1500mm
Voltage Supply	12DC、24DC
Output Signal	0-5V, 0-10V, 4-20mA, 0-5 kΩ, 0-10 kΩ
Speed Max.	1000mm/S
Cable Diameter	Φ0.6mm
Linearity	0.10%
Force of Retractile Spring	About 5N
Operating Temp.	-40°C~85°C
Weight	500G
Lifetime	1×105 strokes
Protection Class	IP54
