Liquid Differential Level Transmitters

Xian Chuangjin Electronic Technology Co.,LTD
Liquid Differential Level Transmitters thumbnail-1
Liquid Differential Level Transmitters thumbnail-2
Liquid Differential Level Transmitters thumbnail-3
Liquid Differential Level Transmitters photo-1

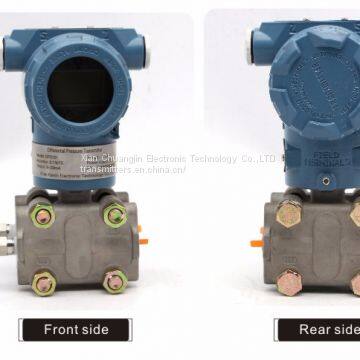

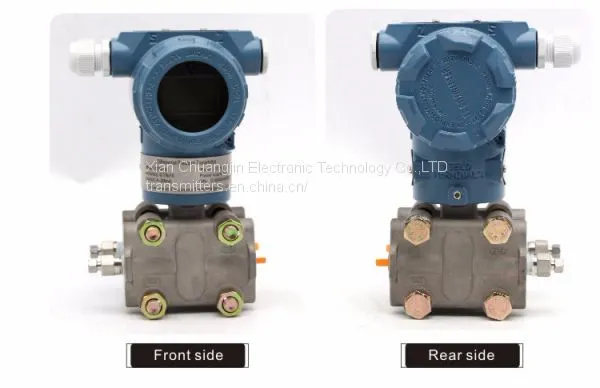

Liquid Differential Level Transmitters photo-2

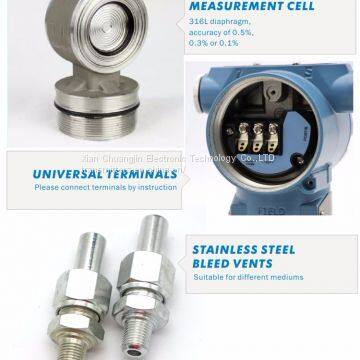

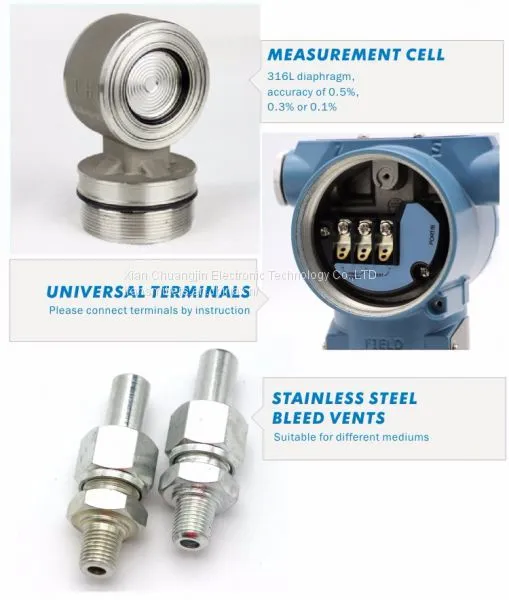

Liquid Differential Level Transmitters photo-3
Negotiable MOQ: 30 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
cj
Place of Origin:
China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name cj
Place of Origin China
Liquid   differential Level transmitters
Quick   Details
Output:4-20mADC / HART
Accuracy:±0.075 %FS
Power supply:17.5 - 45 VDC
Pressure range:0-7.5 KPa to   0-41000 Kpa
Ingress protection:IP65
Medium:Liquid, gas, air, steam   etc.
Filling liquid:Silicone /   fluorine oil
Insulation strength:
Temp. effect:≤0.45% / 55℃


Feature
Pressure Range: 0-7.5KPa to 0-41000KPa
Solid, plug-in printed circuit board
Compact structure,   anti vibration


Electrical   technical parameters
Power supply17.5   - 45VDC
HART communication load250   - 1500 Ohm
 Refresh time0.25   Sec.
Output signal4   - 20mA DC / HART
 Insulation strength100V   AC
Start-up time5   Sec.


Perfermance techanical parameters
Accuracy±0.075%FS
Relative humidity5% -   98%
Medium temp. (Max.)-40   - 104℃
Temp. effect≤0.45%   / 55℃
Operating temp.-40   - 85℃
Operating temp. (LCD Display)-20   - 70℃
Stability±0.1%


Mechanical techanical parameters
Isolation diaphragm316LSST
Bleed valve316LSST
Joint316LSST
O ring gasketNitrile   rubber
Electric boxAluminium   alloy
Joint boltGalvanized   carbon steel
Flow connection1/4   - 18NPT
Joint (optional)1/2   - 14NPT
Electrical connection1/2   - 14NPT
Weight3.9kg
Ingress protectionIP65


Product Tags: Liquid differential Level transmitters , Liquid differential Level transducers
