Home > Electrical & Electronics > Sensor > Pressure Sensor > MB7040 I2CXL-MaxSonar-WR High Performance Ultrasonic Rangefinder

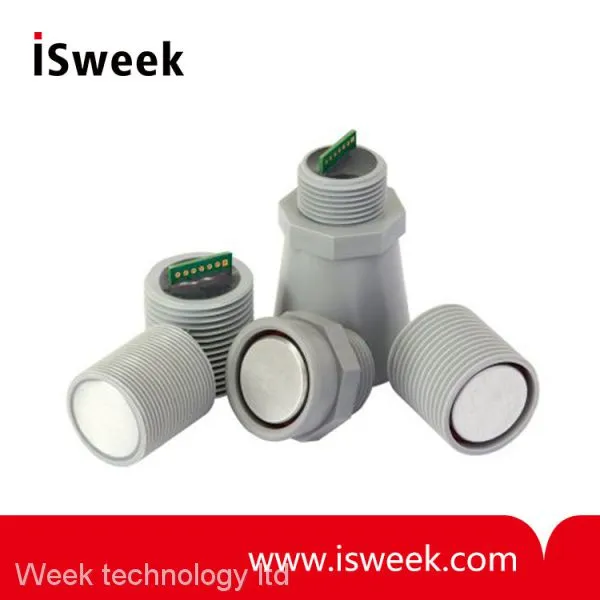

MB7040 I2CXL-MaxSonar-WR High Performance Ultrasonic Rangefinder

Name: MB7040 I2CXL-MaxSonar-WR High Performance Ultrasonic Rangefinder
Brand: MaxBotix Inc.
SKU: 157659558

MB7040 I2CXL-MaxSonar-WR High Performance Ultrasonic Rangefinder thumbnail-1

MB7040 I2CXL-MaxSonar-WR High Performance Ultrasonic Rangefinder photo-1

US$ 99 - 250 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

MaxBotix Inc.

Place of Origin:

United States

Model Number:

MB7040

Contact Supplier Request Quote Chat Now

Week Technology Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name MaxBotix Inc.

Place of Origin United States

Model Number MB7040

Usage Other, Ultrasonic Rangefinder

Theory Ultrasonic Sensor

MB7040 I2CXL-MaxSonar-WR
High Performance Ultrasonic Precision Rangefinder

MB7040 I2CXL-MaxSonar-WR Ultrasonic Rangefinder Product Description
Weather Resistant (IP67) Sensors, and Optional Chemical Resistance
The industrial outdoor I2CXL-MaxSonar-WR sensors have a robust PVC housing designed to meet IP67 water intrusion. The sensors provide short to long distance detection and ranging with a narrow beam pattern. The I2CXL‑MaxSonar‑WR outdoor ultrasonic sensors have high power output, noise rejection, auto calibration, and factory calibrated beam patterns.

In addition to the standard I2CXL‑MaxSonar‑WR, has developed the F‑Option for additional protection necessary in a few hazardous chemical environments. Extremely corrosive gases or liquids can degrade or compromise the operation of the sensing unit. As a result, we offer a more chemically inert seal which allows our sensors to operate in all but the harshest of chemical environments. In addition to the chemical resistance the sensor has improved performance in wet or dust environments.

MB7040 I2CXL-MaxSonar-WR Ultrasonic Rangefinder Product Specifiations
• Resolution of 1 cm
• Up to 40Hz reading rate
• Simple I2C bus interface
• Easy control of multiple sensors
• Control up to 127 sensors using two wires
• 42kHz Ultrasonic sensor measures distance to objects
• RoHS Compliant
• I2C Bus interface
• Operates from 3.0-5.5V
• Low 3.4mA average current requirement
• Small, light weight module
• Designed for easy integration into your project or product
• Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
• Real-time automatic calibration (voltage, humidity, ambient noise)
• Firmware filtering for better noise tolerance and clutter rejection
• 200,000+ Hours Mean Time Between Failure
• Weather Resistant (IP67), optional Chemical Resistant F-Option
• Available in multiple mounting packages – 3/4" NPS, Ultra-Compact, 1" NPS, 1" BSPP, 30mm1.5
• IP67 rated, I2C interface ultrasonic sensor
• Maximum range of 765 cm (300 inches)
• Long-range, narrow detection zone

MB7040 I2CXL-MaxSonar-WR Ultrasonic Rangefinder Features and Benefits
• Low power consumption
• Narrow, controlled beam
• Easy to use interface
• Detects smaller objects
• Can be powered by many different types of power sources

MB7040 I2CXL-MaxSonar-WR Ultrasonic Rangefinder Applications and Uses
• People detection
• Security
• Motion detection
• Useable with battery power
• Autonomous navigation
• Educational and hobby robotics
• Collision avoidance

MB7040 I2CXL-MaxSonar-WR Ultrasonic Rangefinder Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
