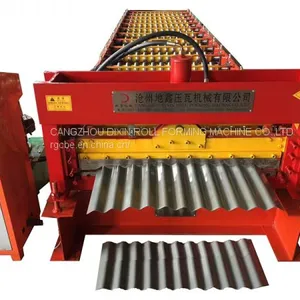

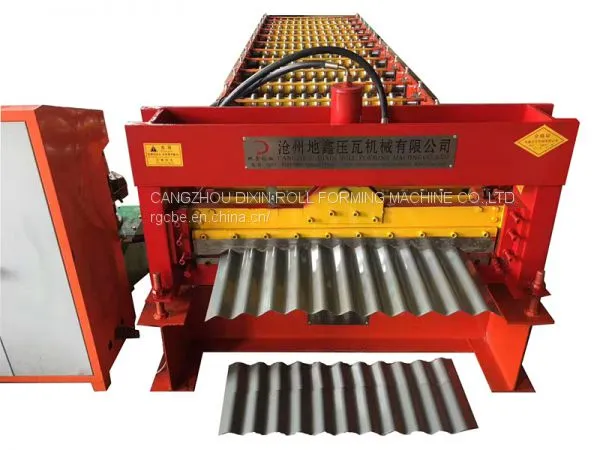

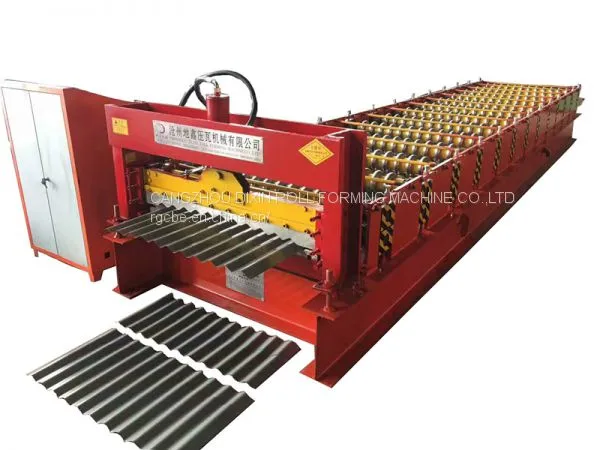

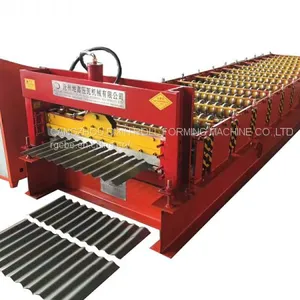

China Hot Sale Galvanized Steel Roofing Sheet and Wall Sheet Roll Forming Machine
US$ 6000 - 9000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DIXIN
Place of Origin:
China
Model Number:
Galvanized Steel Roofing Sheet
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Related Products
-
DIXIN Popular Design Metal Roof Tile Making MachineUS$ 6000 - 9000MOQ: 1 Set -
Sheet Metal Roll Forming MachineUS$ 6000 - 8000MOQ: 1 Set
-
Roof Panels Corrugated Color Steel Roll Forming MachineUS$ 6000 - 8500MOQ: 1 Set
-
Roof Tile Corrugated Color Steel Roll Forming MachineUS$ 6000 - 8500MOQ: 1 Set
-
Cangzhou Dixin Automatic Metal Roof Ridge Cap Roll Forming Machine Hot SaleUS$ 6500 - 9500MOQ: 1 Set
Brand Name
DIXIN
Place of Origin
China
Model Number
Galvanized Steel Roofing Sheet
Use
Roof
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12months
Weight
4.5ton
Dimension(L*W*H)
6500*1500*1300mm
Production Capacity
10-15m/min
Condition
New
Voltage
380V.50HZ
Power(W)
4kw+4kw
Type
Tile Forming Machine
Tile Type
Steel
China hot sale Galvanized Steel Roofing Sheet and Wall Sheet Roll Forming Machine
| No | ||
| 1 | suitable material | Colored Steel plate, galvanized board, Aluminum plate |
| 2 | Input width | 1000mm |
| 2 | Effective width of sheet | 850mm |
| 3 | Rows of rollers | 13rows |
| 4 | material of roller | high grade 45# steel(plated chrome on surface) |
| 5 | Total power Main motor power: 4kw Hydraulic station power: 4kw |
4kw+4kw |
| 6 | Thickness of raw material | 0.3-0.8mm |
| 7 | Productivity | 10-12m/min |
| 8 | diameter of shaft | 75mm |
| 9 | Voltage | 380V 50Hz 3phases or according to customer's request |
| 10 | Main frame | 300 H steel |
| 11 | Medium plate thickness | 16 mm |
Details of metal roofing corrugated machine from china
| Introduction of Components | |
| Manual Uncoiler |
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. |
| Loading capacity:5T | |
| Inner diameter: 450-508mm | |
| Entry Beach |
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |

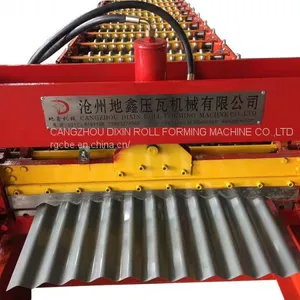

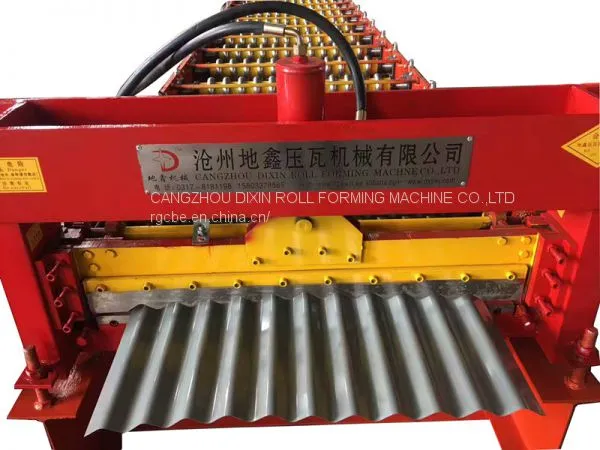

| Main Roll Forming Machine |
In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. |
| Material of rollers:45# steel, surface hard chromium plating. | |
| Main power: 4kw(cycloidal planetary gear speed reducer) | |
| Shearing Mechanism |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. |
| Material of blades: Cr12,quenching treatment | |
| Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine. |
|
| Hydraulic Station |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. |
| Power:4kw ; Hydraulic oil: 40# | |
| Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves. | |

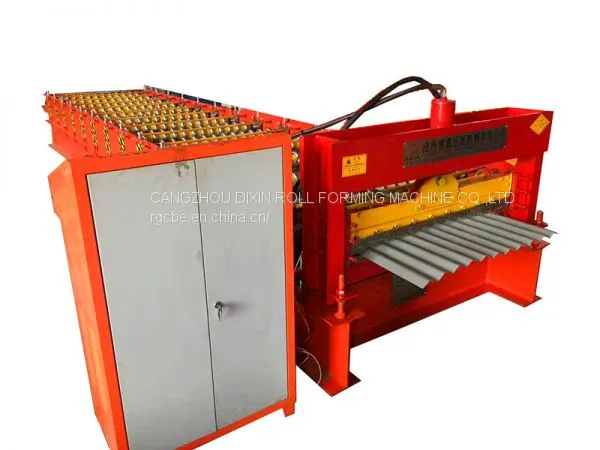

| Computer Control Cabinet |
It adopts Panasonic or Delta PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. |
| Output Table |
It is used to load the finished sheet. This kind is convenient for shipment. . |
5.Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
6.Warranty
12 months, and lifelong technical support service
7 Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
8. Package
Standard export package, water-proof package, covered with plastic film.
