Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine

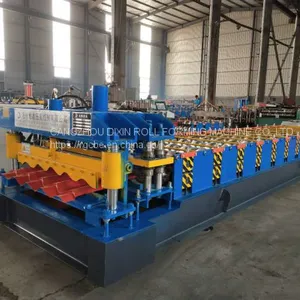

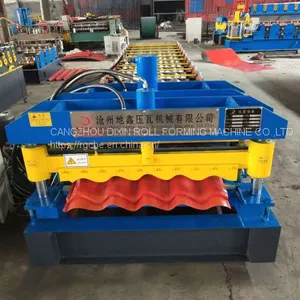

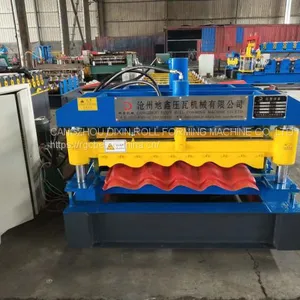

Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine thumbnail-1

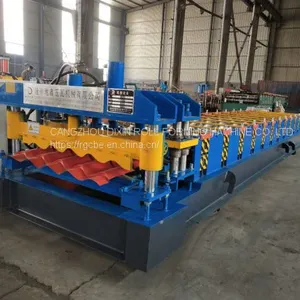

Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine thumbnail-2
Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine thumbnail-3
Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine thumbnail-4
Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine thumbnail-5
Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine photo-1
Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine photo-2
Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine photo-3
Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine photo-4
Color Steel Glazed Tile Making Machine/glaze Tile Metal Roof Roll Forming Machine photo-5
US$ 8000 - 10500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DIXIN
Place of Origin:
China
Model Number:
roof tile making machine
Contact Supplier Request Quote Chat Now
Cangzhou Dixin Roll Forming Machine Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DIXIN
Place of Origin China
Model Number roof tile making machine
Use Roof
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 3TON
Dimension(L*W*H) 6500*1300*1100
Production Capacity 2-4m/min
Condition New
Voltage 380V 50Hz 3phases or custome
Power(W) 4+4KW
Type Tile Forming Machine
Tile Type Steel

 color steel glazed tile making machine/glaze tile metal roof roll forming machine

Our new factory have 20 years' experience, ISO, CE certificated, we always keep superior quality and competitive offers for customers. Our machines are sold to the USA market, and feedback very well. Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.

1.Panel drawing according to customer request

2.Flow chart : Decoiler-- Roll FormingF--PLC System—Hydraulic System –Pressing --Cutting —Output Table

3.Technical parameters

Weight capacity of decoiler 3T
2.Appearance Size(L*W*H) 6500*1400*1300
3.Raw material /feeding sheet material  colored steel & galvanized steel
4.Roller material 45# high grade steel
5.Shaft material 45# high grade steel
6.Kind of drive chain drive
7.Cutting system automatic hydyaulic cutting
8.Cutting blade material Cr 12  high grade steel
9.Frame material 300 H-high grade steel
10. Control system totally automatic PLC control system with touch screen
11.Total power  4+4 kw
12.Roller stations  13 rows
13.Speed of production  2-4m/min
14.Thickness of colored steel 0.3-0.8mm
15.Feeding width 914mm
16.Effectiv width 712mm
15.Frame material 300 H-steel


4.Payment term
 TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5.Warranty
12 months, and lifelong technical support service
6.Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
7. Package
Standard export package, water-proof package, covered with plastic film.

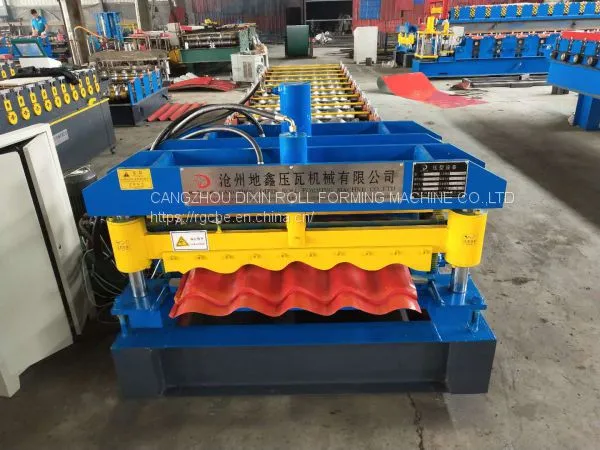

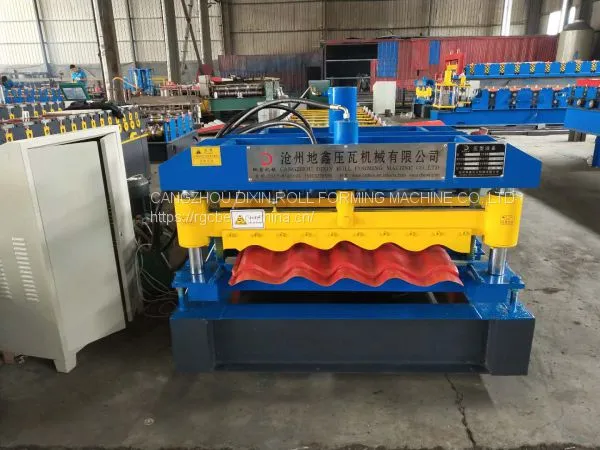

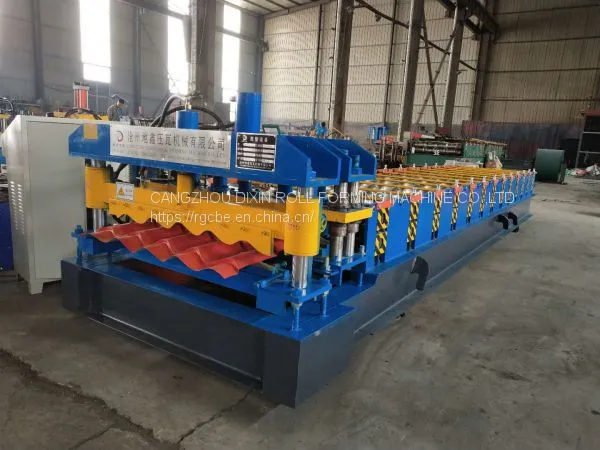

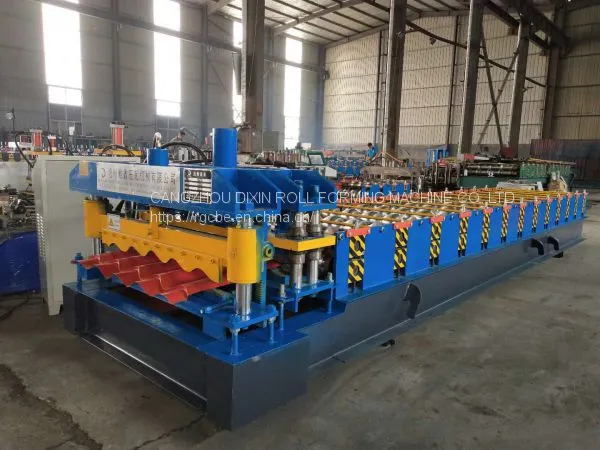

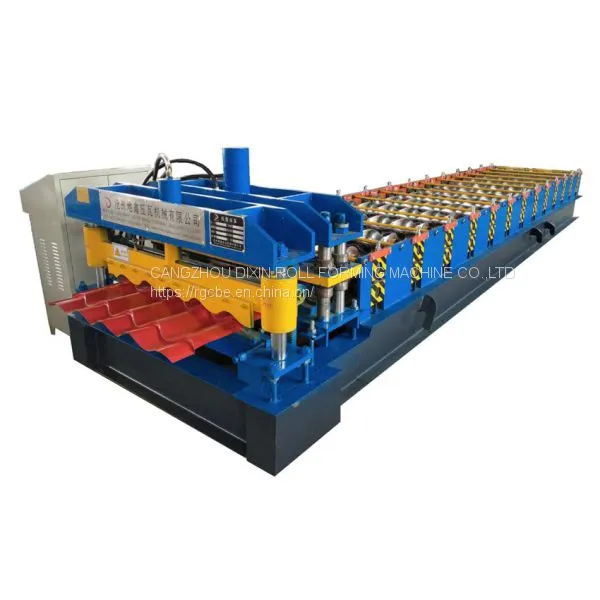

8.Some pictures of the machine for your reference.

Customer visit

Machine packing and shipping

If you want to know more details of the machine,please contact us.

Contact: Bella  Whatsapp: +8618231723279

Our official website:

welcome you visit our factory.
