Roof panels corrugated color steel roll forming machine
The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request
1.Panel drawing according to your request

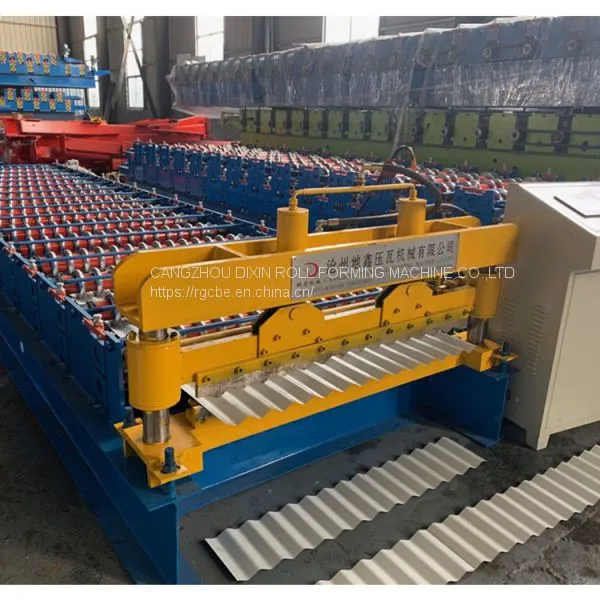

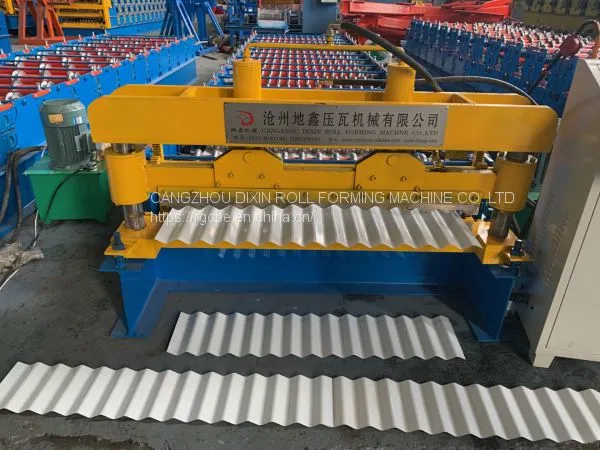

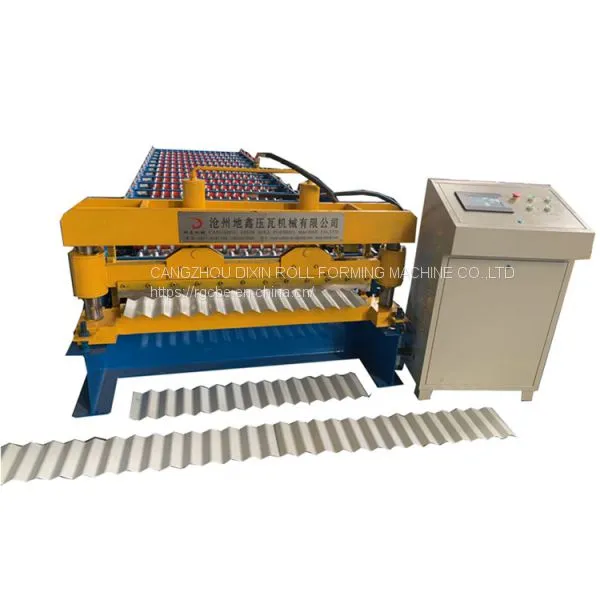

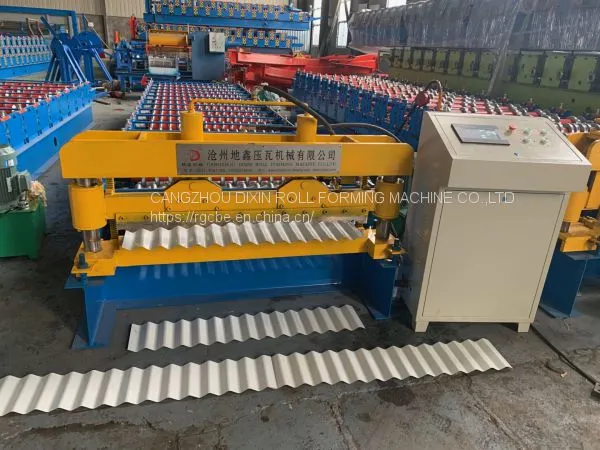

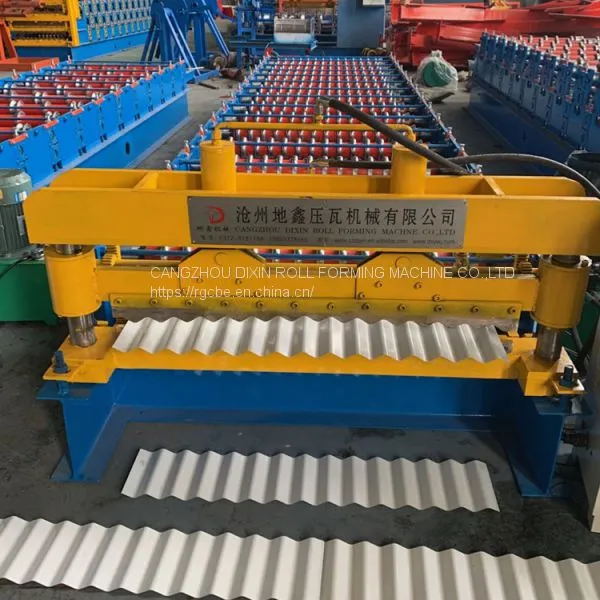

2.some machine pictures for your reference.
3.Machine Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: as drawing
(4) Feeding width: 914mm/950mm/1000mm/1200mm/1250mm
(5) Main motor power: 4kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16mm
(12) Control systerm: Delta PLC computer control with touch screen
(13) Cutting blade material:Cr12
(14) Speed:about :10-12 meter/min
(15) Drived by Chain:1 inch
(16) Machine size (mm):6500*1400*1300mm
(17) Machine weight: about 2.5ton
4.About our company
Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.
Packing and shipping
Customer visit
welcome visit our factory ,kindly please send your details quotation
t'sapp:008618231723279
