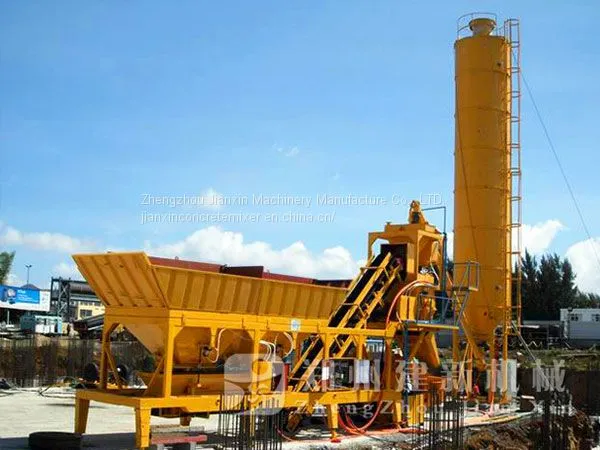

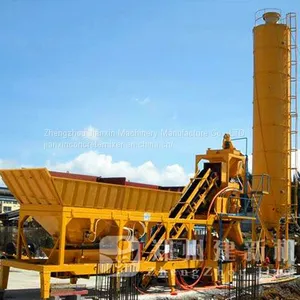

1. A brief introduction of the Jianxin HZS35 concrete mixing plant
The HZS35 type mixing station also known as a simple HZS35 concrete mixing station, also known as: 35 mixing equipment, 35 plant, 35 concrete mixing station, Henan Jianxin machinery manufacturing HZS35 concrete mixing station made by twin shaft mixer, batching machine and related equipment flexible group, can mixing of dry hard concrete, light aggregate concrete and mortar, is a kind of high efficiency mixing station project.
HZS35 mixing plant using concrete mixer (JS750 twin shaft compulsory mixer), every discharging is 0.75 cubic, each cycle is 72 seconds, with the batching machine, the theory of productivity is 35m3 /h.
2. The Application of HZS35 concrete mixing plant
HZS35 engineering mixing station is widely used in highway, bridge, power station, dam engineering and other field construction works. The user can self make dump trucks, dump trucks, truck with it. HZS35 concrete mixing plant also can be restructured according to the special requirements of users to meet user needs. It can be used alone, and can also be used as the auxiliary host of mixing station.
3. Main features of Jianxin HZS35 concrete mixing plant equipment
1. ZS35 concrete mixing plant equipment adopts modular structure, unit modular, installation and removal is very convenient.
2.HZS35 stir using JS750 type double axle forced type concrete mixer and aggregate host station, good mixing quality, high efficiency.
3. Aggregate batching using PLD1200 type batching machine, accurate measurement, high production efficiency.
4. Powder, water and additives are all measured by electronic scale, and the burden precision is high.
5. The water supply system adopts the principle of siphon water pump to accelerate the flow of water and spray evenly.
6. Electrical control system adopts imported components, reliable performance, can be manual, automatic control, easy to operate.
4. Technical parameters of HZS35 concrete mixing plant
Overall plant Model HZS35
Max. output（m3/h） 35
Discharging height (m) 2.5-3.8
Working cycle time（s） 72
Dimension(L*W*H)（mm） 18815×11525
×13250
capacity（kw） 64.4
Mixer Model JS750
Batching machine Model PLD1200
Pneumatic system Air compressor modelv VA-100
rated discharge pressure（MPa） 0.7
discharge rate (m3/min) 0.71
power of motor（kw） 5.5
weighing system Aggregate weighing accuracy ±2%
Cement weighing accuracy ±1%
Water weighing accuracy ±1%
Note: the price if different because of different configurations of HZS35 mixing. HZS35 project site selection and site planning and other technical problems, please consult us!
