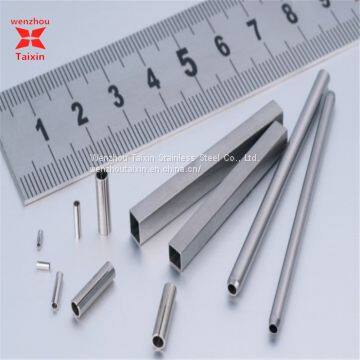

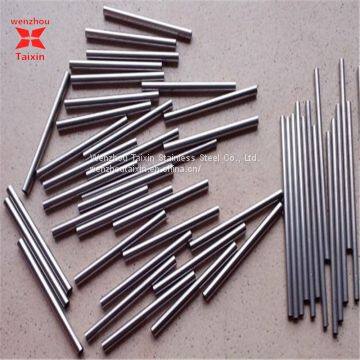

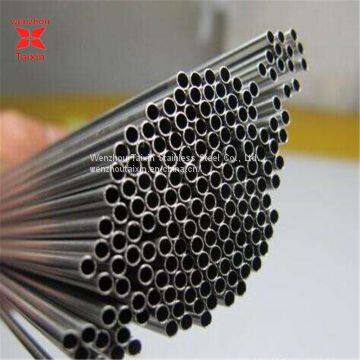

Help CenterHot Rolled SS 304/304L DN 25 40 100 150 Capillary Tubings
Related Products
-
Low Price Incoloy 901 Stainless Steel Pipe Tube ManufacturerUS$ 1000 - 5000MOQ: 1 Tonne -
Cold Rolled 304/304L ss Seamless Pipe Tube Chinese FactoryUS$ 1000 - 5000MOQ: 1 Tonne
-
Cold Rolled 316/316L ss Seamless Pipe Tube Chinese FactoryUS$ 1000 - 5000MOQ: 1 Tonne
-
Cold Drawed 309s/310s ss Seamless Pipe Tube Low PriceUS$ 1000 - 5000MOQ: 1 Tonne
-
Cold Drawn Precision 347/347H ss Seamless Pipe Tube Low PriceUS$ 1000 - 5000MOQ: 1 Tonne
Product Description
Type |

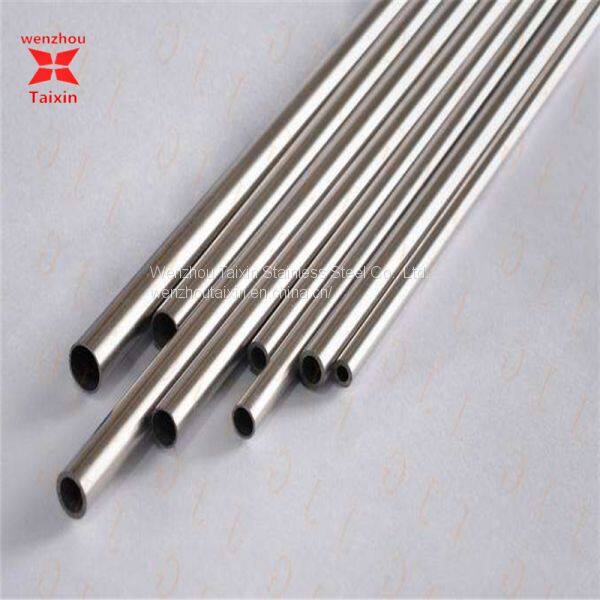

Stainless steel capillary tube/ small stainless steel tube
|
Brand |
Taixin |
Thickness |
0.01-5.0mm |
Diameter |
0.1-35mm |
Stainless Grade |
300s:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
|
Surface Finish |
Pickling,annealing,manual polish and mechanical polish , mirror polish |
Standard |
ASTM, BS, JIS, DIN, GB ,AISI etc |
Length |
As customer required |
Certificate |
ISO&BV |
Packing way |
Standard seaworthy package 1.plywood case 2.wooden pallet package 3.bundle package and other package or as customer request |
Note |
OEM / ODM / Buyer Label accepted. |
Diameter
Nominal Diameter(mm) |
Outside Diameter(mm) |
Nominal Wall Thickness (mm) |
|||
N.B |
NPS |
SCH5S |
SCH10S |
SCH40S |
|
8 |
1/4″ |
13.72 |
1.65 |
2.24 |
|
10 |
3/8″ |
17.15 |
1.65 |
2.31 |
|
15 |
1/2″ |
21.34 |
1.65 |
2.11 |
2.77 |
20 |
3/4″ |
26.67 |
1.65 |
2.11 |
2.87 |
25 |
1″ |
33.4 |
1.65 |
2.77 |
3.38 |
32 |
1-1/4″ |
42.16 |
1.65 |
2.77 |
3.56 |
40 |
1-1/2″ |
48.26 |
1.65 |
2.77 |
3.68 |
50 |
2″ |
60.33 |
1.65 |
2.77 |
3.91 |
65 |
2-1/2″ |
73.03 |
2.11 |
3.05 |
5.16 |
80 |
3″ |
88.9 |
2.11 |
3.05 |
5.49 |
90 |
3-1/2″ |
101.6 |
2.11 |
3.05 |
5.74 |
100 |
4″ |
114.3 |
2.11 |
3.05 |
6.02 |
125 |
5″ |
141.3 |
2.77 |
3.4 |
6.55 |
150 |
6″ |
168.28 |
2.77 |
3.4 |
7.11 |
200 |
8″ |
219.08 |
2.77 |
3.76 |
8.18 |
Chemical Composition
Grade and Main chemical composition% | |||||||||
C |
Si |
Mn |
P≤ |
S≤ |
Cr |
Mo |
Ni |
Other |
|
201 |
≤0.15 |
≤1.00 |
5.5-7.5 |
0.06 |
0.03 |
16-18 |
- |
3.5-5.5 |
N≤0.25 |
202 |
≤0.15 |
≤1.00 |
7.5-10.0 |
0.06 |
0.03 |
17-19 |
- |
4.0-6.0 |
N≤0.25 |
301 |
≤0.15 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
16-18 |
- |
6.0-8.0 |
- |
302 |
≤0.15 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
17-19 |
- |
8-10.0 |
- |
303 |
≤0.15 |
≤1.00 |
≤2.00 |
0.2 |
≥0.015 |
17-19 |
≤0.6 |
8.0-10.0 |
- |
304 |
≤0.08 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
18-20 |
- |
8-10.5 |
- |
304L |
≤0.03 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
18-20 |
- |
9-13 |
- |
305 |
≤0.12 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
17-19 |
- |
10.5-13 |
- |
309S |
≤0.08 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
22-24 |
- |
12-15 |
- |
310S |
≤0.08 |
≤1.5 |
≤2.00 |
0.045 |
0.03 |
24-26 |
- |
19-22 |
- |
316 |
≤0.08 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
16-18 |
2-3 |
10-14 |
- |
316L |
≤0.03 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
16-18 |
2-3 |
12-15 |
- |
317 |
≤0.08 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
18-20 |
3-4 |
11-15 |
- |
317L |
≤0.03 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
18-20 |
3-4 |
11-15 |
- |
321 |
≤0.08 |
≤1.00 |
≤2.00 |
0.045 |
0.03 |
17-19 |
- |
9-13 |
Ti≥5×C |
405 |
≤0.08 |
≤1.00 |
≤1.00 |
0.04 |
0.03 |
11.5-14.5 |
- |
≤0.6 |
AL0.1-0.3 |
420F |
0.26-0.4 |
≤1.00 |
≤1.25 |
0.06 |
≥0.15 |
12-14 |
≤0.6 |
≤0.6 |
- |
430 |
≤0.12 |
≤0.75 |
≤1.00 |
0.04 |
0.03 |
16-18 |
- |
≤0.6 |
|
Application
· The tubes for structural purpose
· fluid transportation tubes
· the compo tubes
· the heterogeneous tubes
· the boiler tubes
· tubes for hydraulic cylinders
· the tubes for bearing
· the tubes for petroleum well
· The above products are widely used in the metallurgy,
· the chemical industry, freezes.
Company Information
Wenzhou Taixin Stainless Steel Co., Ltd is founded in 1998, Taixin now covers a total landing area 320,000 square meters and more than 300 employees.
We have developed a full set of equipment to offer customer high quality materials with very competitive price.
The stainless steel capillary supplied by wenzhou taixin stainless steel co.,ltd will help you enjoy good quality and expand market.
Packing & Shipping
Standard seaworthy package 1.plywood case 2.wooden pallet package 3.bundle package and other package or as customer request
