Prime Quality SS 316/316L DN 25 40 100 150 capillary tubings DIN
- 20000 Ton / Tons per Month
- Shanghai
- T/T L/C Other
- 10 days
Product Details
Brand Name: | Taixin | Place of Origin: | China | Model Number: | TXC046 |
Certification: | ISO | Thickness: | 0.01-5.0mm | Type: | Other, seamless/welded |
Application: | Industry,Food,Decoration,Construction | Standard: | ASTM, AISI, DIN, EN, GB, JIS | Outer Diameter: | 0.1-35mm |
Welding Line Type: | Other, seamless/welded | Steel Grade: | Other, 200s/300s/400s/alloy/nickle alloy |
Product Description
Product Description

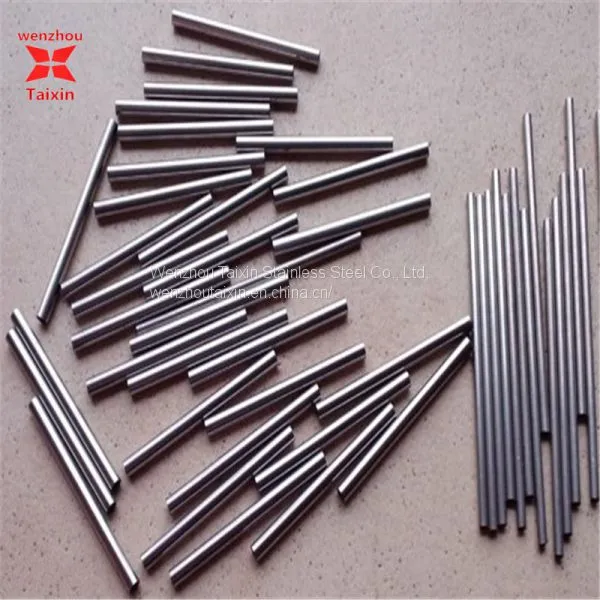

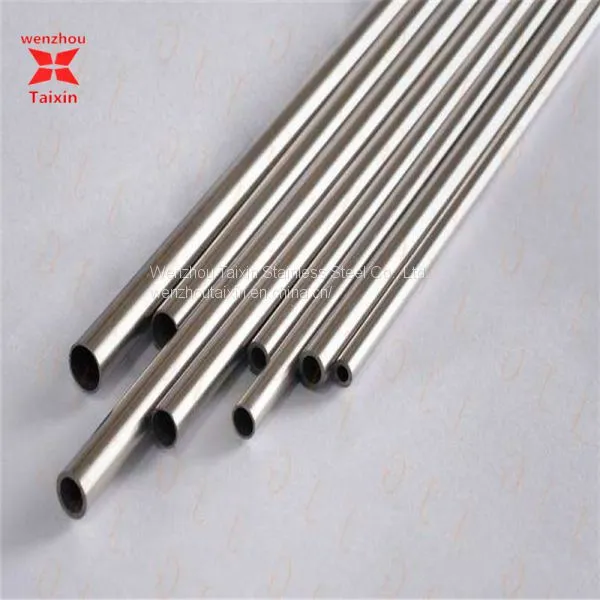

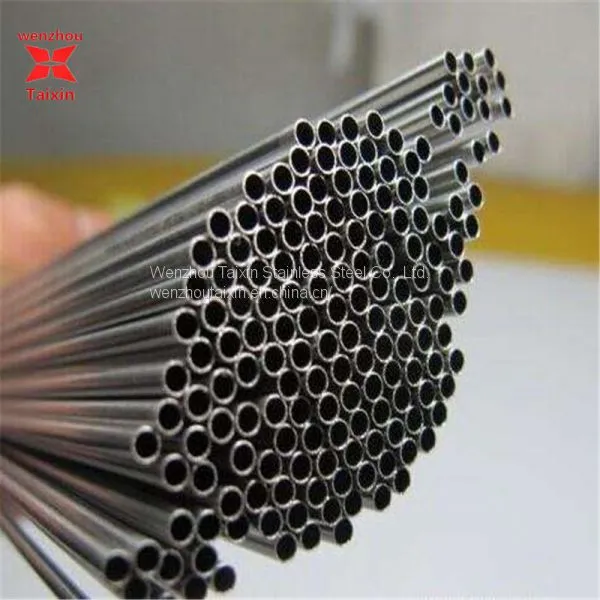

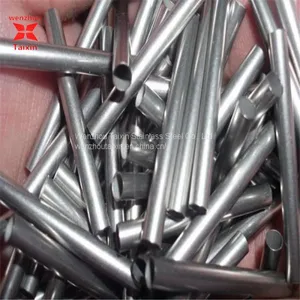

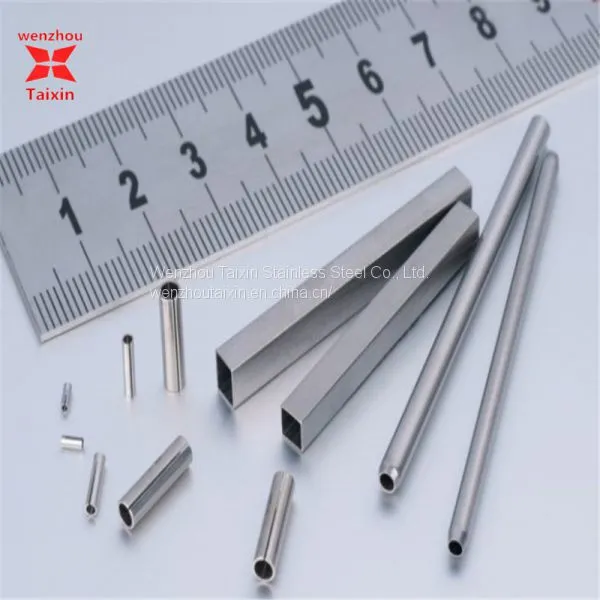

Type | Stainless steel capillary tube/ small stainless steel tube |
Brand | Taixin |
Thickness | 0.01-5.0mm |
Diameter | 0.1-35mm |
Stainless Grade | 300s:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
|
Surface Finish | Pickling,annealing,manual polish and mechanical polish , mirror polish |
Standard | ASTM, BS, JIS, DIN, GB ,AISI etc |
Length | As customer required |
Certificate | ISO&BV |
Packing way | Standard seaworthy package 1.plywood case 2.wooden pallet package 3.bundle package and other package or as customer request |
Note | OEM / ODM / Buyer Label accepted. |
Diameter
Nominal Diameter(mm) | Outside Diameter(mm) | Nominal Wall Thickness (mm) | |||
N.B | NPS | SCH5S | SCH10S | SCH40S | |
8 | 1/4″ | 13.72 | 1.65 | 2.24 | |
10 | 3/8″ | 17.15 | 1.65 | 2.31 | |
15 | 1/2″ | 21.34 | 1.65 | 2.11 | 2.77 |
20 | 3/4″ | 26.67 | 1.65 | 2.11 | 2.87 |
25 | 1″ | 33.4 | 1.65 | 2.77 | 3.38 |
32 | 1-1/4″ | 42.16 | 1.65 | 2.77 | 3.56 |
40 | 1-1/2″ | 48.26 | 1.65 | 2.77 | 3.68 |
50 | 2″ | 60.33 | 1.65 | 2.77 | 3.91 |
65 | 2-1/2″ | 73.03 | 2.11 | 3.05 | 5.16 |
80 | 3″ | 88.9 | 2.11 | 3.05 | 5.49 |
90 | 3-1/2″ | 101.6 | 2.11 | 3.05 | 5.74 |
100 | 4″ | 114.3 | 2.11 | 3.05 | 6.02 |
125 | 5″ | 141.3 | 2.77 | 3.4 | 6.55 |
150 | 6″ | 168.28 | 2.77 | 3.4 | 7.11 |
200 | 8″ | 219.08 | 2.77 | 3.76 | 8.18 |
Chemical Composition
Grade and Main chemical composition% | |||||||||
C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other | |
201 | ≤0.15 | ≤1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N≤0.25 |
202 | ≤0.15 | ≤1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N≤0.25 |
301 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
302 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 8-10.0 | - |
303 | ≤0.15 | ≤1.00 | ≤2.00 | 0.2 | ≥0.015 | 17-19 | ≤0.6 | 8.0-10.0 | - |
304 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
304L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 9-13 | - |
305 | ≤0.12 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 10.5-13 | - |
309S | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 22-24 | - | 12-15 | - |
310S | ≤0.08 | ≤1.5 | ≤2.00 | 0.045 | 0.03 | 24-26 | - | 19-22 | - |
316 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
316L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 12-15 | - |
317 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
317L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - |
321 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 9-13 | Ti≥5×C |
405 | ≤0.08 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 11.5-14.5 | - | ≤0.6 | AL0.1-0.3 |
420F | 0.26-0.4 | ≤1.00 | ≤1.25 | 0.06 | ≥0.15 | 12-14 | ≤0.6 | ≤0.6 | - |
430 | ≤0.12 | ≤0.75 | ≤1.00 | 0.04 | 0.03 | 16-18 | - | ≤0.6 |
Application
· The tubes for structural purpose
· fluid transportation tubes
· the compo tubes
· the heterogeneous tubes
· the boiler tubes
· tubes for hydraulic cylinders
· the tubes for bearing
· the tubes for petroleum well
· The above products are widely used in the metallurgy,
· the chemical industry, freezes.
Company Information
Wenzhou Taixin Stainless Steel Co., Ltd is founded in 1998, Taixin now covers a total landing area 320,000 square meters and more than 300 employees.
We have developed a full set of equipment to offer customer high quality materials with very competitive price.
The stainless steel capillary supplied by wenzhou taixin stainless steel co.,ltd will help you enjoy good quality and expand market.
Packing & Shipping
Standard seaworthy package 1.plywood case 2.wooden pallet package 3.bundle package and other package or as customer request
