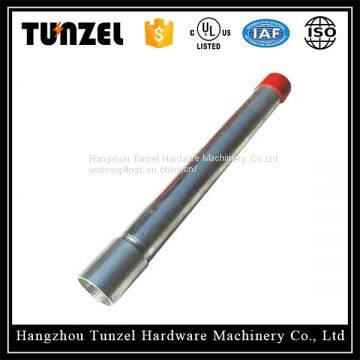

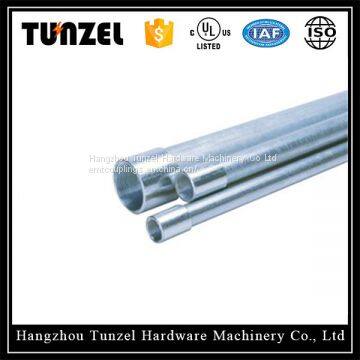

Screwed both ends with one coupler BS 4568 conduit by China supplier
| Screwed both ends with one coupler BS 4568 conduit by China supplier | |||||||
| BS 4568 | |||||||
| Size | Outside Diameter | Nominal Thickness | Length w/o coupling | No.of Lgths per bundle | No.of Bundle per lift | weight per lgth | |
| Heavy Gauge | |||||||
| 16mm | 15.7mm | 16.0mm | 1.4±0.10mm | 3.75meters | 10 | 20 | ±1.95kg |
| 20mm | 19.7mm | 20.0mm | 1.6±0.15mm | 3.75meters | 10 | 20 | ±2.90kg |
| 25mm | 24.6mm | 25.0mm | 1.6±0.15mm | 3.75meters | 10 | 20 | ±3.70kg |
| 32mm | 31.6mm | 32.0mm | 1.6±0.15mm | 3.75meters | 5 | 20 | ±4.90kg |
| 40mm | 39.6mm | 40.0mm | 1.6±0.15mm | 3.75meters | Information available at time of order | ||
| 50mm | 49.6mm | 50.0mm | 1.8±0.15mm | 3.75meters | |||
| 63mm | 62.6mm | 63.0mm | 1.8±0.15mm | 3.75meters | |||
| 75mm | 74.6mm | 75.0mm | 1.8±0.15mm | 3.75meters | |||
| Medium Gague | |||||||
| 16mm | 15.7mm | 16.0mm | 1.2±0.15mm | 3.75meters | Information available at time of order | ||
| 20mm | 19.7mm | 20.0mm | 1.2±0.15mm | 3.75meters | |||
| 25mm | 24.6mm | 25.0mm | 1.2±0.15mm | 3.75meters | |||
| 32mm | 31.6mm | 32.0mm | 1.2±0.15mm | 3.75meters | |||
Material: Steel
Finish: hot dipped galvanised
Size: 20mm/25mm/32mm/40mm/50mm/65mm/75mm/100mm
Types: class 3 & class 4
Steel conduits can comply with BS4568 and EN50086 standards.
Best quality and reasonable price will be provided.We can produce the steel conduits according to your samples or drawings, we also can make them with your own brands.Our factory can makes all kinds of BS4568/BS31 conduits and conduits fittings.
Steel Thinwall conduit is easy to cut and easy to bend - reducing waste and installation time. Metal conduit is non-combustible and easily adaptable to future wiring changes. Metal conduit is a proven equipment grounding conductor and can reduce electromagnetic fields by up to 95%.
Note: Please comply with National and Local building and electrical code requirements when choosing the correct conduit and accessories for your wiring application.
Safe product.
Good raw material.
Good weld line.
Clean end of the conduit.
Professional inspection process.
Good performance during wariety tests.
Surface treatment is smooth,have good resistant to corrosion,and all information available at the time of order,if you need different thinkness or lenth please contact us.
Note:Please comply with the national and local building and electrical code requirements when choosing the correct conduit and accessories for your wiring application.
|
|
|
|
|
Q1:When can I get the quotation?
A1:Usually within 24 hours. If urgent please call us .
Q2:Samples can be free?
A2:Yes,we can supply the EMT conduit pipe free of charge just need your detailed courier address enough.
Q3:How about the lead time?
A3:Usually 20 days after deposit in our account.
Q4:Where the loading port and what terms of delivery you acceptable?
A4:Ningbo port and Shanghai port China as our nearest loading port.
EXW, ,FOB,CFR,CIF we acceptable.
Q5:How about your quality and do you have some certifications?
A5:All our products meet the standard of UL,and now we apply the UL certificate this month,soon can get the certification and show to our customers.
If there is a chance come to China please feel free to visit our factory for quality checking and business cooperation.
Send Inquiry to This Supplier
You May Also Like
-
China Product Price List 90 Degree Elbow Emt Bend Pipe by Zhejiang Small FactoryUS$ 1 - 20MOQ: 1000 Pieces
-
Good Business Partners Manufacturer Conduit Emt Pipe by Chinese SupplierUS$ 1 - 20MOQ: 1000 Pieces
-
Galvanized Slotted Support Steel c Channel by Chinese SupplierUS$ 0.2 - 1MOQ: 100 Meters
-
RIGID LB TYPE THREADED CONDUIT BODY by Chinese SupplierUS$ 0.1 - 1MOQ: 100 Pieces
-
4" Electrical Weartherproof Round Covers by Chinese SupplierUS$ 0.1 - 0.5MOQ: 100 Pieces
-
Zinc Die Cast Flex Conduit Connector by Chinese SupplierUS$ 0.1 - 1MOQ: 100 Pieces
-
RIGID CONDUIT WATERTIGHT HUBUS$ 0.2 - 1MOQ: 100 Pieces
-
Galvanized Steel EMT 2 Two Hole Conduit StrapUS$ 0.1 - 1MOQ: 1000 Pieces
-
Strut Steel Channel Spring NutUS$ 0.1 - 0.5MOQ: 100 Pieces
-

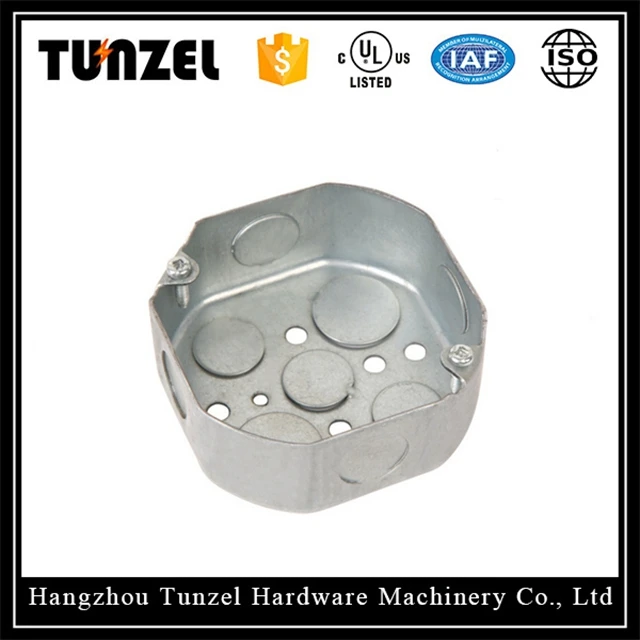

4" Octagonal Conduit BoxUS$ 0.2 - 1MOQ: 100 Pieces
