Good business partners manufacturer conduit emt pipe
by chinese supplier
| EMT(Electrical Metallic Tubing) | ||||||||
| ANSI C80.3-1983 UL797 | ||||||||
| Size | Outside Diameter | Inside Diameter | Wall Thickness | Length | ||||
| Inch | Inch | mm | inch | mm | (1)mm | (2)mm | feet | mm |
| 1/2" | 0.706 | 17.93 | 0.622 | 15.80 | 1.07 | 0.85 | 10 | 3050 |
| 3/4" | 0.922 | 23.42 | 0.824 | 20.93 | 1.25 | 0.95 | 10 | 3050 |
| 1" | 1.163 | 29.54 | 1.049 | 26.64 | 1.45 | 1.10 | 10 | 3050 |
| 1-1/4" | 1.510 | 38.35 | 1.380 | 35.05 | 1.65 | 1.30 | 10 | 3050 |
| 1-1/2" | 1.740 | 44.20 | 1.610 | 40.89 | 1.65 | 1.30 | 10 | 3050 |
| 2" | 2.197 | 55.80 | 2.067 | 52.50 | 1.65 | 1.40 | 10 | 3050 |
| 2-1/2" | 2.875 | 73.03 | 2.731 | 69.37 | 1.83 | - | 10 | 3050 |
| 3" | 3.500 | 88.90 | 3.356 | 85.24 | 1.83 | - | 10 | 3050 |
| 3-1/2" | 4.000 | 101.60 | 3.834 | 97.38 | 2.11 | - | 10 | 3050 |
4" |
4.500 | 114.30 | 4.334 | 110.08 | 2.11 | - | 10 | 3050 |

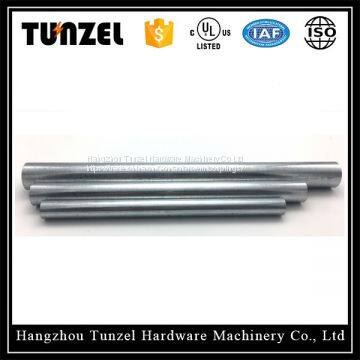

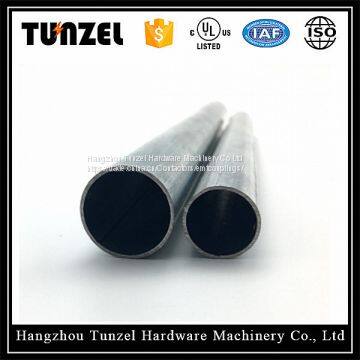

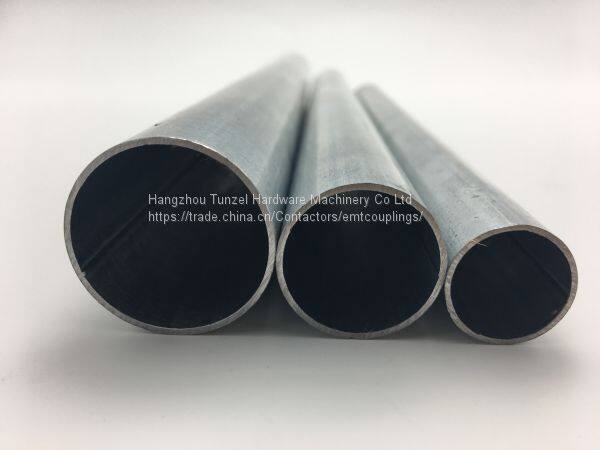

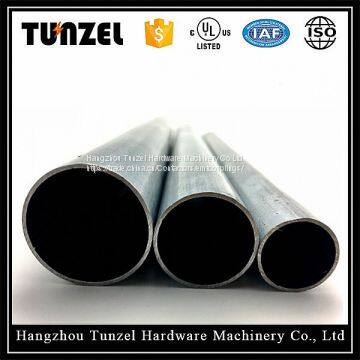

EMT(Electrical Metallic Tubing) counduit is a metal thin walled conduit tht comes in ten foot lenths.These stick have no couplings on ends couplings and connectors can be added to connect the next piece pipe.
These couplings come in setscrew and compression types.Setscrew couplings have two screws.one for each piece of conduit wihich holds the conduits together and also bonds the ground connection between the conduits.
Our advantages:
Steel thinwall EMT conduit is easy to cut and weasy to bend reducing waste and installation time.Metal conduit is non-combustible and easily adaptable to future wiring changes.Metal conduit is a proven euqipment grounding conductor and can reduce electromagnetic fields by up to 95%
Safe product.
Good raw material.
Good weld line.
Clean end of the conduit.
Professional inspection process.
Good performance during wariety tests.
Surface treatment is smooth,have good resistant to corrosion,and all information available at the time of order,if you need different thinkness or lenth please contact us.
Note:Please comply with the national and local building and electrical code requirements when choosing the correct conduit and accessories for your wiring application.
Use range:

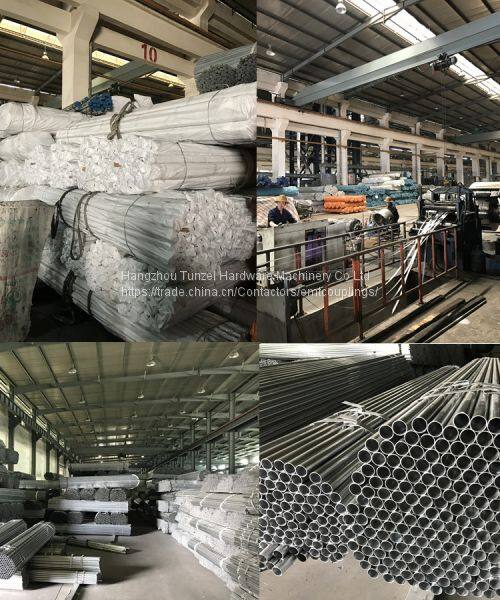

Hangzhou Tunzel Hardware Machinery Co Ltd was founded in 2007 is located in the beautiful Hangzhou.Our company specialized in producing all kinds of electric metal pipes and fittings.We have been producing and selling such products for about 10 years.We are the most professional company of Construction Electricity Wiring Systerm in Hangzhou China.
Our Main Products:
Electrical Metallic Tubing and FittingsEMT Conduit Pipe.EMT Conduit Elbows.EMT couplings andconnectors.EMT one hole strap and two hole strap.EMT service entrance caps. EMT conduit bender.EMT pipe clamps and conduit hangers.
Intermediate Metal Conduit and Fittings.IMC conduit elblow,IMC couplings.IMC one hole strap and two hole straps.IMC service entrance caps,IMC conduit bender,reducing bushing,Nipple,Locknuts.Conduit Bushings,waterlight hubs.IMC pipe clamps and conduit hangers.
Rigid/RMC/RSC conduit pipe and fittings.Rigid/RMC/RSC conduit elbow,couplings,one hole strap and two hole straps.service entrance nduit bender,reducing bushing,nipple,locknuts,conduit bushing,watertight hubs,pipe clamps and conduit hangers.
BS4568/31 Conduit pipe and fittings.BS4568 GI conduit,BS31 GI conduit,class 3 and class 4.Malleable Iron box,box lids,looping in box,Dome cover,male hook,coupler,nipple,elbows,bends,tee,rings,male and femal bushes,head plug,reducer,locknuts,saddle 1-part brass adaptor,2-part nickel plated adaptor.
Electrical box and conduit body.4 x4" square box,4x4" weatherproof box.round weatherproof box LB.LL.LR.C.T Threaded and set screw conduit body.
Flexible conduit and fittings.Flexible steel conduit,pvc coated flexible conduit,liquid tight conduit squeeze connector,liquid tight connector.
Struct Channel and Fittings.41 x 41,41 x21 Uni-struct Channel,spring nut,thread rods,struct clamp.cushioned nduit hanger,clevis hanger,sprinkler clamp,pipe clamp.pipe clamp with rubber.
Our current production capacity is around 500,000 pieces per moth.As a genuine manufacturer,nowadays our products have reached into more than ten countries and regions.such as America,Europe,Southeast Asia and the Middle East.We keep cooperate with each other and earn a good reputation through these marks.
"Connecting with people with an open heart,succeeding with quality"is our mission.We hope to make mutual development with all our customers.Please feel free to contact us for more infermation .We are looking forward to receiving your correspondences in the near future.
FAQ:
Q1:When can I get the quotation?
A1:Usually within 24 hours. If urgent please call us .
Q2:Samples can be free?
A2:Yes,we can supply the EMT pipe free of charge just need your detailed courier address enough.
Q3:How about the lead time?
A3:Usually 20 days after deposit in our account.
Q4:Where the loading port and what terms of delivery you acceptable?
A4:Ningbo port and Shanghai port China as our nearest loading port.
EXW, CFR,CIF we acceptable.
If there is a chance come to China please feel free to visit our factory for quality checking and business cooperation.
