Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > ASTM A213 T12 Alloy Steel Seamless Tube

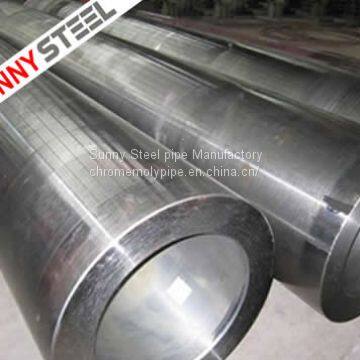

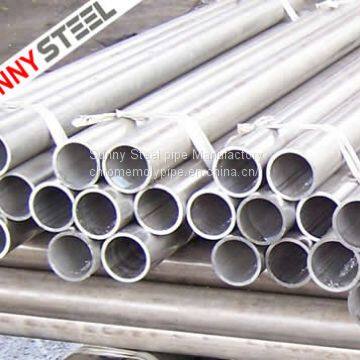

ASTM A213 T12 Alloy Steel Seamless Tube

ASTM A213 T12 Alloy Steel Seamless Tube thumbnail-3

ASTM A213 T12 Alloy Steel Seamless Tube thumbnail-4

ASTM A213 T12 Alloy Steel Seamless Tube thumbnail-5

ASTM A213 T12 Alloy Steel Seamless Tube photo-1

ASTM A213 T12 Alloy Steel Seamless Tube photo-2

ASTM A213 T12 Alloy Steel Seamless Tube photo-3

ASTM A213 T12 Alloy Steel Seamless Tube photo-4

ASTM A213 T12 Alloy Steel Seamless Tube photo-5

US$ 1000 - 6000 MOQ: 10 Tons

Key Specifications

Get Latest Price

Place of Origin:

China

Certification:

BSI

Thickness:

10, 30

Contact Supplier Request Quote Chat Now

Sunny Steel Pipe Manufactory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Place of Origin China

Certification BSI

Thickness 10, 30

Application Hydraulic Pipe

Technique Cold Drawn

Alloy Or Not Is Alloy

Secondary Or Not Non-secondary

Special Pipe Thick Wall Pipe

Section Shape Round

Outer Diameter 60, 300

ASTM A213 T12 Alloy Steel Seamless Tubes, Alloy Steel T12 Seamless Tubes Manufacturer
Sunny Steel is one of the leading Manufacturers, Supplier and Exporters of high quality ASTM A213 T12 Alloy Steel Seamless Tube. these tubes are available in different size, grades, shapes & specification as per the clients requirements. These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements. These tube are used in various application industry like Petroleum,chemical,power, gas, water, metallurgy, shipbuilding, construction etc.

Chemical Compositions :

C, %

Mn, %

P, %

S, %

Si, %

Cr, %

Mo, %

0.15 max

0.30-0.60

0.025 max

0.025 max

0.50-1.00

1.00-1.50

0.44-0.65

Mechanical Properties :

Tensile Strength , MPa

Yield Strength, MPa

Elongation, %

Hardness, HB

415 min

205 min

30 min

179 max

Outside Diameter & Tolerance :

Hot rolled

Outside Diameter, mm

Tolerance, mm

OD≤101.6

+0.4/-0.8

101.6＜OD≤190.5

+0.4/-1.2

190.5＜OD≤228.6

+0.4/-1.6

Cold Drawn

Outside Diameter, mm

Tolerance, mm

OD＜25.4

±0.10

25.4≤OD≤38.1

±0.15

38.1＜OD＜50.8

±0.20

50.8≤OD＜63.5

±0.25

63.5≤OD＜76.2

±0.30

76.2≤OD≤101.6

±0.38

101.6＜OD≤190.5

+0.38/-0.64

190.5＜OD≤228.6

+0.38/-1.14

Wall thickness & Tolerance :

Hot rolled

Outside Diameter, mm

Tolerance, %

OD≤101.6, WT≤2.4

+40/-0

OD≤101.6, 2.4＜WT≤3.8

+35/-0

OD≤101.6, 3.8＜WT≤4.6

+33/-0

OD≤101.6, WT>4.6

+28/-0

OD>101.6, 2.4＜WT≤3.8

+35/-0

OD>101.6, 3.8＜WT≤4.6

+33/-0

OD>101.6, WT>4.6

+28/-0

Cold Drawn

Outside Diameter, mm

Tolerance, %

OD≤38.1

+20/-0

OD>38.1

+22/-0

Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; 12000mm; and so on.

Max length: 16000mm, also U bending can be offered.
Packing:
Packed in wooden crates, wrapped in plastic, and suitably protected for sea-worthly delivery or as requested.
Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

ASTM A213 Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

ASTM A213M-09 standard is issued under the fixed designation A 213/A 213M; the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision.

This standard is issued under the fixed designation A 213/A 213M; the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript epsilon (′) indicates an editorial change since the last revision or reapproval.

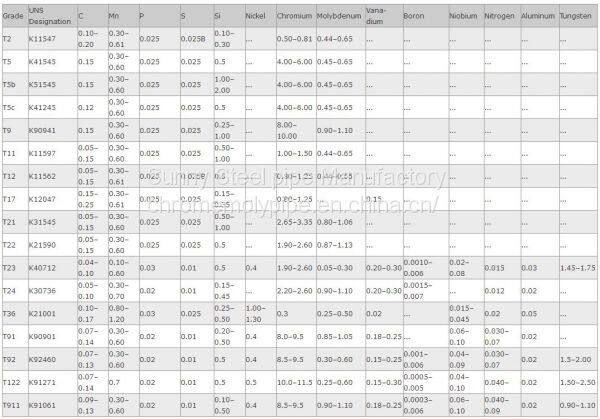

ASTM A213 Chemical Composition

Product Tags: Alloy Steel Seamless Tube , ASTM A213 , ASTM A213 T12

Send Inquiry to This Supplier

Mrs. Cauli

Sales Manager

Sunny Steel Pipe Manufactory

Shanghai, China

Message

0/5000

* Email

Want the best price? Post an RFQ now!

Sunny Steel Pipe Manufactory

Business Type

Manufacturer

Year Established

2000

Overseas Office

Yes

Factory Size

10,000-30,000 square meters

Contact Supplier Request Quote Chat Now

Recommended Categories

Explore top categories and find suppliers for your specific needs

Other Steel & Products

C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
0.15 max	0.30-0.60	0.025 max	0.025 max	0.50-1.00	1.00-1.50	0.44-0.65

Tensile Strength , MPa	Yield Strength, MPa	Elongation, %	Hardness, HB
415 min	205 min	30 min	179 max

Hot rolled	Outside Diameter, mm	Tolerance, mm
	OD≤101.6	+0.4/-0.8
	101.6＜OD≤190.5	+0.4/-1.2
	190.5＜OD≤228.6	+0.4/-1.6
Cold Drawn	Outside Diameter, mm	Tolerance, mm
	OD＜25.4	±0.10
	25.4≤OD≤38.1	±0.15
	38.1＜OD＜50.8	±0.20
	50.8≤OD＜63.5	±0.25
	63.5≤OD＜76.2	±0.30
	76.2≤OD≤101.6	±0.38
	101.6＜OD≤190.5	+0.38/-0.64
	190.5＜OD≤228.6	+0.38/-1.14

Hot rolled	Outside Diameter, mm	Tolerance, %
	OD≤101.6, WT≤2.4	+40/-0
	OD≤101.6, 2.4＜WT≤3.8	+35/-0
	OD≤101.6, 3.8＜WT≤4.6	+33/-0
	OD≤101.6, WT>4.6	+28/-0
	OD>101.6, 2.4＜WT≤3.8	+35/-0
	OD>101.6, 3.8＜WT≤4.6	+33/-0
	OD>101.6, WT>4.6	+28/-0
Cold Drawn	Outside Diameter, mm	Tolerance, %
	OD≤38.1	+20/-0
	OD>38.1	+22/-0

ASTM A213 T12 Alloy Steel Seamless Tube
