ASTM A213 T5 Superheater and Heat-Exchanger Tubes

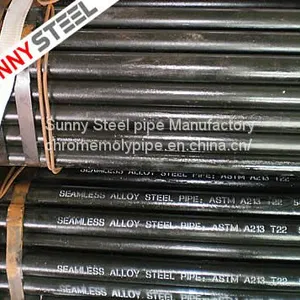

ASTM A213 T5 Superheater and Heat-Exchanger Tubes thumbnail-1

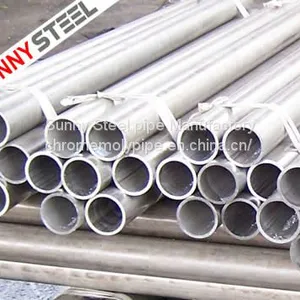

ASTM A213 T5 Superheater and Heat-Exchanger Tubes thumbnail-2

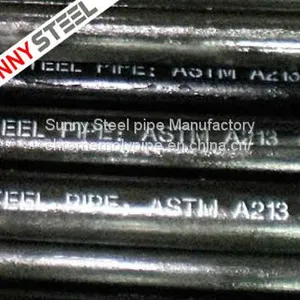

ASTM A213 T5 Superheater and Heat-Exchanger Tubes thumbnail-3
ASTM A213 T5 Superheater and Heat-Exchanger Tubes thumbnail-4

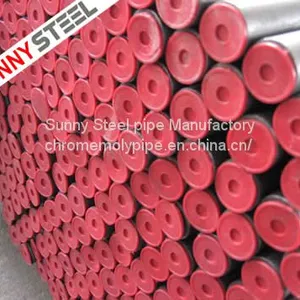

ASTM A213 T5 Superheater and Heat-Exchanger Tubes thumbnail-5
ASTM A213 T5 Superheater and Heat-Exchanger Tubes photo-1

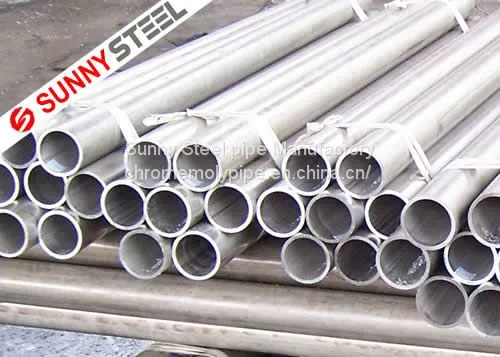

ASTM A213 T5 Superheater and Heat-Exchanger Tubes photo-2
ASTM A213 T5 Superheater and Heat-Exchanger Tubes photo-3
ASTM A213 T5 Superheater and Heat-Exchanger Tubes photo-4
ASTM A213 T5 Superheater and Heat-Exchanger Tubes photo-5
US$ 1000 - 6000 MOQ: 10 Tons
Key Specifications
Get Latest Price
Place of Origin:
China
Certification:
BSI
Thickness:
10, 30
Contact Supplier Request Quote Chat Now
Sunny Steel Pipe Manufactory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Certification BSI
Thickness 10, 30
Application Hydraulic Pipe
Technique Cold Drawn
Alloy Or Not Is Alloy
Secondary Or Not Non-secondary
Special Pipe Thick Wall Pipe
Section Shape Round
Outer Diameter 60, 300
ASTM A213 T5 Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.
ASTM A213 T5 Grades containing the letter H in their designation have requirements different from those of similar grades not containing the letter H.
These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements. The tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified. Grade TP347HFG shall be cold finished. Heat treatment shall be done separately and in addition to heating for hot forming. The ferritic alloy and ferritic stainless steels shall be reheated. On the other hand, austenitic stainless steel tubes shall be furnished in the heat-treated condition. Alternatively, immediately after hot forming, while the temperature of the tubes is not less than the minimum solution temperature, tubes may be individually quenched in water or rapidly cooled by other means. Tension test, hardness test, flattening test, and flaring test shall be done to each tube. Also, each tube shall be subjected to the nondestructive electric test or hydrostatic test.
ASTM A209 Through A213

  • Other standard specifications include the categories of A209 seamless carbon-molybdenum alloy-steel boiler and superheater tubes; A210 seamless medium-carbon steel boiler and superheater tubes and A213 seamless ferritic and austenitic steel boiler, superheater and heat-exchanger tubes. Piping wall thicknesses range from 1/2 inch to 5 inches. A213 grades also have the letter H or M assigned, which changes the composition and specifications for that series.

This abstract is a brief summary of the referenced standard. It is informational only and not an official part of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does not give any warranty express or implied or make any representation that the contents of this abstract are accurate, complete or up to date.
Chemical Composition(%) for ASTM A213 T5 Low Alloy Steel
UNS Designation
K41545
Carbon
0.15
Manganese
0.30–0.60
Phosphorus
0.025
Sulfur
0.025
Silicon
0.5
Nickel
…
Chromium
4.00–6.00
Molybdenum
0.45–0.65
Vanadium
…
Boron
…
Niobium
…
Nitrogen
…
Aluminum
…
Tungsten
…
Other Elements
…
Mechanical properties
Tensile strength(min)
415Mpa
Yield strength(min)
220Mpa
Elongation
30%
Delivery condition
annealed
Packing:

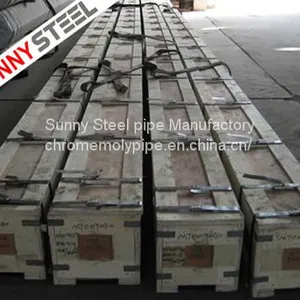

  • Packed in wooden crates, wrapped in plastic, and suitably protected for sea-worthly delivery or as requested.

  • Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.


ASTM A213 Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

ASTM A213M-09 standard is issued under the fixed designation A 213/A 213M; the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision.
Download Abrasion resistant The ceramic-lined steel composite pipes, Bends and elobws specifications & size range

This standard is issued under the fixed designation A 213/A 213M; the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript epsilon (′) indicates an editorial change since the last revision or reapproval.

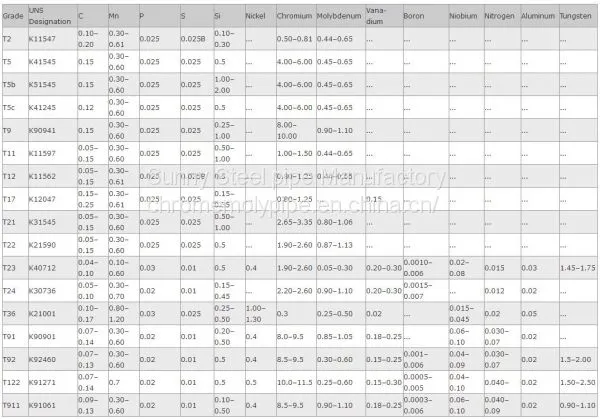

ASTM A213 Chemical Composition

Product Tags: Heat-Exchanger Tubes , ASTM A213 , ASTM A213 T5
