G-3849DNL(BF) 1.25Gb 80km 1490nm single mode CWDM Multiplexer Optical Module Transceiver
1. Key Specifications
| Model No.: | G-3849DNL(BF) |
| Max. Data Rate: | 1.25GB/S |
| Operating Wavelength: | 1490nm |
| Transmission Distance: | 80KM |
| ROHS Lead Free: | √ |
| Media Type: | Singlemode |
| Transmitter: | DFB |
| Receiver: | PIN |
| Voltage Supply(V): | 3.3V |
| Operating Temperature(℃): | 0℃～70℃ |
| Connector:; | Duplex LC Connector |
| Hot pluggable: | Pluggable |
| Brand: | GRT |
| Certification: | ISO9001/CE/FCC/RoHS |
● SFP hot pluggable
● 1.25Gb/s serial optical interface
● Up to 80km transmission distance based on 9/125um SMF
● Duplex LC connector
● Digital Diagnostic Monitor(DDM) function
● Low Electro-Magnetic Interference(EMI)
● High transmission margin
● +3.3V single power supply
● Wide data rate range

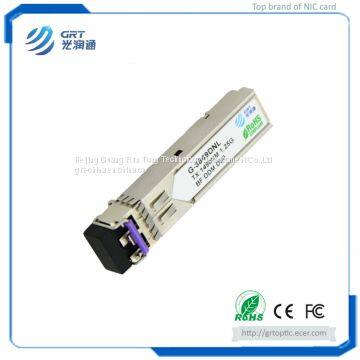

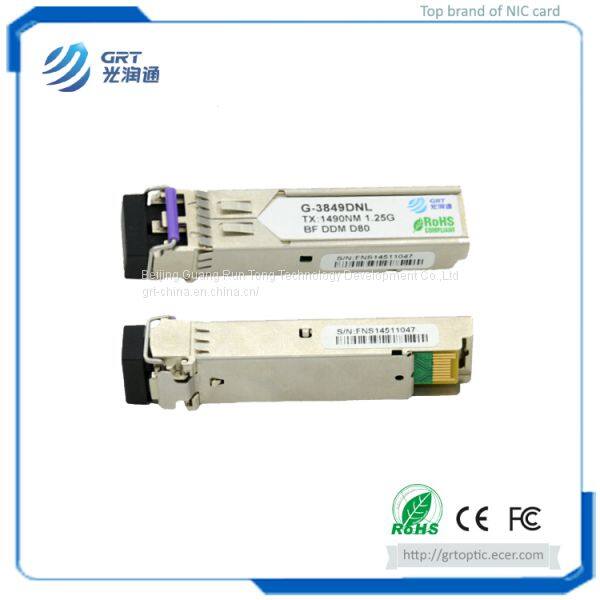

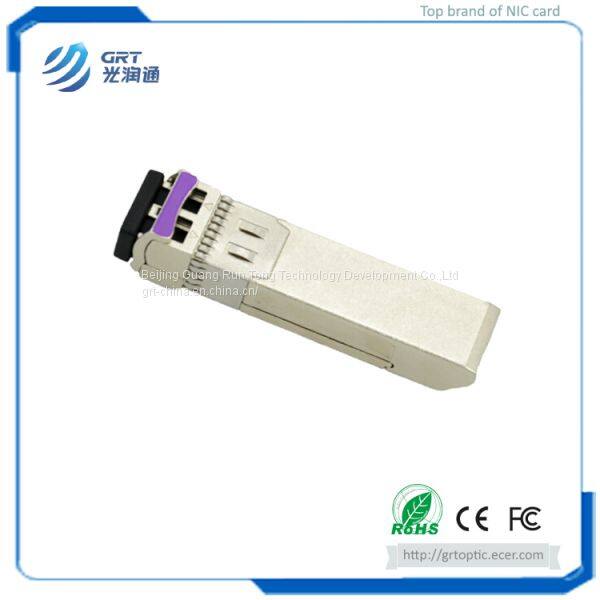

2. Product Show
3. Application
G-3849DNL(BF) 1.25Gb 80km 1490nm single mode CWDM Multiplexer Optical Module Transceiver is made for 155M 622M 1000M 2.5G optical communication. 16 waves from 1270nm to 1610nm available to customers. Maximum distance reach up to 80km. It could be applied in Ethernet and SONET(Synchronous Optical Networking).
4. Compatibility
All of GRT's transceiver modules are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
5. Normal Package & Notes on application
Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
6. Service
GRT provides a 7*24h professional technical support.
OEM/ODM/OBM service are all available.
