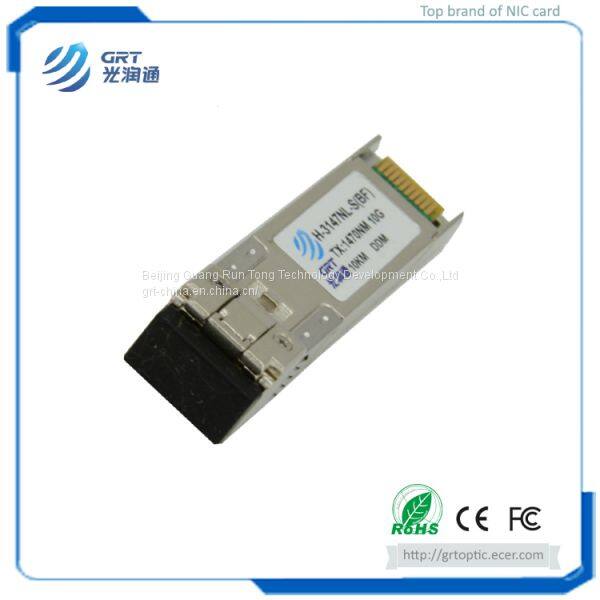

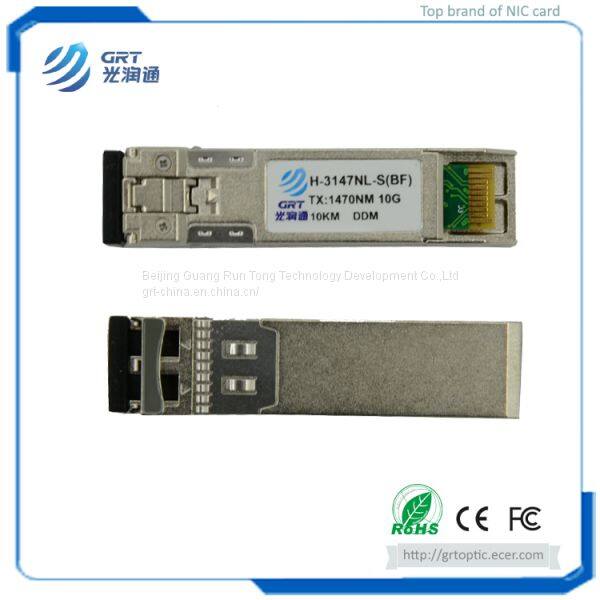

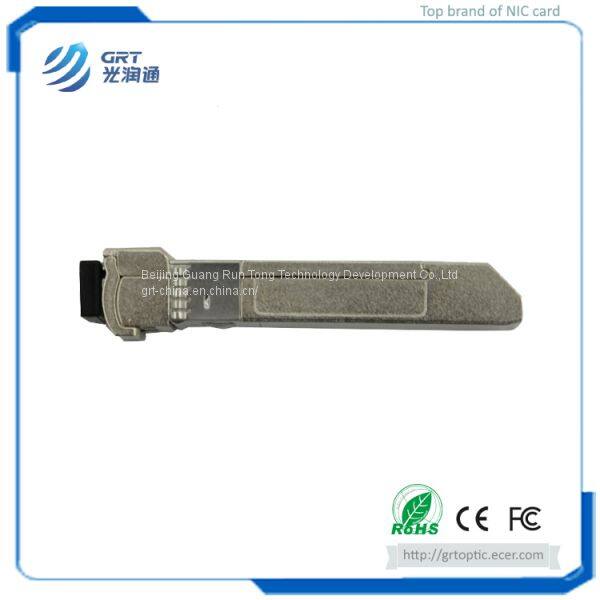

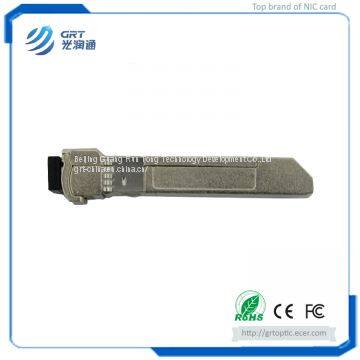

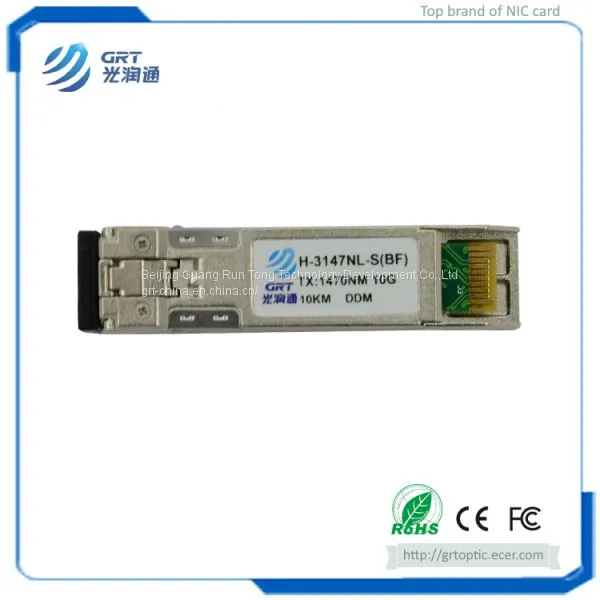

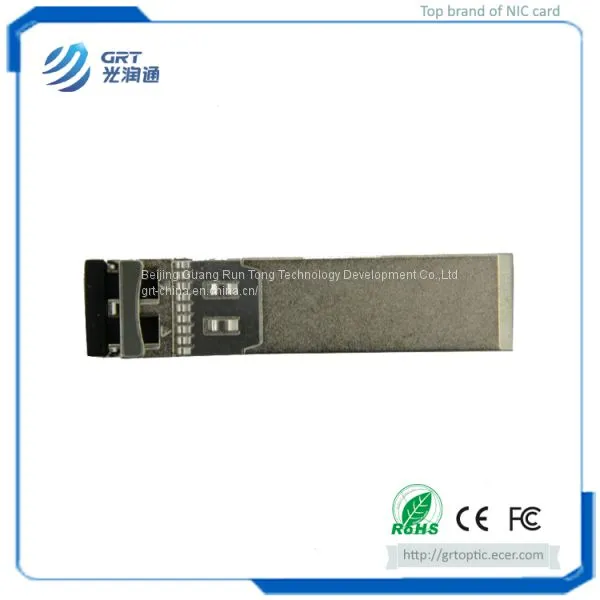

H-3147NL-S(BF) 10Gb 10km 1470nm Singlemode CWDM Multiplexer Fiber Optical Module
1. Key Specifications
| Model No.: | H-3147NL-S(BF) |
| Max. Data Rate: | 10GB/S |
| Operating Wavelength: | 1470nm |
| Transmission Distance: | 10KM |
| ROHS Lead Free: | √ |
| Media Type: | Singlemode |
| Transmitter: | EML |
| Receiver: | PIN |
| Voltage Supply(V): | 3.3V |
| Operating Temperature(℃): | 0℃～70℃ |
| Connector:; | Duplex LC Connector |
| Hot pluggable: | Pluggable |
| Brand: | GRT |
| Certification: | ISO9001/CE/FCC/RoHS |
STANDARD
● SFP+ hot pluggable
● 10Gb/s serial optical interface
● Up to 10km transmission distance based on 9/125um SMF
● Compliant with SFP+ MSA
● Duplex LC connector
● Digital Diagnostic Monitor(DDM) function
● Low Electro-Magnetic Interference(EMI)
● High transmission margin
● +3.3V single power supply
● Low power consumption less than 1.5W
● Wide data rate range
2. Application
● 10GBase-LR/LW
● 10G Fiber Channel
● Other optical links
3.Operation Environment
GERERAL OPERATING CHARACTERISTICS
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note | |
| Data Rate | Ethernet | 10.3125 | Gb/s | ||||
| Fiber Channel | 9.953 | ||||||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | ||
| Vcc | V | ||||||
| Supply Current | Icc5 | mA | |||||
| Icc3 | 450 | mA | |||||
| Operating Case Temp. | Tc | 0 | 70 | °C | |||
4. Compatibility
All of GRT's transceiver modules are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
5. Normal Package & Notes on application
Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
6. Service
With self-owned brand and independent intellectual property rights, we can design and manufacture upon your requests, and offering you a 7*24h professional technical support.
OEM/ODM/OBM service are all available.
Talk to us, we’ll do our best to suit your needs. And welcome to visit us in Beijing!
