H-3410FNL-S 10G 40km 1550nm SFP+ commercial level Optical Transceiver compatible with HP Extreme
1. Key Features
SFP+ package with duplex LC connector
Metal with lower EMI
Excellent ESD protection
EML Transmitter and PIN Receiver
Distance up to 40Km on 1550nm SMF
Single 3.3V power supply
RoHS Compliant and Lead-Free
DDM digital diagnostic monitoring function
H-3410FNL-S is a 10Gigabit optical transceiver module, with hot pluggable SFP+ form factor, can reach up to 40km based on 1550nm single mode fiber (SMF). It commerical case operating temperature 0°-70°C, support 10GBASE Ethernet and OTU2/OTU2e hot pluggable I/O device, fully compatible with the SFP+ port on the Switch.

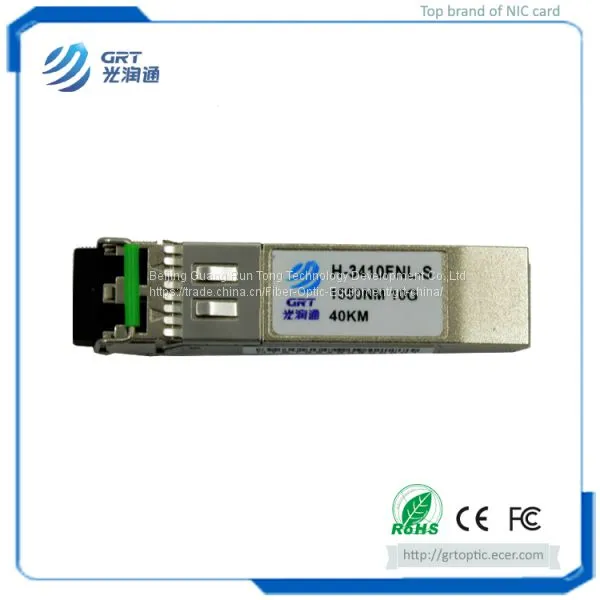

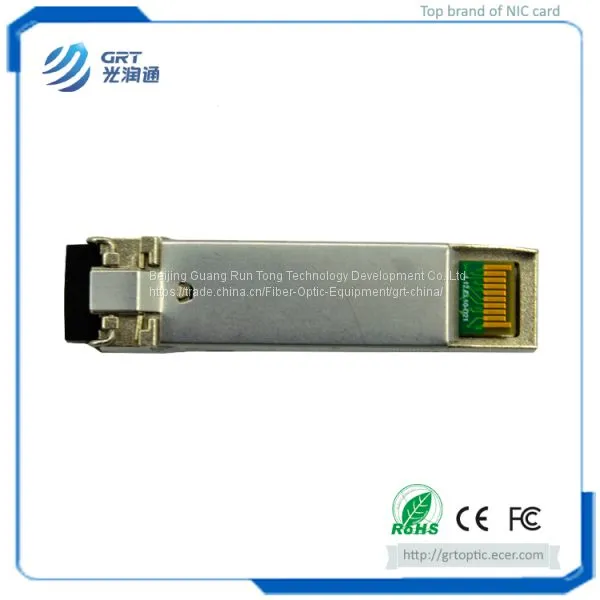

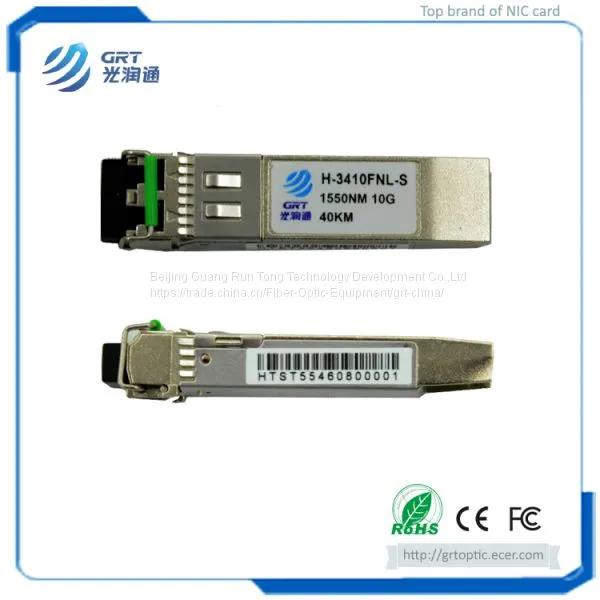

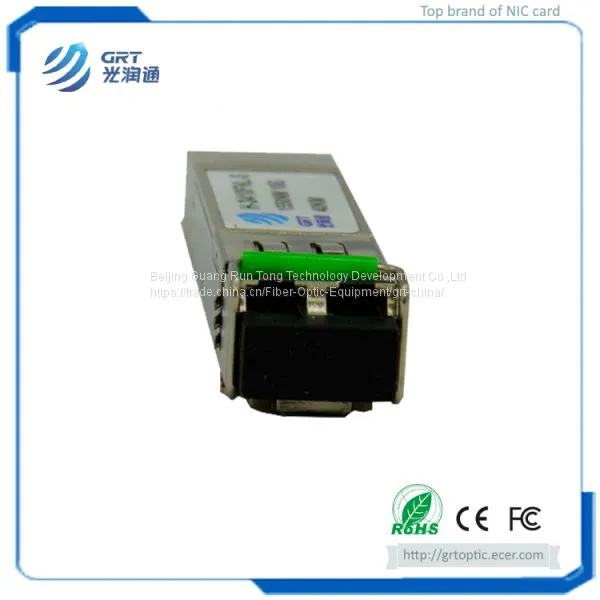

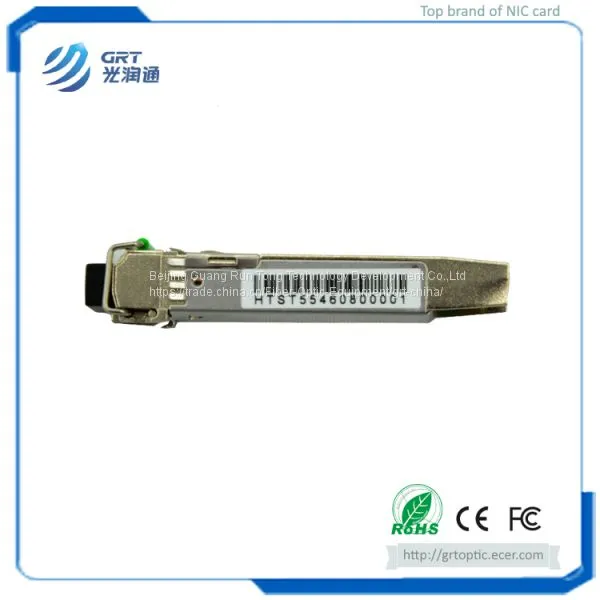

2. Product Show
3. Application
Optical transceivers can be applied for Gigabit Ethernet, Fiber channel, SDH/SONET/ATM, switch, routers, servers, Ethernet Switch and servers, storage, SONET(OC-192)/SDH(STM64) card, high speed storage area network (SAN), high speed data channel, PDH and other network transmission systems.
All of GRT's products are of open source, can be coded to be compatible with other brands'equipmentc, such as Intel, Cisco, Dell,HP,Brocade,Juniper,Arista, Mellanox,Huawei,H3C,ETC.
4. Absolute Maximum Ratings
| Parameter | Symbol | Minimum | Maximum | Units |
| Storage Temperature | Tst | -40 | +85 | °C |
| Supply Voltage | Vcc | 0 | +3.6 | V |
| Operating Relative Humidity | RH | 5 | 95 | % |
5. Normal Package & Notes on application
Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
6. Service
With self-owned brand and independent intellectual property rights, we can design and manufacture upon your requests, and offering you a 7*24h professional technical support.
OEM/ODM/OBM service are all available.
Talk to us, we’ll do our best to suit your needs. And welcome to visit us in Beijing!
