1.25G 850nm 550nm SFP Gigabit Tx Side-Only Optical Transceiver Module
1. Key Features
-- SFP package with simplex LC connector
-- Metal with lower EMI
-- Excellent ESD protection
-- Distance up to 550m on 850nm MMF
-- Single 3.3V power supply
-- RoHS Compliant and Lead-Free
G-8501D-F is a Gigabit optical module with only one Transmission side, based on wavelength of 850nm multimode and can reach up to 550m, hot pluggable SFP form factor). Its commerical case operating temperature 0°-70°C, support 10GBASE Ethernet and OTU2/OTU2e hot pluggable I/O device, fully compatible with the SFP port on the Switch.

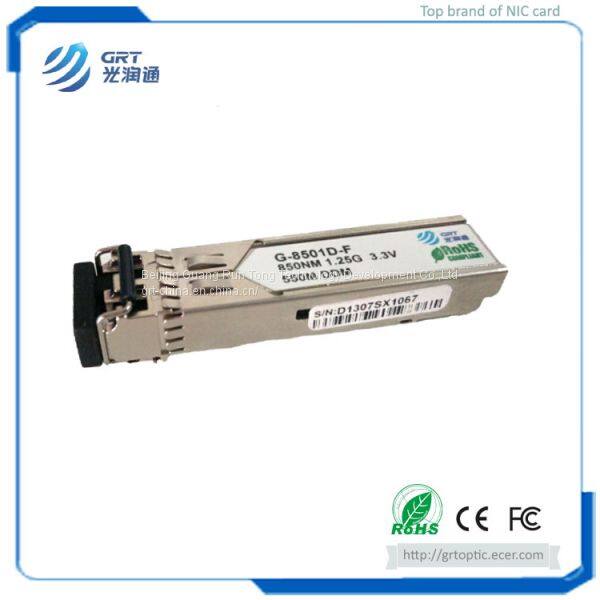

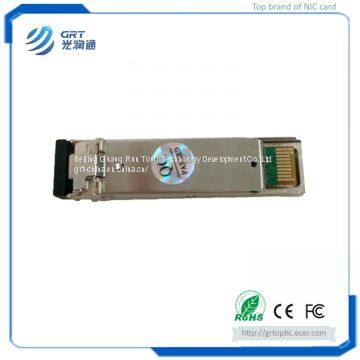

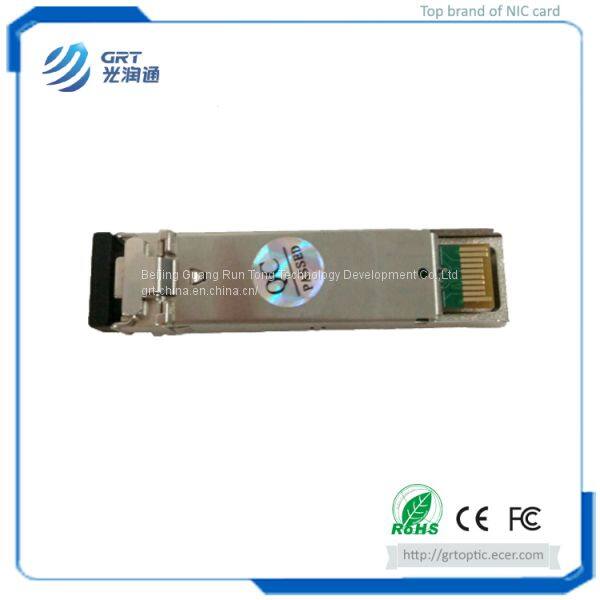

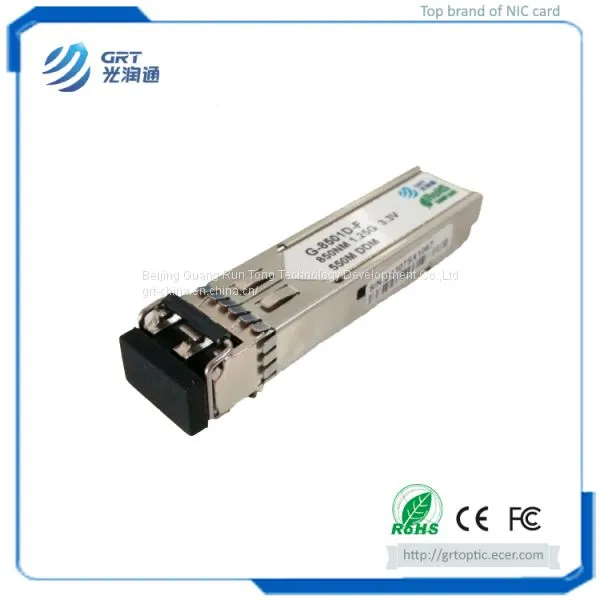

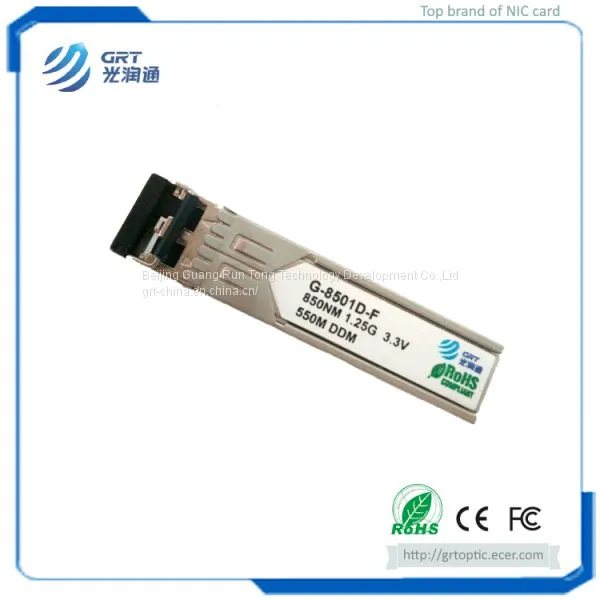

2. Product Show
3. Application
Optical transceivers can be applied for Gigabit Ethernet, Fiber channel, SDH/SONET/ATM, switch, routers, servers, Ethernet Switch and servers, storage, SONET(OC-192)/SDH(STM64) card, high speed storage area network (SAN), high speed data channel, PDH and other network transmission systems.
All of GRT's products are of open source, can be coded to be compatible with other brands'equipmentc, such as Intel, Cisco, Dell,HP,Brocade,Juniper,Arista, Mellanox,Huawei,H3C,ETC.
4. Absolute Maximum Ratings
| Parameter | Symbol | Minimum | Maximum | Units |
| Storage Temperature | Tst | -40 | +85 | °C |
| Supply Voltage | Vcc | 0 | +3.6 | V |
| Operating Relative Humidity | RH | 5 | 95 | % |
5. Normal Package & Notes on application
-- Please keep the transceiver modules from dust, moist and oil contamination.
-- Try to avoid the electrostatic.
-- Try to avoid direct contact with sensitive areas such as connecting finger.
6. Service
With self-owned brand and independent intellectual property rights, we can design and manufacture upon your requests, and offering you a 7*24h professional technical support.
OEM/ODM/OBM service are all available.
Talk to us, we’ll do our best to suit your needs. And welcome to visit us in Beijing!
