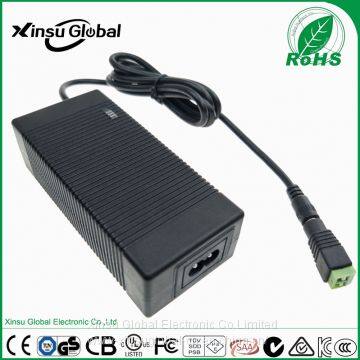

Lithium Battery Charger 29.4V 2A 3A 4A CB Motorcycle Battery Charger

Name: Lithium Battery Charger 29.4V 2A 3A 4A CB Motorcycle Battery Charger
Brand: Xinsu global
SKU: 157164646
Availability: InStock

US$ 19.5 - 20.5 MOQ: 200 Pieces

Key Specifications

Brand Name:

Xinsu global

Place of Origin:

China

Model Number:

XSG2944000

Xinsu Global Electronic Co.Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen &Hongkong

Delivery Detail:

20 days

Brand Name Xinsu global

Place of Origin China

Model Number XSG2944000

Type Electric

Use Standard Battery

product description

Product Electronics Parameter
Product name	China Factory lithium battery charger 29.4V 2A 3A 4A CB motorcycle battery charger
Model number	XSG2944000
AC input	Input Voltage range:	90~264Vac
	Reted input voltage:	100~240Vac
	InputFrequency Range:	47~62hz
	Input current max:	2.5A
	Inrush current:	35A Max/240V
	Efficiency:	>89%
	No load Input power
	Leakage current:
DC output	Max charging voltage:	29.4V
	Output voltage tolerance:	5%
	Max charging current:	0~4A
	Ripple and noise:
	Charging mode:	3- stage, CC,CV,trickle charging
	Cut off current when charged full	Optional
	LED indicator	Charging: Red, Charged full: Green
	Charging current when charged full
Protection	Over current protection	PASS
	Over voltage protection
	Short circuit protection
	Over Temp protection
	Anti-flow protection
Environment	Operating Temp:	0℃~+45℃
	Storage Temp:	-30℃~+70℃
	Relative Humidity:	10%~90%
	Vibration and shock	Meet MIL-STD-810D
Safety	Safety standard	EN60950,EN61558,EN60335
	EMC/EMI	Meet FCC CLASS B,EN55022 CLASS B.
	EMS	EN61000-4-2
		EN61000-4-3
		EN61000-4-4
		EN61000-4-5
	A Harmonic source	Pass
	HI-pot: Primary to Secondary	3KVAC,5mA,60s
	Drop Test	As per UL regulation
	Burning test	100%,4-5 hours
Life	MTBF	50000 hours
Life	Warranty	3 years
