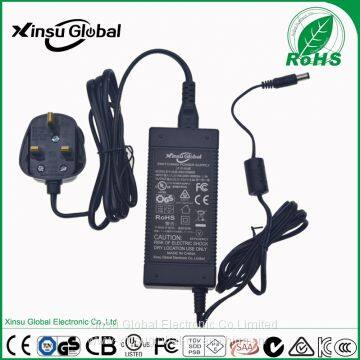

Help Center46.2V 2A 3A Lithium Ion Battery Charger With SAA UL GS Certificates for Golf Cart /segay /wheelchair
Related Products
-
Specializing in the Production 37.8V 1A 9S Li-ion Battery Charger for Camera Battery ChargerUS$ 5.5 - 6MOQ: 500 Pieces -
Smart USB Charger 4.2V 1A 2A 5V 1A 2A 3A UL GS Approved EMC LVDNegotiableMOQ: 500 Pieces
-
Beauty Apparatus Charger 8.4V 2A Battery Charger Medical StandardUS$ 3.5 - 4MOQ: 500 Pieces
-
CE EMC LVD SELV Battery Charger 12.6V 2A Wall PlugUS$ 3.7 - 4.2MOQ: 500 Pieces
-
8 Series Li-ion Battery Charger 33.6V 1.5A 2A 3A EN60335 EMC LVD GS UL CUL CSA RCM SAA PSE CCC ApprovedUS$ 9 - 10MOQ: 300 Pieces
product description
Product Electronics Parameter | ||
Product name |
46.2V 2A 3A lithium ion battery charger with SAA UL GS certificates for golf cart /segay /wheelchair |
|
Model number |
XSG4623000 |
|
AC input |
Input Voltage range: |
90~264Vac |
Reted input voltage: |
100~240Vac |
|
InputFrequency Range: |
47~62hz |
|
Input current max: |
3A |
|
Inrush current: |
35A Max/240V |
|
Efficiency: |
90% |
|
No load Input power |
||
Leakage current: |
||
DC output |
Max charging voltage: |
46.2V |
Output voltage tolerance: |
5% |
|
Max charging current: |
0~3A |
|
Ripple and noise: |
||
Charging mode: |
3- stage, CC,CV,trickle charging |
|
Cut off current when charged full |
Optional |
|
LED indicator |
Charging: Red, Charged full: Green |
|
Charging current when charged full |
||
Protection |
Over current protection |
PASS |
Over voltage protection | ||
Short circuit protection | ||
Over Temp protection | ||
Anti-flow protection | ||
Environment |
Operating Temp: |
0℃~+45℃ |
Storage Temp: |
-30℃~+70℃ |
|
Relative Humidity: |
10%~90% |
|
Vibration and shock |
Meet MIL-STD-810D |
|
Safety |
Safety standard |
EN60950,EN61558,EN60335 |
EMC/EMI |
Meet FCC CLASS B,EN55022 CLASS B. |
|
EMS |
EN61000-4-2 |
|
EN61000-4-3 | ||
EN61000-4-4 | ||
EN61000-4-5 | ||
A Harmonic source |
Pass |
|
HI-pot: Primary to Secondary |
3KVAC,5mA,60s |
|
Drop Test |
As per UL regulation |
|
Burning test |
100%,4-5 hours |
|
Life |
MTBF |
50000 hours |
Warranty |
3 years |
|
model list
| Part No | AC INPUT(V) | Power rate | Charging voltage | Charing current |
| W | V | mA | ||
| XSG4620300 | 100~240 | 13.9 | 46.2 | 300 |
| XSG4620400 | 100~240 | 18.5 | 46.2 | 400 |
| XSG4620500 | 100~240 | 23.1 | 46.2 | 500 |
| XSG4620600 | 100~240 | 27.7 | 46.2 | 600 |
| XSG4620700 | 100~240 | 32.3 | 46.2 | 700 |
| XSG4620800 | 100~240 | 37.0 | 46.2 | 800 |
| XSG4620900 | 100~240 | 41.6 | 46.2 | 900 |
| XSG4621000 | 100~240 | 46.2 | 46.2 | 1000 |
| XSG4621250 | 100~240 | 57.8 | 46.2 | 1250 |
| XSG4621450 | 100~240 | 67.0 | 46.2 | 1450 |
| XSG4621500 | 100~240 | 69.3 | 46.2 | 1500 |
| XSG4622000 | 100~240 | 92.4 | 46.2 | 2000 |
| XSG4622500 | 100~240 | 115.5 | 46.2 | 2500 |
| XSG4622700 | 100~240 | 124.7 | 46.2 | 2700 |
| XSG4623000 | 100~240 | 138.6 | 46.2 | 3000 |
| XSG4623500 | 100~240 | 161.7 | 46.2 | 3500 |
| XSG4624000 | 100~240 | 184.8 | 46.2 | 4000 |
| XSG4624500 | 100~240 | 207.9 | 46.2 | 4500 |
DC connecter
Certificates
