product description
Product Electronics Parameter | ||
Product name |

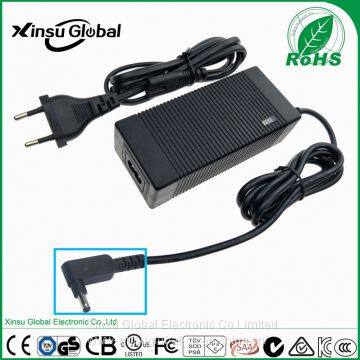

SMPS 58.8V 2A 3A battery charger 58.8V battery charger for 14s battery |
|
Model number |
XSG5882000 |
|
AC input |
Input Voltage range: |
90~264Vac |
Reted input voltage: |
100~240Vac |
|
InputFrequency Range: |
47~62hz |
|
Input current max: |
2.5A |
|
Inrush current: |
35A Max/240V |
|
Efficiency: |
>89% |
|
No load Input power |
||
Leakage current: |
||
DC output |
Max charging voltage: |
58.8V |
Output voltage tolerance: |
5% |
|
Max charging current: |
0~2A |
|
Ripple and noise: |
||
Charging mode: |
3- stage, CC,CV,trickle charging |
|
Cut off current when charged full |
Optional |
|
LED indicator |
Charging: Red, Charged full: Green |
|
Charging current when charged full |
||
Protection |
Over current protection |
PASS |
Over voltage protection | ||
Short circuit protection | ||
Over Temp protection | ||
Anti-flow protection | ||
Environment |
Operating Temp: |
0℃~+45℃ |
Storage Temp: |
-30℃~+70℃ |
|
Relative Humidity: |
10%~90% |
|
Vibration and shock |
Meet MIL-STD-810D |
|
Safety |
Safety standard |
EN60950,EN61558,EN60335 |
EMC/EMI |
Meet FCC CLASS B,EN55022 CLASS B. |
|
EMS |
EN61000-4-2 |
|
EN61000-4-3 | ||
EN61000-4-4 | ||
EN61000-4-5 | ||
A Harmonic source |
Pass |
|
HI-pot: Primary to Secondary |
3KVAC,5mA,60s |
|
Drop Test |
As per UL regulation |
|
Burning test |
100%,4-5 hours |
|
Life |
MTBF |
50000 hours |
Warranty |
3 years |
|
Model list
| Part No | AC INPUT(V) | Power rate | Charging voltage | Charing current |
| W | V | mA | ||
| XSG5880300 | 100~240 | 17.6 | 58.8 | 300 |
| XSG5880400 | 100~240 | 23.5 | 58.8 | 400 |
| XSG5880500 | 100~240 | 29.4 | 58.8 | 500 |
| XSG5880600 | 100~240 | 35.3 | 58.8 | 600 |
| XSG5880700 | 100~240 | 41.2 | 58.8 | 700 |
| XSG5880800 | 100~240 | 47.0 | 58.8 | 800 |
| XSG5880900 | 100~240 | 52.9 | 58.8 | 900 |
| XSG5881000 | 100~240 | 58.8 | 58.8 | 1000 |
| XSG5881100 | 100~240 | 64.7 | 58.8 | 1100 |
| XSG5881250 | 100~240 | 73.5 | 58.8 | 1250 |
| XSG5881500 | 100~240 | 88.2 | 58.8 | 1500 |
| XSG5881750 | 100~240 | 102.9 | 58.8 | 1750 |
| XSG5882000 | 100~240 | 117.6 | 58.8 | 2000 |
| XSG5882250 | 100~240 | 132.3 | 58.8 | 2250 |
| XSG5882500 | 100~240 | 147.0 | 58.8 | 2500 |
| XSG5882750 | 100-240 | 161.7 | 58.8 | 2750 |
| XSG5883000 | 100~240 | 176.4 | 58.8 | 3000 |
| XSG5883250 | 100~240 | 191.1 | 58.8 | 3250 |
| XSG5883500 | 100~240 | 205.8 | 58.8 | 3500 |
