Standard tube clamps / are the light duty series of hydraulic tube clamps according to DIN 3015, part 1:
1) Size range:
Standard tube clamps are fit for tube / pipe size O.D. 6mm -102mm.
2) Structure:

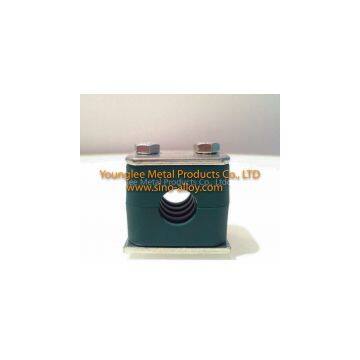

Standard stauff tube clamps are offered in weld-plate and channel-mounting designs. Assembly including cover plate, welded plate (elongated plate available), clamp bodies (2), high strength bolts (2).
There are Rail nut clamps available for channel mounting designs, assembly including: cover plate + clamp body(2)+ bolts(2) + rail nuts(2), installed on steel channels or rails.
Stacking Clamps available (max. 5 layers) with assembly including: Stackable Bolts + Clamp body + safety locking plates.
3) Materials:
Mounting Metal hardware(accessories): Galvanized Carbon steel(mild steel) / stainless steel(304/316)
Clamp Body: Polypropylene(PP) / Polyamide(PA) / Aluminum(AL)
4) Features:
The standard pipe clamps supplied by Younglee Metal Products Co., Ltd have below advantages:
Anti vibration
excellent corrosion resistance, excellent UV, weathering and chemical resistance - even under extreme conditions.
accuracy dimensions, strong strength
Low maintenance cost
Durable in use.
5) Application:
With featuring vibration-dampening design that prevents loosening of joints and welds, Standard tube clamps are suited for average loading and light vibration applications such as machine and tool applications, instrumentation tubing, hydraulic tubing, cables fastening, hoses fastening, and so on.
