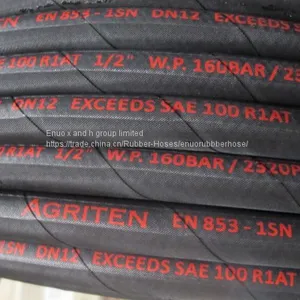

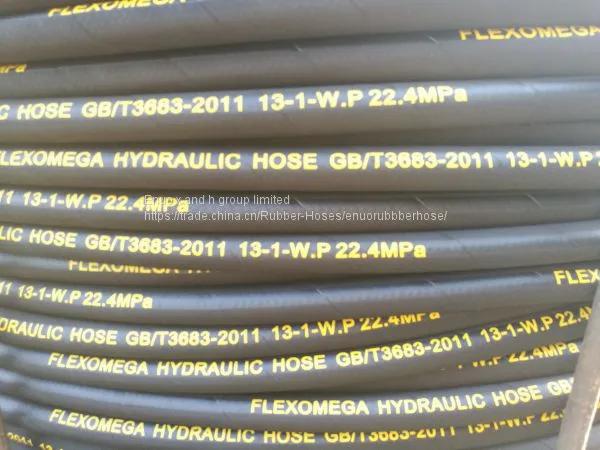

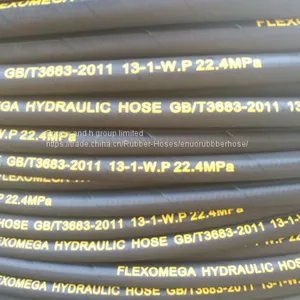

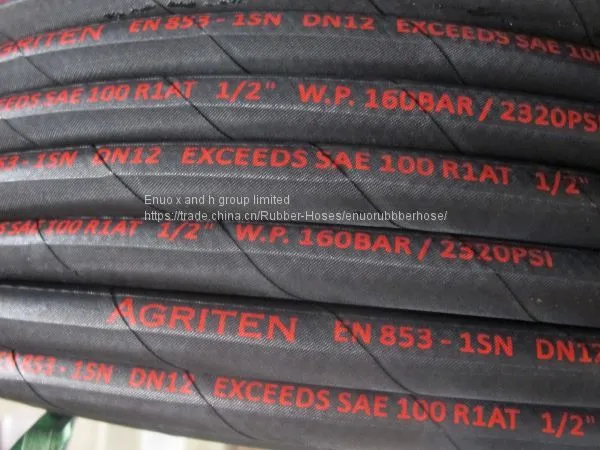

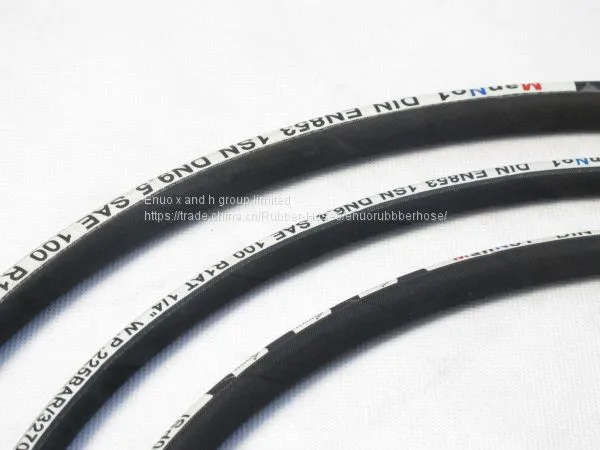

SAE Standard 100 R1 High Pressure Oil Resistant hydraulic hose
- 200000 Piece / Pieces per Month
- TAINJIN
- T/T L/C Credit Card PayPal Other Cash Escrow
- 15 days
Product Details
Place of Origin: | China |
Product Description
SAE Standard 100 R1 High Pressure Oil Resistant hydraulic hose
Product Description
Place of Origin | Hebei, China (Mainland) |
Brand Name | ENUO |
Model Number | SAE / DIN |
Material | NBR |
Reinforcement | High Tensile Steel Wire |
Surface | Smooth or Wrapped |
Certification | ISO9001, CCS, MA etc |
Color | Blue Yellow Green Black Red etc. |
Temperature | -40C~+100C |
Cover | Abrasion Weather Resistant Synthetic Rubber |
Keyword | hydraulic hose |
Product Application of SAE 100 R1 High Pressure 602 Wire Braid Excavator brand names hydraulic Rubber hose
Our products are popular in the demestic market, at the same time, we enjoyed a good reputation from the foreign customers.
This hoses are extensively used to mining, metallurgical, oil, project machinery, chemical, agriculture field. E.g. Mine hydraulic fluid, oil exploration, crane, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various machines tools.
SPECIFICATIONS FOR SAE 100 R1 AT / DIN EN 853 1SN | ||||||||
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Min.Bend Radius | Weight | Length |
5 | 3/16 | 9.5 | 12.5 | 25 | 100 | 89 | 0.19 | 50/100 |
6 | 1/4 | 11.5 | 14.1 | 22.5 | 90 | 102 | 0.21 | 50/100 |
8 | 5/16 | 12.7 | 15.7 | 21.5 | 85 | 114 | 0.24 | 50/100 |
10 | 3/8 | 15.1 | 18.1 | 18 | 72 | 127 | 0.33 | 50/100 |
13 | 1/2 | 18.3 | 21.5 | 16 | 64 | 178 | 0.41 | 50/100 |
16 | 5/8 | 21.4 | 24.7 | 13 | 52 | 203 | 0.45 | 50 |
19 | 3/4 | 25.4 | 28.6 | 10.5 | 42 | 241 | 0.58 | 50 |
25 | 1 | 33.3 | 36.6 | 8.8 | 35 | 305 | 0.88 | 50 |
32 | 1 1/4 | 40.5 | 44.8 | 6.3 | 25 | 419 | 1.23 | 20-40 |
38 | 1 1/2 | 46.8 | 52.0 | 5 | 20 | 508 | 1.51 | 20-40 |
51 | 2 | 60.2 | 65.9 | 4 | 16 | 635 | 1.97 | 20-40 |
SPECIFICATIONS FOR SAE 100 R2 AT/ DIN EN 853 2SN | ||||||||
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Min.Bend Radius | Weight | Length |
5 | 3/16 | 11.5 | 14.1 | 41.4 | 166 | 90 | 0.32 | 50/100 |
6 | 1/4 | 12.7 | 15.7 | 40.0 | 160 | 100 | 0.36 | 50/100 |
8 | 5/16 | 14.3 | 17.3 | 36.0 | 140 | 115 | 0.45 | 50/100 |
10 | 3/8 | 16.7 | 19.7 | 33.1 | 132 | 130 | 0.68 | 50/100 |
13 | 1/2 | 19.8 | 23.1 | 27.6 | 110 | 180 | 0.80 | 50/100 |
16 | 5/8 | 23.0 | 26.3 | 25 | 100 | 200 | 0.94 | 50 |
19 | 3/4 | 27.0 | 30.2 | 21.5 | 86 | 240 | 1.20 | 50 |
25 | 1 | 34.9 | 38.9 | 16.5 | 66 | 300 | 1.35 | 50 |
32 | 1 1/4 | 44.5 | 49.6 | 12.5 | 50 | 420 | 2.15 | 20-40 |
38 | 1 1/2 | 50.8 | 56.0 | 9.0 | 36 | 500 | 2.65 | 20-40 |
51 | 2 | 63.5 | 68.6 | 8.0 | 32 | 630 | 3.42 | 20-40 |
Main Features OF SAE 100 R1 High Pressure 3 Inch 602 Wire Braid Excavator brand names hydraulic Rubber hose
Tube: oil resistant synthetic rubber
Reinforcement: one high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperanture range: -40°c to +100°c
More contact
Company : | ENUO X AND H GROUP LIMITED | |||||
Contact person: | ADA WANG | |||||
Telephone number: | 0086-17710253197 | |||||
Email: | ada910926@gmail.com |
