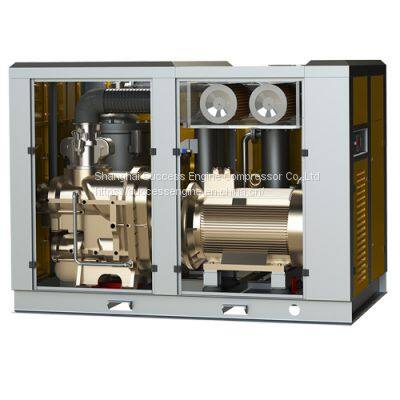

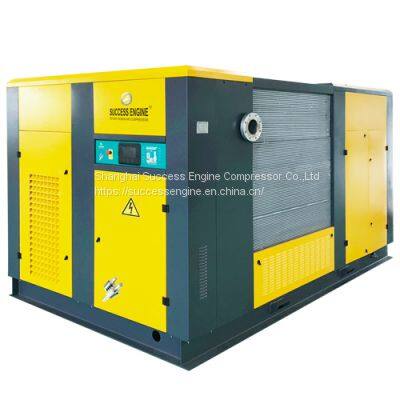

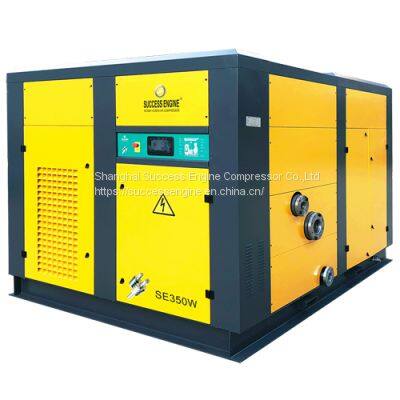

Two-stage Oil-lubricated Air Compressor

Two-stage Oil-lubricated Air Compressor thumbnail-1
Two-stage Oil-lubricated Air Compressor thumbnail-2
Two-stage Oil-lubricated Air Compressor thumbnail-3
Two-stage Oil-lubricated Air Compressor thumbnail-4
Two-stage Oil-lubricated Air Compressor thumbnail-5
Two-stage Oil-lubricated Air Compressor photo-1
Two-stage Oil-lubricated Air Compressor photo-2
Two-stage Oil-lubricated Air Compressor photo-3
Two-stage Oil-lubricated Air Compressor photo-4
Two-stage Oil-lubricated Air Compressor photo-5
US$ 2000 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SUCCESS ENGINE
Place of Origin:
China
Model Number:
SE
Contact Supplier Request Quote Chat Now
Shanghai Success Engine Compressor Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China Port
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUCCESS ENGINE
Place of Origin China
Model Number SE
Certification CE, CQC, ASME, UL, CCS
Type Rotary
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 Year
Condition New
Voltage AC Power 380V/3P/50HZ, can be customied.
Lubrication Style Lubricated
Power Source AC Power
Configuration Stationary

Energy-saving Screw Air Compressor
F.A.D: 3.0~100m3/min    Pressure: 2 ~ 35bar
SUCCESS ENGINE energy-saving screw air compressor has two core patents - large-diameter rotor profile design and high-efficiency centrifugal cooling system, which greatly improves the compression and volumetric efficiency. The product has been tested by third-party, the volume flow and input power meet the requirements of the energy-saving evaluation value, and it is rated as an energy-saving product.
The energy-saving screw air compressor adopts high-efficiency special motor with high-quality bearings. According to the customer's power supply conditions, it can choose to match various motors of different voltage & frequency, permanent magnet type, explosion-proof, dust-proof, etc.
With ingenious design, high-standard configuration, and excellent value for money, SUCCESS ENGINE is proud of its quality. Please continue to browse the detailed introduction, we believe that you will have your own choice!

energy saving screw air compressor


Core Technology Innovation

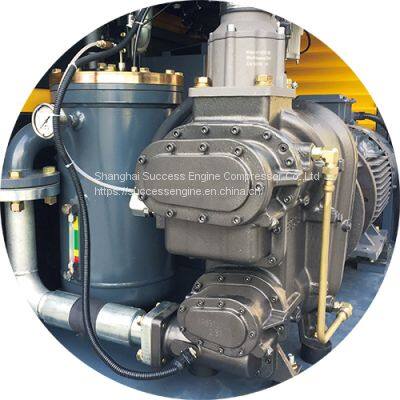

High-efficiency Compressor Airend
(Patent number: CN201320374188.7)

airend for energy saving screw air compressor

Advanced Screw Rotor Processing Equipment

Advanced Screw Rotor Processing Equipment


Strict Rotor Dynamic Balance Test

Strict Rotor Dynamic Balance Test


Strict Accuracy Inspection and Hydraulic Test of Compressor Components

Strict Accuracy Inspection and Hydraulic Test of Compressor Components


High Efficiency Centrifugal Cooling System
(Patent number: CN201320374179.8)

High Efficient Water Cooling System

High Efficiency Centrifugal Cooling System

High Efficient Water Cooling System

High-efficiency Electric Motor
Use special high output efficiency motor with high-quality bearings according to the site power supply and process conditions, and available for different voltage, frequency, protection level, insulation level, service factor, VFD, explosion-proof and other required types.


Stable and Efficient Transmission Connection Design
SUCCESS ENGINE adopts a high-strength intermediate coupling combined with a high-load elastic coupling device. The coupling bracket plays a stable role, and the elastic coupling plays a role in transmitting rotational torque, compensating axis offset, absorbing vibration and reduces loading impact. This structure has the advantage of high transfer efficiency, noise reduction and easy maintenance.

Stable and Efficient Transmission Connection Design


Ingenious System Design and Strict Piping Connection
SUCCESS ENGINE pays special attention to piping system design, sealing effect and pressure difference of each part, and has carried out a special optimization design for the pressure-bearing parts. Flange welding and non-destructive evaluation (NDE) has been used for sealing connections as much as possible. The threaded connection adopts SAE joints by standard of AAMA to ensure the sealing and durability of the system pipeline.

Ingenious System Design and Strict Piping Connection


Efficient Oil & Air Separation Device and Lubricating Medium
Double-layer pleated oil-air separation element and rough oil & gas separation tank, ensuring the best oil and gas separation effect and the lowest system pressure difference.
SUCCESS ENGINE special cooling oil- MSDS (Material Safety Data) complies with the ISO 14001 environmental protection standard, high temperature resistance and anti-oxidation properties  extend the life of core parts.

Efficient Oil & Air Separation Device and Lubricating Medium


Ingenious Design, Reliable as it Seems
High-quality parts configuration, superior system structure design and ingenious manufacturing requirements make SUCCESS ENGINE screw air compressor living up to its reputation, reliable and durable.

Ingenious Design, Reliable as it Seems


Intelligent Control  (Standard Configuration)
Adopt advanced intelligent control system with complete functions of automatic protection & alarm, remote control, multiple joint control, history records.
Real-time running data; Monitor loading/unloading characteristics; Preset various parameter values; History records checking and display maintenance warning.
Equipped with one 485 interface, to realize two communication control modes: general remote and linkage control. The user can set the linked control of multiple units and manually set the unit to start/stop and time switching.

Intelligent Control-Standard Configuration-


Frequency Conversion Control / Soft Start Control (Selective Configuration)
Low-voltage unit: built-in structure, with optional of VFD control and dual-purpose controls (Standard + VFD). High-voltage unit: divided structure, separated external high-voltage frequency conversion cabinet.
Compressor atomically adjusts the frequency and speed according to the actual air consumption change to achieve effective energy savings, also with the characteristics of stable air pressure, startup without impact.

Control Systems


Energy Efficiency Test
(Factory inspection, praise for Grade-1 energy efficiency)
SUCCESS ENGINE has its own energy efficiency lab. Each air compressor has undergone strict full performance testing, only when it meets the requirements of various indicators, can be labeled as qualified.
Perfect optimization of the SUCCESS ENGINE energy-saving air compressor system is a model for improving the two major needs of "energy-efficiency ratio" and "quality reliability" in the field of civil energy and power, leading the new generation of gas source power.


Energy Efficiency Test-1


Ethernet Central Control System  (Selective Configuration)
The centralized compressor control system communicates with the monitoring station through the industrial Ethernet ring network, performs remote monitoring and intelligent control of the equipment in the air compressor room, and realizes automatic unattended operation.
Configuration: linkage control PLC system, control cabinet, UPS, wireless communication equipment, video monitoring system, voice broadcasting system, computer operation station, display, printer, work table.

Ethernet Central Control System


High Power Energy Saving Air Compressor Loading and Delivering
SUCCESS ENGINE energy-saving screw air compressor, relying on mature technical advantages, military nuclear power quality assurance system and marketing and after-sales outlets all over the country, the products are continuously applied in high-end industries all over the country.

Air Compressor Loading and Delivering


Typical Air Compressor Station

Typical Air Compressor Station


User Installation Scenarios

User Installation Scenarios


Factory Assembly Area

Factory Assembly Area


Two-stage Energy-saving Screw Air Compressor



Model Power
kW		 Pressure
Bar		 Air Flow
m3/min		 Outlet
Connection		 Weight
KG		 Dimension
L*W*H mm
SE22AE-7 22 7 4.2 Rp 1 1/4 680 1470*860*1230
SE22AE-10 10 3.8
SE22AE-12.5 12.5 3.2
SE37AE-7 37 7 7.1 Rp 1 1/2 920 1610*1000*1470
SE37AE-10 10 6.6
SE37AE-12.5 12.5 5.8
SE55AE-7 55 7 11.6 Rp 2 1620 2100*1200*1680
SE55AE-10 10 11.2
SE55AE-12.5 12.5 9.1
SE75AE-7 75 7 15.8 Rp 2 1980 2100*1200*1680
SE75AE-10 10 14.2
SE75AE-12.5 12.5 11.6
SE90AE-7 90 7 20.5 DN65 2600 2500*1800*1800
SE90AE-10 10 17.6
SE90AE-12.5 12.5 14.2










Model Power
kW		 Pressure
Bar		 Air Flow
m3/min		 Outlet
Connection		 Weight
KG		 Dimension
L*W*H mm		 Fan Motor Power
kW		 Water Amount
m3/h
SE110AE-7 110 7 24.5 DN65 3300 2500*1800*1800 3 10
SE110AE-10 10 20
SE110AE-12.5 12.5 17.2
SE132AE-7 132 7 27.6 DN65 3550 2500*1800*1800 3 12
SE132AE-10 10 23.5
SE132AE-12.5 12.5 19.6
SE160AE-7 160 7 33.5 DN80 4000 3000*1800*1800 3.5 15
SE160AE-10 10 29
SE160AE-12.5 12.5 23.2
SE185AE-7 185 7 39.5 DN80 4200 3200*2200*2300 5.5 15
SE185AE-10 10 32.5
SE185AE-12.5 12.5 27.8
SE220AE-7 220 7 46.6 DN100 6500 3200*2200*2300 7.5 20
SE220AE-10 10 41.5
SE220AE-12.5 12.5 38.2
SE250AE-7 250 7 52 DN125 7200 3200*2200*2300 7.5 25
SE250AE-10 10 45.5
SE250AE-12.5 12.5 40.2
SE280AE-7 280 7 60 DN125 9000 3200*2200*2300 7.5 30
SE280AE-10 10 51
SE280AE-12.5 12.5 43.5
SE315AE-7 315 7 65 DN125 9200 5060*2350*2400 11 30
SE315AE-10 10 59
SE315AE-12.5 12.5 53
SE355AE-7 355 7 73.2 DN200 9500 5060*2350*2400 15 35
SE380AE-8 380 8 72.9
SE400AE-10 400 10 72.6
SE400AE-7 400 7 82.5 DN200 10000 5060*2350*2400 15 45
SE430AE-8 430 8 82.2
SE450AE-10 450 10 81.6
SE500AE-7 500 7 102 DN200 10500 5060*2350*2400
55
SE540AE-8 540 8 101.6
SE570AE-10 570 10 101.2

The volumetric flow parameter is the maximum volumetric flow that this compressor can generate under the specified working conditions (JB/T6430 standard requirements: suction absolute pressure 0.1MPa/suction temperature 20 ℃/suction relative humidity 0).
Specifications are subject to change by SUCCESS ENGINE without notice and the detailed information is subject to Pre-sales consulting.
