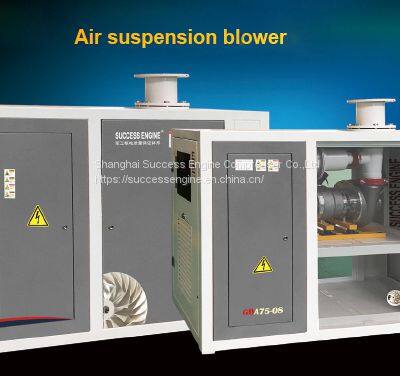

SUCCESS ENGINE Air Suspension Blower This type centrifugal blower adopts main core technologies such as air suspension bearing, permanent magnet ultra-high-speed motor and high-precision aviation-grade impeller. The unit consists of high-speed motor integrated impeller, soundproof cover, discharge taper pipe, vent valve, muffler, frequency converter, PCL controller and large-screen LCD touch screen. The suspension bearing is different from the traditional ball bearing. There is no physical contact point between the shaft and bearing during operation, no need for lubricating oil, high efficiency, low loss, clean exhaust air, stable and durable, the number of starting can reach 100,000 times. It is an energy-saving tool in electronics, medicine, food, cement, water treatment and other industries. | |
|
| |
|

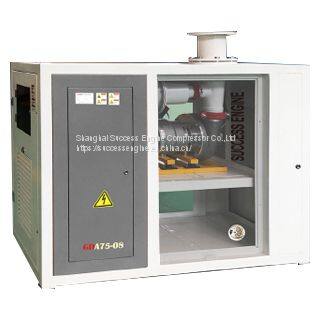

Air Suspension Blower F.A.D: 20~400 m3/min Pressure: 40~120 kPa. This type blower adopts the most advanced three-dimensional flow turbo technology, the impeller is made of high-strength aviation aluminum alloy, and the precision can reach 0.001mm, ensuring the high operating efficiency. Air bearing technology, 100% oil-free suspension bearing, no mechanical wear, the service life can reach semi-permanent. High efficiency: Compared with toots blower, the efficiency is increased by 30-40% No pollution: no lubrication required, the discharge air is clean and free of oil and pollution Low noise: no friction, low operating noise, meets environmental protection requirements Less emission: Taking 100kW as an example, one unit can reduce carbon dioxide emissions by about 250 tons per year. | |
|
Aviation Design Concept-Impeller Using finite element analysis software of NASTRAN, ANSYS, Abaqus, etc., to carry out one-dimensional geometric and thermal design, two-dimensional flow design, three-dimensional blade design and strength check of impellers and blades. Through simulation, it can be judged whether the impeller design meets the design standards of aero-engine, and the service life of the impeller can be predicted. Create high-efficiency aviation-grade impellers with the best "power energy efficiency ratio". | |
|
| |
|
Impeller Dynamic Balance Test Using advanced dynamic balance testing equipment, according to the requirements of "SUCCESS ENGINE Dynamic Balance Test Procedure", a strict dynamic balance testing is carried out on each impeller and shaft assembly to ensure the balance and stability during high-speed operation. | |
| |
|
Features of High-speed Permanent Magnet Motor The high-speed motor can withstand low temperature storage test of -20°C for 24 hours and high temperature storage test of 55°C for 48 hours. 2pc PT100 temperature sensor and 1pc PTC thermal protector is embedded in the motor stator. The motor cooling adopts 2-stage cooling structure system, cooling effect is more stable. The first stage is air-cooled inside the motor, and the second stage is effectively cooled in the magnetic suspension bearing assembly. The structure is simple, compact and stable. | |
| |
|
Advanced Air Suspension Bearing Technology Air suspension bearings mainly include radial bearings and thrust bearings. Before starting, there is physical contact between the rotary shaft and the bearing, and the rotary shaft is in a suspended state during operation, there is no physical contact point, so there is no need for lubricating oil, the energy loss is extremely low, and efficiency is high, suitable for a variety of working environments. This technology can be applied to high-power & high-speed machinery up to 100,000 rpm. After rigorous testing, the number of starts of the bearing can reach more than 20,000 times, and the service life is more than 100,000 hours, which fully meets the design requirements. | |
| |
|
Advanced Large Screen PLC Monitoring System Large LCD display control screen, real-time monitoring of equipment operation, shutdown information, perfectly combined the surge control and energy saving optimization, complete automatic alarm & protection functions, advanced and mature control system, guarantee the compressor system stability and ease of operation. Real remote control can be realized through network, wireless network mobile device, telephone network and so on. | |
| |
|
Strict Production and Manufacturing Process Design, manufacture and assembly follow strict aviation standards and military nuclear quality assurance program requirements to effectively ensure the quality and operational reliability of equipment. | |
| |
| Test Evaluation and Analysis | |
| |
| Production Circulation Area | |
| |
| User Installation Scenario | |
| |
| SUCCESS ENGINE Production Workshop | |
| |
| Factory Environment | |
| |
| Model | Power kW |
Pressure Bar |
Air Flow m3/min |
Outlet connection |
Dimension L*W*H mm |
Weight KG |
| GDA22-06 | 22 | 60 | 20 | DN150 | 1580*700*1300 | 525 |
| GDA22-08 | 80 | 17 | ||||
| GDA37-06 | 37 | 60 | 35 | DN150 | 1580*700*1300 | 535 |
| GDA37-08 | 80 | 28 | ||||
| GDA55-04 | 55 | 40 | 74 | DN200 | 1760*855*1550 | 750 |
| GDA55-06 | 60 | 50 | ||||
| GDA55-08 | 80 | 41 | ||||
| GDA55-10 | 100 | 33 | ||||
| GDA75-04 | 75 | 40 | 93 | DN300 | 1760*855*1550 | 800 |
| GDA75-06 | 60 | 65 | DN200 | |||
| GDA75-08 | 80 | 53 | ||||
| GDA75-10 | 90 | 45 | ||||
| GDA95-06 | 95 | 60 | 81 | DN250 | 1960*1020*1700 | 1020 |
| GDA95-08 | 80 | 67 | ||||
| GDA110-06 | 110 | 60 | 105 | DN300 | 2000*1020*1710 | 1050 |
| GDA110-08 | 80 | 85 | DN250 | |||
| GDA110-10 | 100 | 65 | ||||
| GDA150-06 | 150 | 60 | 136 | DN250 | 2000*1020*1710 | 1090 |
| GDA150-08 | 80 | 108 | ||||
| GDA150-10 | 100 | 86 | DN250 | |||
| GDA200-06 | 200 | 60 | 158 | DN300 | 2000*1020*1710 | 1130 |
| GDA200-08 | 80 | 132 | ||||
| GDA200-10 | 100 | 103 | ||||
| GDA225-06 | 225 | 60 | 208 | DN400 | 2360*1300*2050 | 1590 |
| GDA225-08 | 80 | 163 | ||||
| GDA225-10 | 100 | 132 | ||||
| GDA300-06 | 300 | 60 | 268 | DN500 | 3020*1620*2050 | 2020 |
| GDA300-08 | 80 | 213 | DN400 | |||
| GDA300-10 | 100 | 170 | ||||
| GDA375-06 | 375 | 60 | 318 | DN500 | 3220*1760*2090 | 2050 |
| GDA375-08 | 80 | 258 | ||||
| GDA375-10 | 100 | 208 | DN400 | |||
| GDA450-06 | 450 | 60 | 418 | DN600 | 3520*1960*2000 | 2550 |
| GDA450-08 | 80 | 320 | ||||
| GDA450-10 | 100 | 258 | DN500 | |||
| The volumetric flow parameter is the maximum volumetric flow that this compressor can generate under the specified working conditions (JB/T6430 standard requirements: suction absolute pressure 0.1MPa/suction temperature 20 ℃/suction relative humidity 0). Specifications are subject to change by SUCCESS ENGINE without notice and the detailed information is subject to Pre-sales consulting. | ||||||
