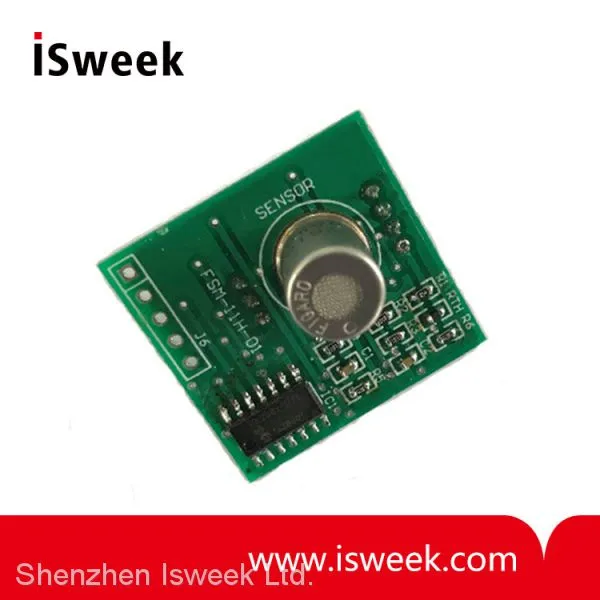

FSM-BP-01 Pre-Calibrated Combustible Gas Sensor Module
US$ 30 - 60
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Figaro
Place of Origin:
Japan
Model Number:
FSM-BP-01
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
FSM-T-04A Pre-Calibrated Combustible Gas Sensor ModuleUS$ 30 - 60MOQ: 1 Piece -
FSM-A-003 Indoor Air Quality ModuleUS$ 30 - 60MOQ: 1 Piece
-
FSM-A-002 Air Quality Monitor ModuleUS$ 30 - 60MOQ: 1 Piece
-
FECS40-1000 Carbon Monoxide (CO) SensorNegotiableMOQ: 1 Piece
-
FECS44-100/FECS44-200 Low Concentration Ammonia (NH3) SensorNegotiableMOQ: 1 Piece
Brand Name
Figaro
Place of Origin
Japan
Model Number
FSM-BP-01
Usage
Gas Sensor
Theory
Other, Semiconductor Gas Sensor
Output
Analog Sensor
-
FSM-BP-01Combustible gas sensor Module Features:
* PWM, USART digital output proportional to gas concentration
* Maintain Free
* Compact size, low cost
* Meets RoHS requirement
FSM-BP-01Combustible Gas sensor Module Applications:
* Detect flammable gas leakage
* Flammable gas leakage Detector
* Industrial detector
FSM-BP-01 is pre-calibrated module for LPG gas alarm which applies TGS2610-D00 sensor together, it features durability and stability. The module outputs PWM signal which is proportional to LPG gas concentration (The module has a memory which is stored with factory calibration data), also is capable of detecting sensor wire breakage and short. The module can operate at wide temperature from -10~70°C.
Furthermore, the unit is less sensitivity to VOCs gas, it immunes poison by silicon compounds, it suits to work at rugged environment.
FSM-BP-01Combustible Gas Sensor Module Output characters:
The module outputs PWM and USART signal which is proportional to LPG gas
concentration
1. PWM output(Frequency is 2KHz),
Vo=V*DUTY2( Vo is output voltage, V is input voltage, DUTY is duty cycle)
2. USART output
The module output data every 100ms, the data format:
FSM-BP-01Combustible Gas Sensor Module Specification:
Product name |
Combustible gas sensor module |
|
Model No. |
FSM-BP-01 |
|
Gas sensor |
TGS2610-D00(Semiconductor) |
|
Detection range |
0 ~ 4,000ppm H2 (also can detect methane, iso-butane, and propane) |
|
Error |
±300ppm |
|
Output voltage (Vconc) |
PWM(2KHz) |
|
Trouble |
Trouble:H, Normal:L |
|
Response time (T90) |
≤30S |
|
Operating conditions |
-10˚C ~+70˚C, 20~95%RH(No condensing) |
|
Storage conditions |
-10˚C ~+80˚C, 20~95%RH |
|
Input voltage (VIN) |
5.0±0.2V DC |
|
Power consumption |
≤1.5W |
|
Weight |
15g or less |
|
Dimensions |
26*27mm |
|
Standard test conditions |
Ambient conditions |
20±2˚C, 65±5%RH |
Circuit conditions |
5.0±0.2V |
|
Conditioning period prior to test |
≥10 minutes |
|
